4.2
Power supply filtering
As mentioned in Section 3 Pin and signal description, the power supply of the circuit must be filtered using the
circuit shown in the figure below.

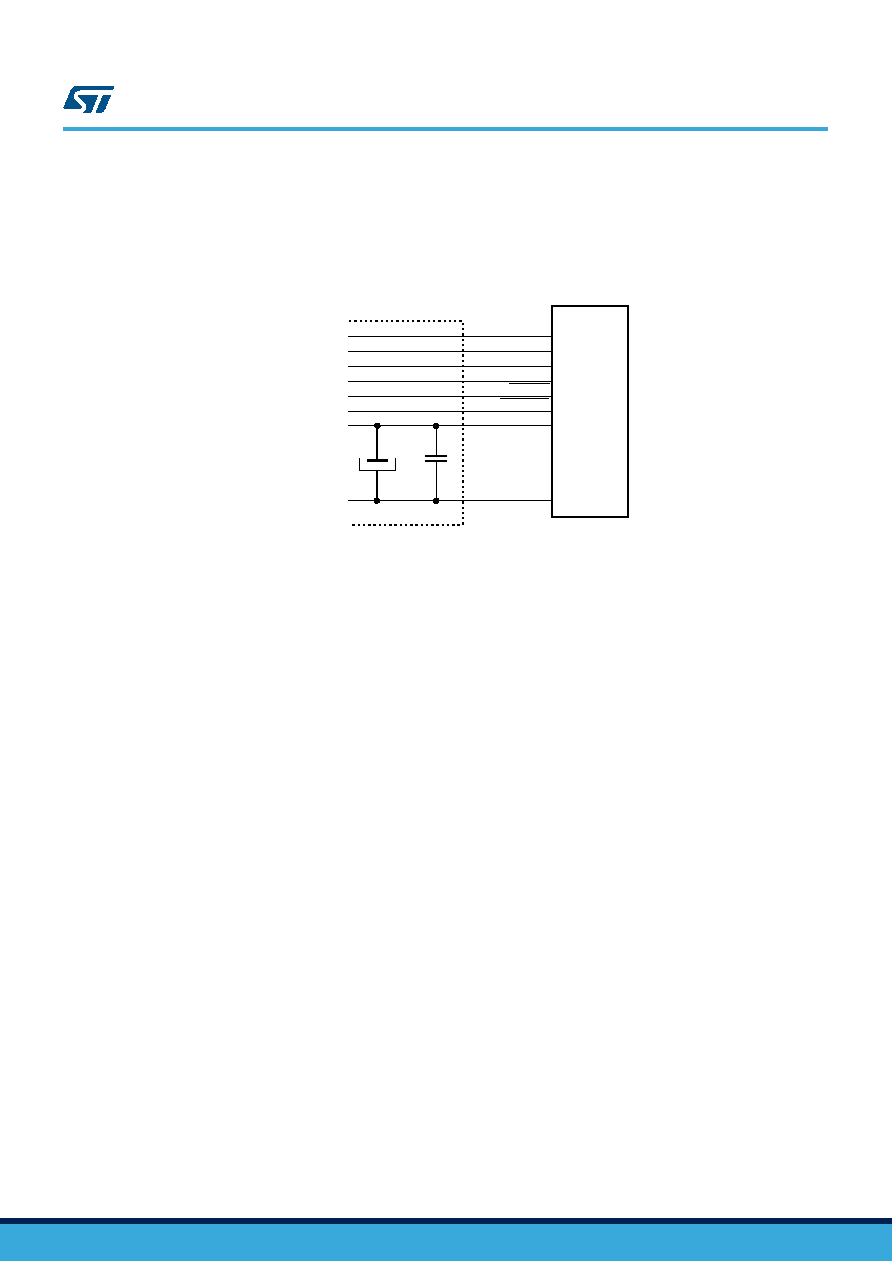

Figure 4. Mandatory filtering capacitors on VPS
TPM
Host device
SPI_MOSI
SPI_RST
VPS
GND
100 nF
10 µF
+
-
SPI_MISO
SPI_CLK
SPI_CS
SPI_PIRQ
1.
10 µF and 100 nF are recommended values. The minimum required capacitor value is 2.1 µF (2 µF in
parallel with 100 nF).
ST33TPHF2ESPI
Power supply filtering
DB2716 - Rev 4
page 8/26
