–10

10M

100M

10G

FREQUENCY (Hz)

VPOS = 3.3V, LOW POWER MODE

VPOS = 5V, HIGH PERFORMANCE MODE

VOLTAGE GAIN = 2dB

VOLTAGE GAIN = 32dB

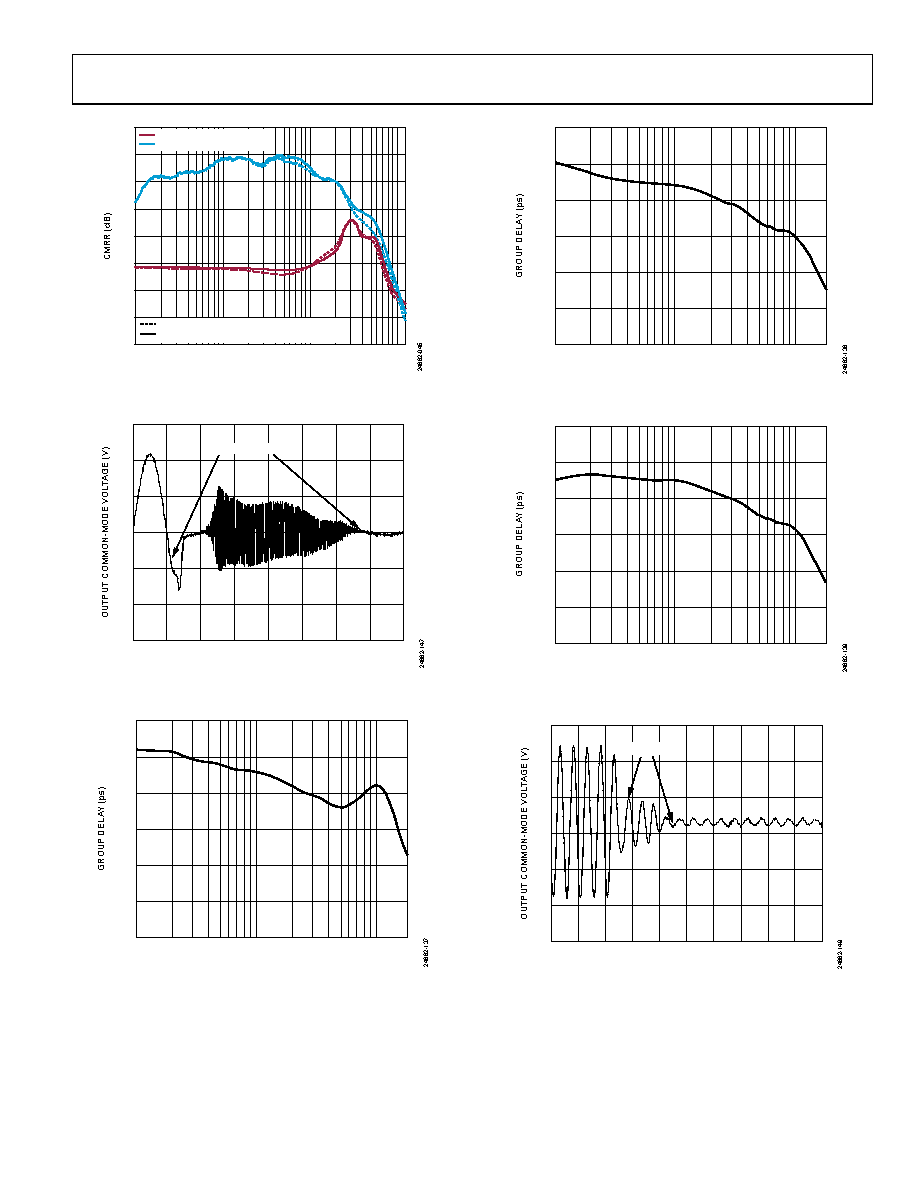

Figure 48. CMRR vs. Frequency at Voltage Gain = 2 dB and Voltage Gain =

32 dB, 5 V High Performance Mode and 3.3 V Low Power Mode

1.0

1.5

2.0

2.5

3.0

3.5

4.0

–10

–5

SETTLING TIME (ns)

21ns TO 28ns

Figure 49. Output Common-Mode Voltage vs. Settling Time,

5 V High Performance Mode, Maximum Gain Transition

400

350

300

250

200

150

100

10M

100M

FREQUENCY (Hz)

Figure 50. Group Delay vs. Frequency at Maximum Gain,

3.3 V Low Power Mode

10M

100M

400

350

300

250

200

150

100

FREQUENCY (Hz)

Figure 51. Group Delay vs. Frequency at Maximum Gain,

5 V High Performance Mode

10M

100M

–10

–20

–30

–40

FREQUENCY (Hz)

Figure 52. Group Delay vs. Frequency at Maximum Gain,

5 V Low Power Mode

0.5

1.0

1.5

2.0

2.5

3.0

–5

–3

–1

3579

SETTLING TIME (ns)

3ns TO 4ns

Figure 53. Output Common-Mode Voltage vs. Settling Time,

3.3 V Low Power Mode, Maximum Gain Transition
