CHAPTER 3: ELECTRICAL SPECIFICATIONS

Power Sequencing

It is intended that the VDD33/VDDT/VDDF and VDD rails are sequenced to their final value

together for most applications. VDD33, VDDT and VDDF must be above VDD at all times.

VDD must be brought to its final value within 100ms of sequencing on VDD33, VDDT and

VDDF.

It is also required that SCLK, SCLKX, TCLKI, PCLK, MDCLK, FTXCLK, and FRXCLK be running

or begin running during power sequencing to propagate reset inside the C-5e NP. Figure 9

indicates the relationship between the clocks and PRSTX. There is no requirement that the

asserting and deasserting edges of PRSTX be synchronous to the clocks. Reset must be

asserted within 100

µs of power initiation. Typically, reset is held low during power

initiation.

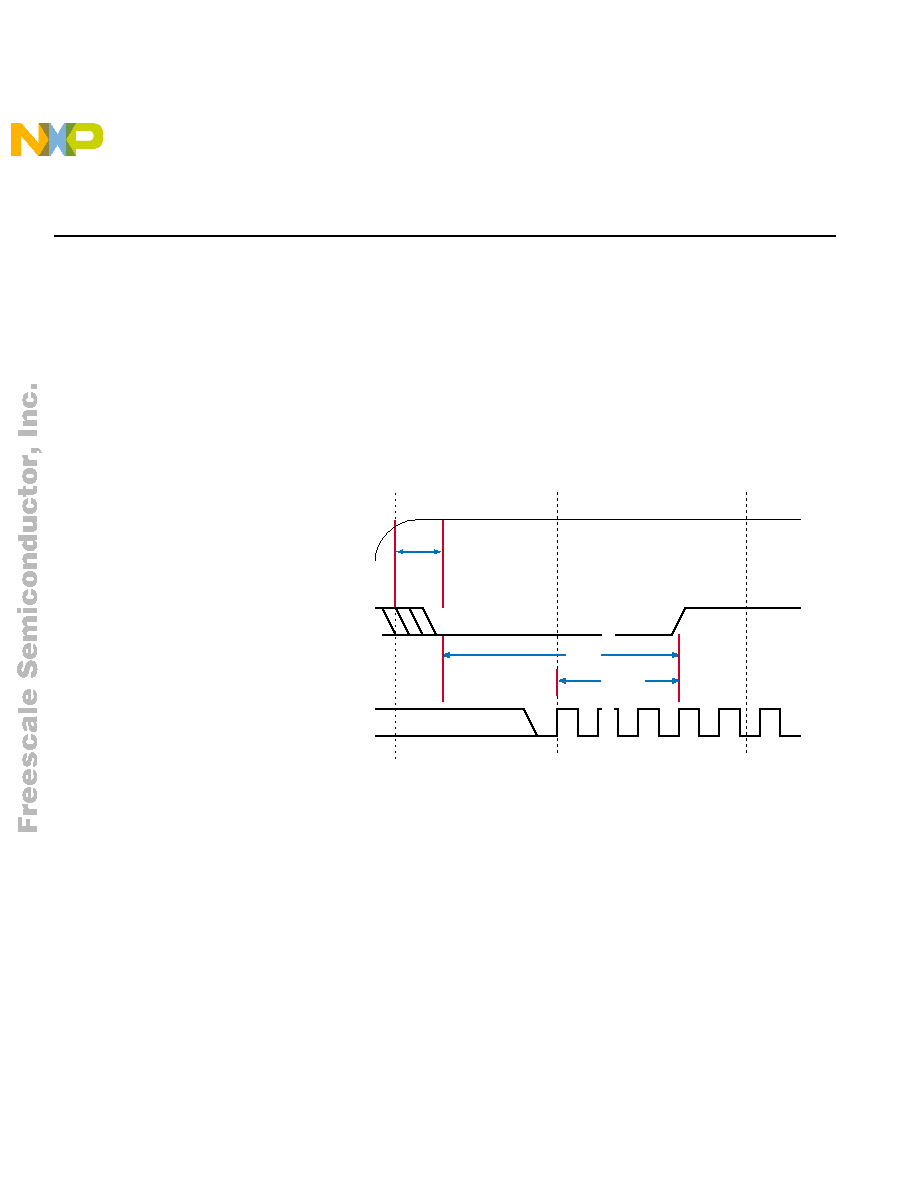

Figure 9 Bringup Clock Timing Diagram

TCLKI, PCLK,

SCLK, SCLKX,

MDCLK, FTXCLK,

FRXCLK

PRSTX

³1ms

³100

µs

(

)

≤100

µs

VDD, VDD33,

VDDT, VDDF
