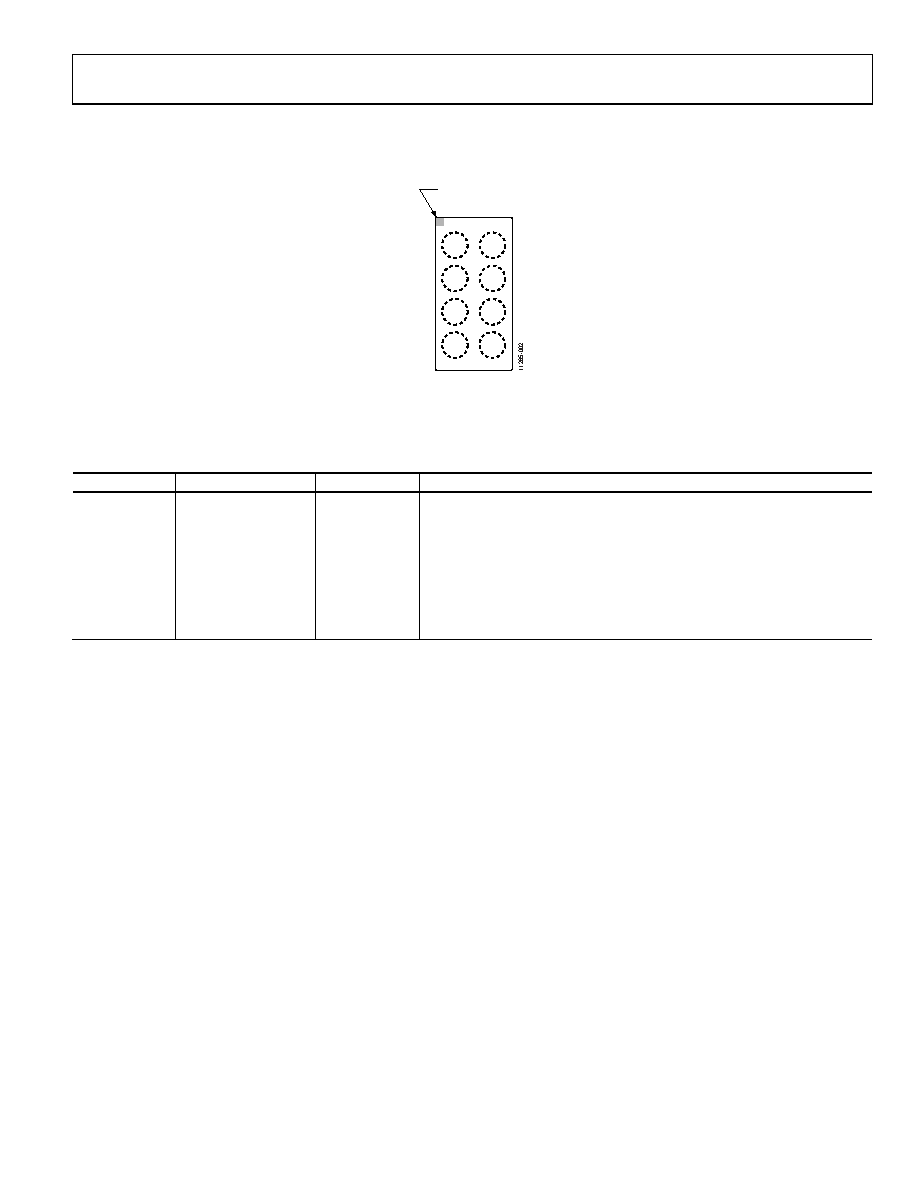

background image
Data Sheet
ADAU7002
Rev. C | Page 5 of 16
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
TOP VIEW
(BALL SIDE DOWN)
BALL A1
CORNER
A
PDM_
DAT
PDM_
CLK
SDATA
BCLK
GND
LRCLK
IOVDD
CONFIG
2
1
B
C
D
Figure 2. Pin Configuration (Top Side View)
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Type
Description
A1
PDM_DAT
Input
PDM Data Input
A2
PDM_CLK
Output
PDM Clock Output
B1
SDATA
Output
Serial Data Output for I2S/TDM
B2
BCLK
Input
Bit Clock for I2S/TDM
C1
GND
Ground
Ground
C2
LRCLK
Input
Left/Right Clock for I2S/Frame Sync for TDM
D1
IOVDD
Supply
Input/Output and Digital Supply
D2
CONFIG
Input
Configuration Pin
