ADAU7002
Data Sheet
Rev. C | Page 6 of 16
TYPICAL PERFORMANCE CHARACTERISTICS
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
–110
–120
–130
–140
–150
–160
–170
–180
–190
FREQUENCY (Hz)
20
100
1k
10k
20k
CH1
CH2

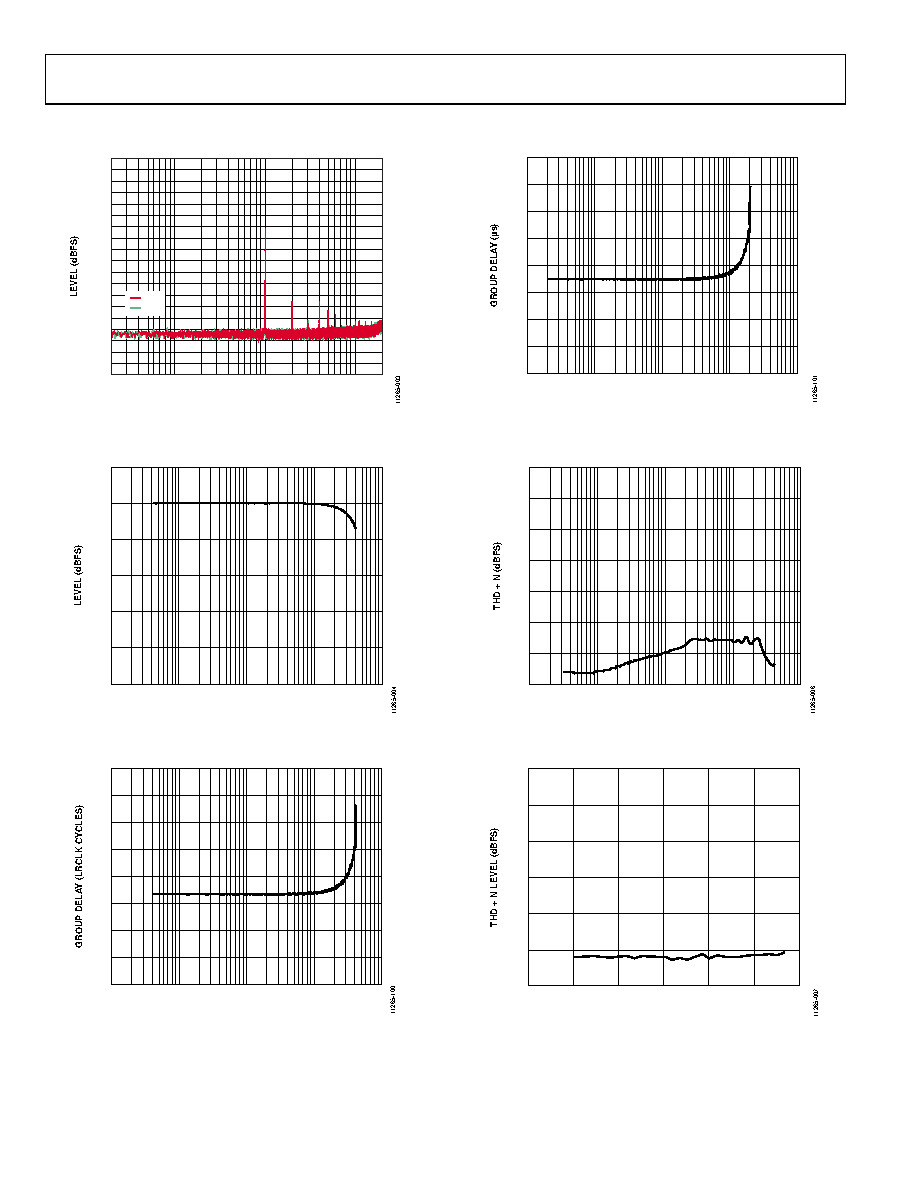

Figure 3. FFT, fS = 48 kHz, −60 dBFS Input
–0.5
–0.4
–0.3
–0.2
–0.1
0
0.1
0.0001
0.001
0.01
0.1
1
NORMALIZED FREQUENCY (RELATIVE TO
fS) (Hz)
Figure 4. Frequency Response
0
1
2
3
4
6
5
7
8
NORMALIZED FREQUENCY (RELATIVE TO
fS) (Hz)
0.0001
0.001
0.01
0.1
1
Figure 5. Group Delay vs. Normalized Frequency (Relative to fS)
0
20
40
60
80
120
100
140
160
FREQUENCY (Hz)
10
100
1k
10k
100k
Figure 6. Group Delay vs. Frequency, fS = 48 kHz
0.0001
0.001
0.01
0.1
1
–140
–120
–100
–80
–60
–20
–40
0
NORMALIZED FREQUENCY (RELATIVE TO
fS) (Hz)
Figure 7. Total Harmonic Distortion + Noise (THD + N) vs.
Normalized Frequency (Relative to fS)
–120
–100
–80
–60
–40
–20
0
–120
–100
–80
–60
–40
–20
0
GENERATOR LEVEL (dBFS)
Figure 8. THD + N Level vs. Generator Level
