ADAU7002
Data Sheet
Rev. C | Page 8 of 16
TYPICAL APPLICATION CIRCUIT
PDM_CLK
CONFIG
GND
IOVDD
0.1µF
IOVDD
PDM_DAT
PDM_CLK
CONFIG
PDM_DAT
LRCLK
SDATA
BCLK
ADAU7002
LRCLK
SDATA
OPTIONAL
PULL-DOWN
RESISTOR
BCLK

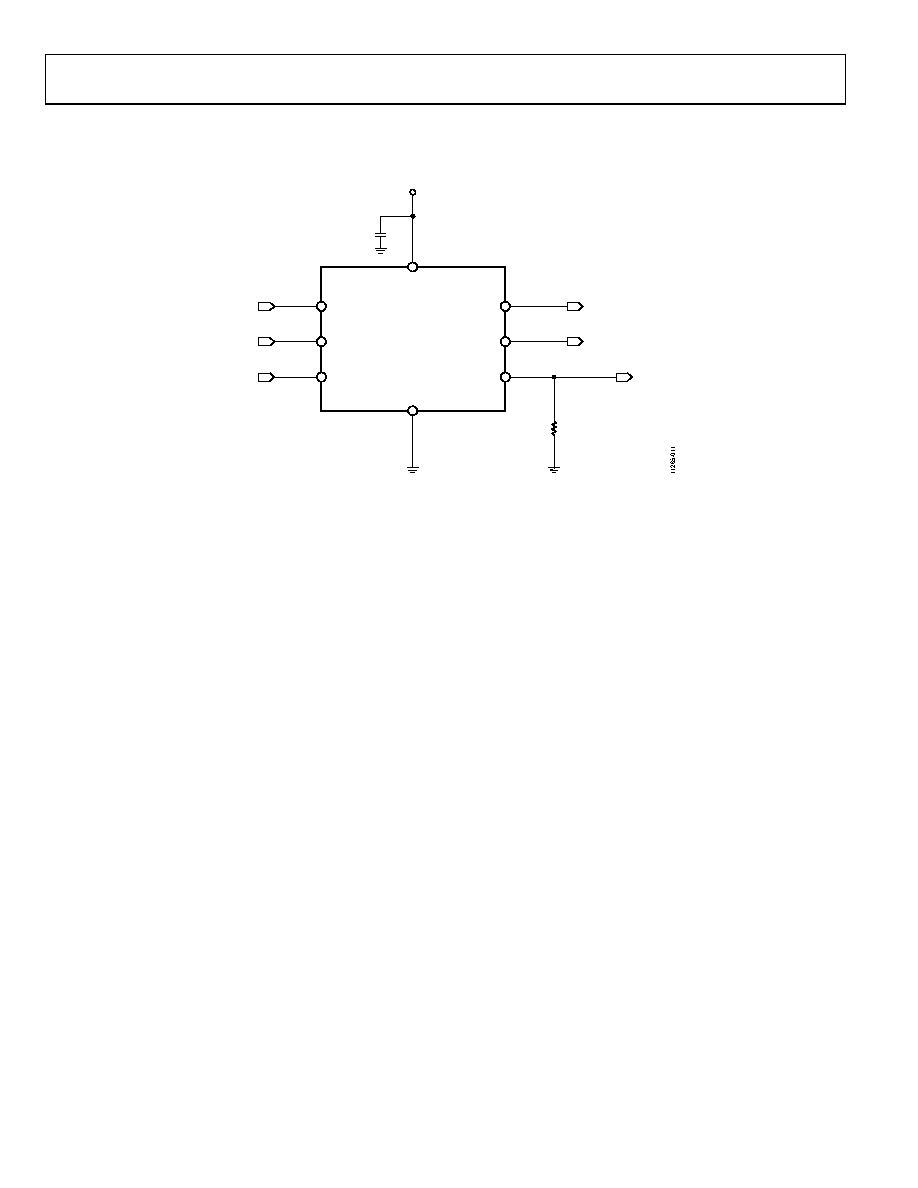

Figure 11. Typical Application Circuit
