Data Sheet
ADA4530-1
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
analog.com
Rev. C | 10 of 52

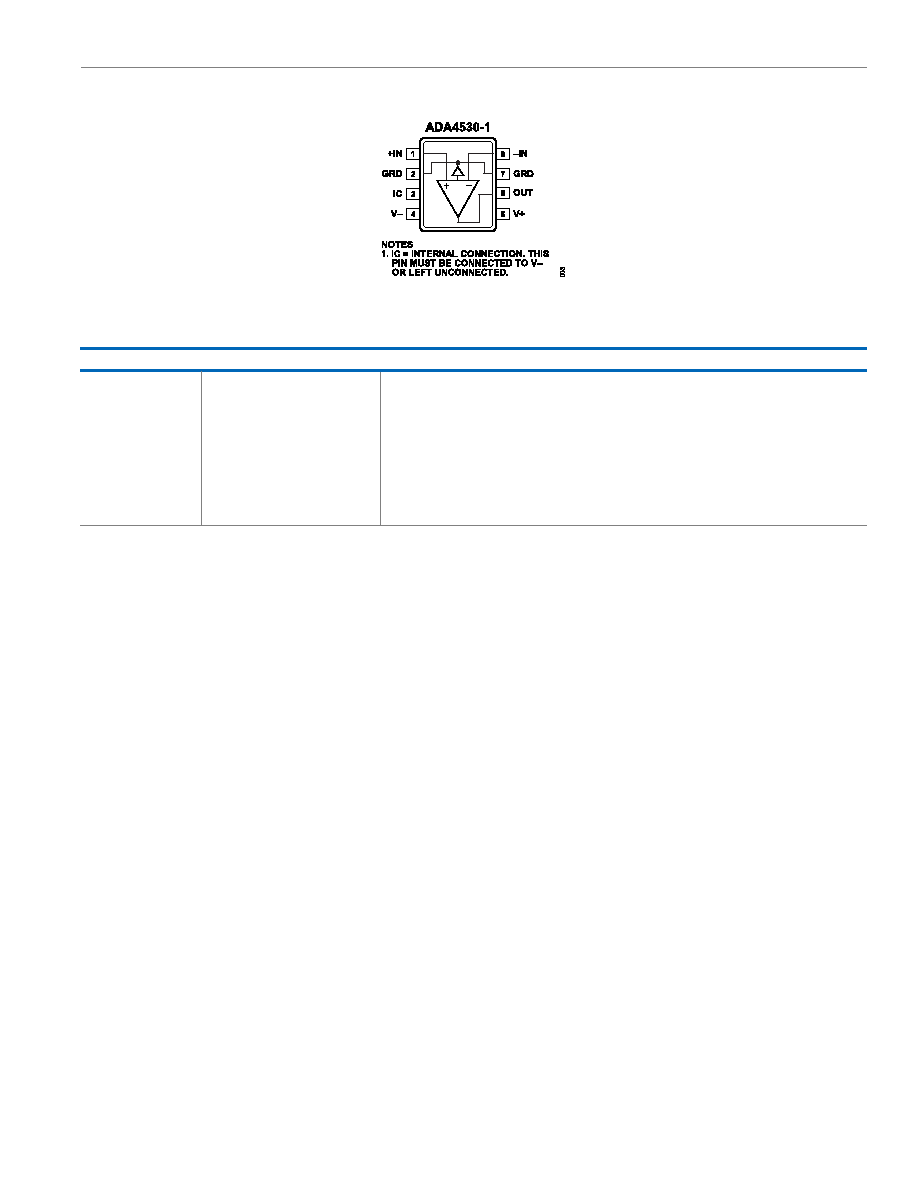

Figure 3. Pin Configuration
Table 6. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
+IN
Noninverting Input.
2
GRD
Guard.
3
IC
Internal Connection. This pin must be connected to V− or left unconnected.
4
V−
Negative Supply Voltage.
5
V+
Positive Supply Voltage.
6
OUT
Output.
7
GRD
Guard.
8
−IN
Inverting Input.
