Data Sheet
ADA4530-1
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. C | 17 of 52

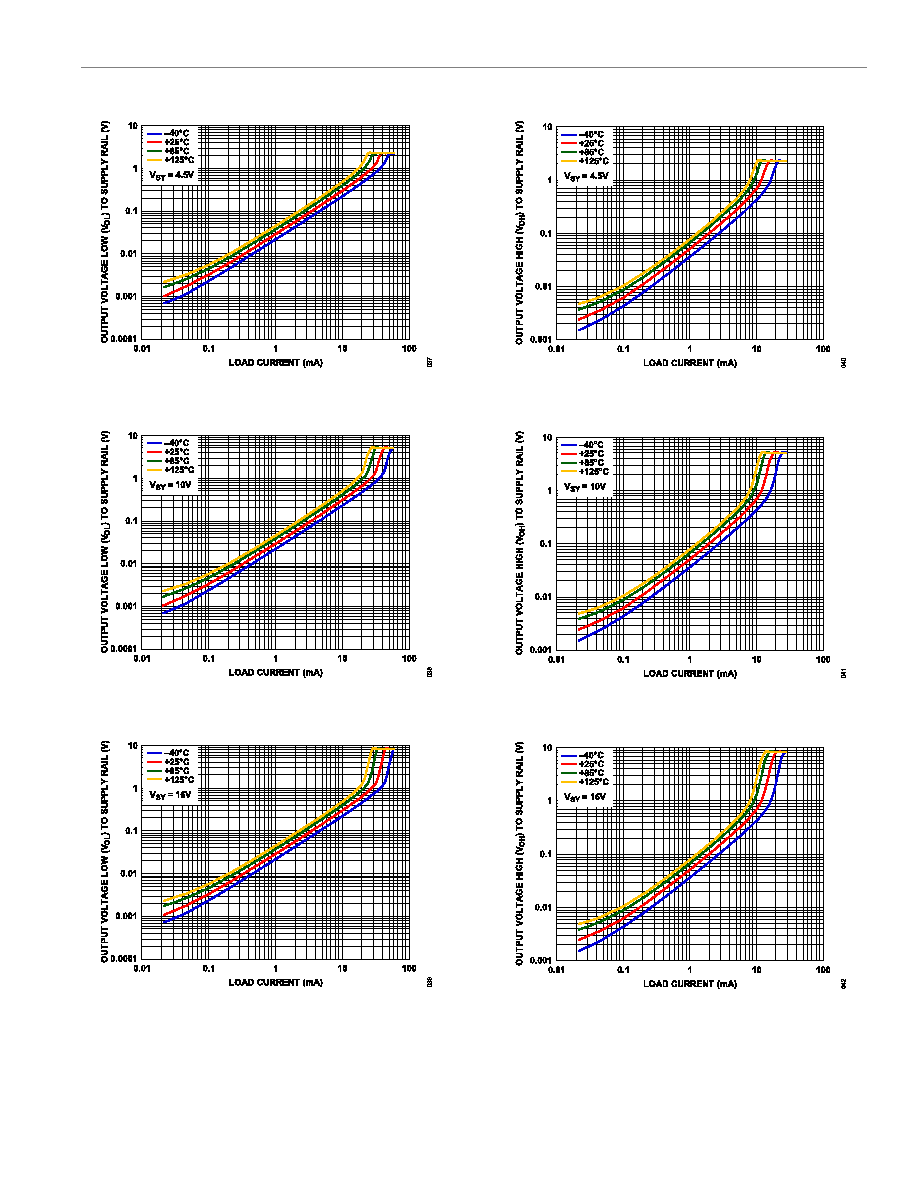

Figure 40. Output Voltage Low (VOL) to Supply Rail vs. Load Current (ILOAD),
VSY = 4.5 V
Figure 41. Output Voltage Low (VOL) to Supply Rail vs. Load Current (ILOAD),
VSY = 10 V
Figure 42. Output Voltage Low (VOL) to Supply Rail vs. Load Current (ILOAD),
VSY = 16 V
Figure 43. Output Voltage High (VOH) to Supply Rail vs. Load Current (ILOAD),
VSY = 4.5 V
Figure 44. Output Voltage High (VOH) to Supply Rail vs. Load Current (ILOAD),
VSY = 10 V
Figure 45. Output Voltage High (VOH) to Supply Rail vs. Load Current (ILOAD),
VSY = 16 V
