Data Sheet
ADPA7002
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 10 of 20

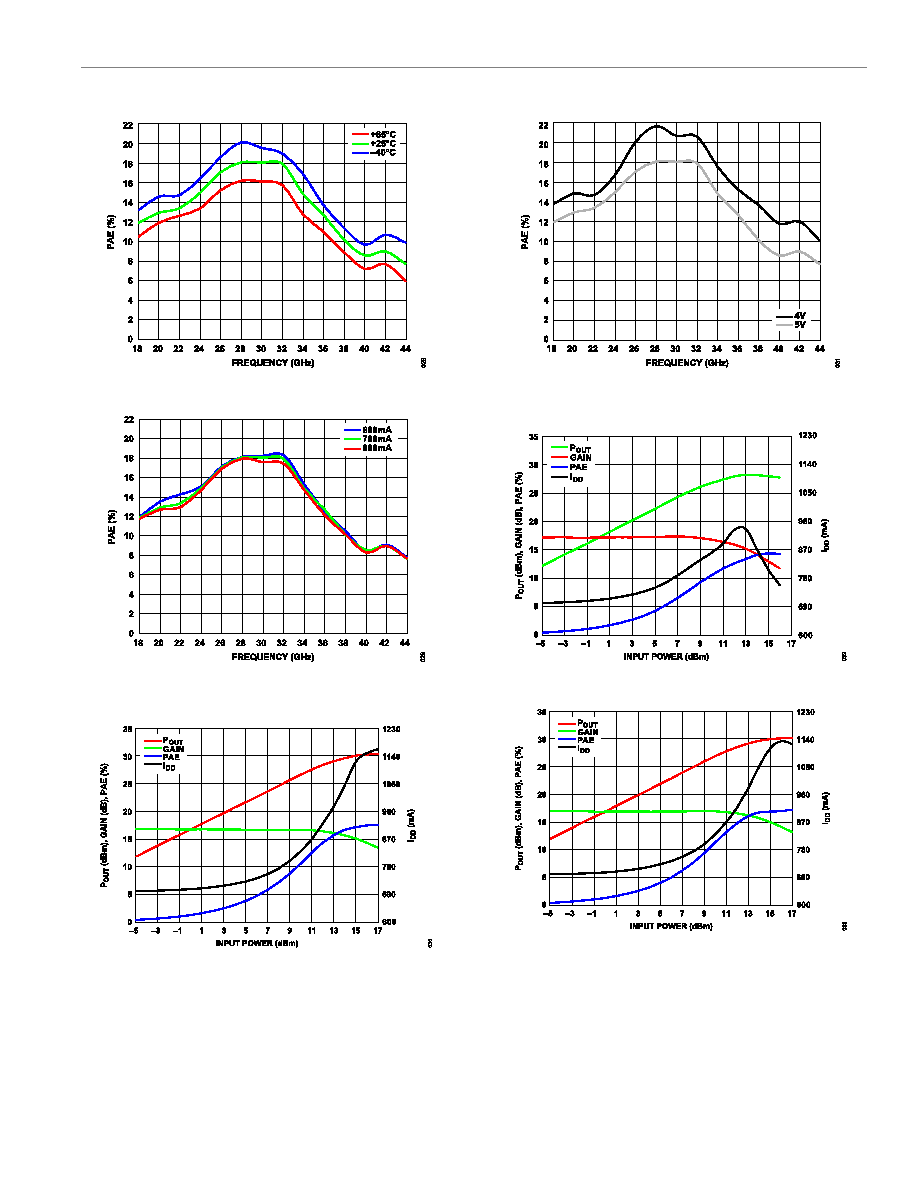

Figure 28. PAE vs. Frequency over Temperature, PAE Measured at PSAT
Figure 29. PAE vs. Frequency for Various Quiescent Drain Currents, PAE
Measured at PSAT
Figure 30. POUT, Gain, PAE, and Drain Currents (IDD) vs. Input Power,
Frequency = 26 GHz
Figure 31. PAE vs. Frequency for Various Drain Voltages, PAE Measured at
PSAT
Figure 32. POUT, Gain, PAE, and IDD vs. Input Power, Frequency = 22 GHz
Figure 33. POUT, Gain, PAE, and IDD vs. Input Power, Frequency = 30 GHz
