PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

analog.com

Rev. B | 11 of 54

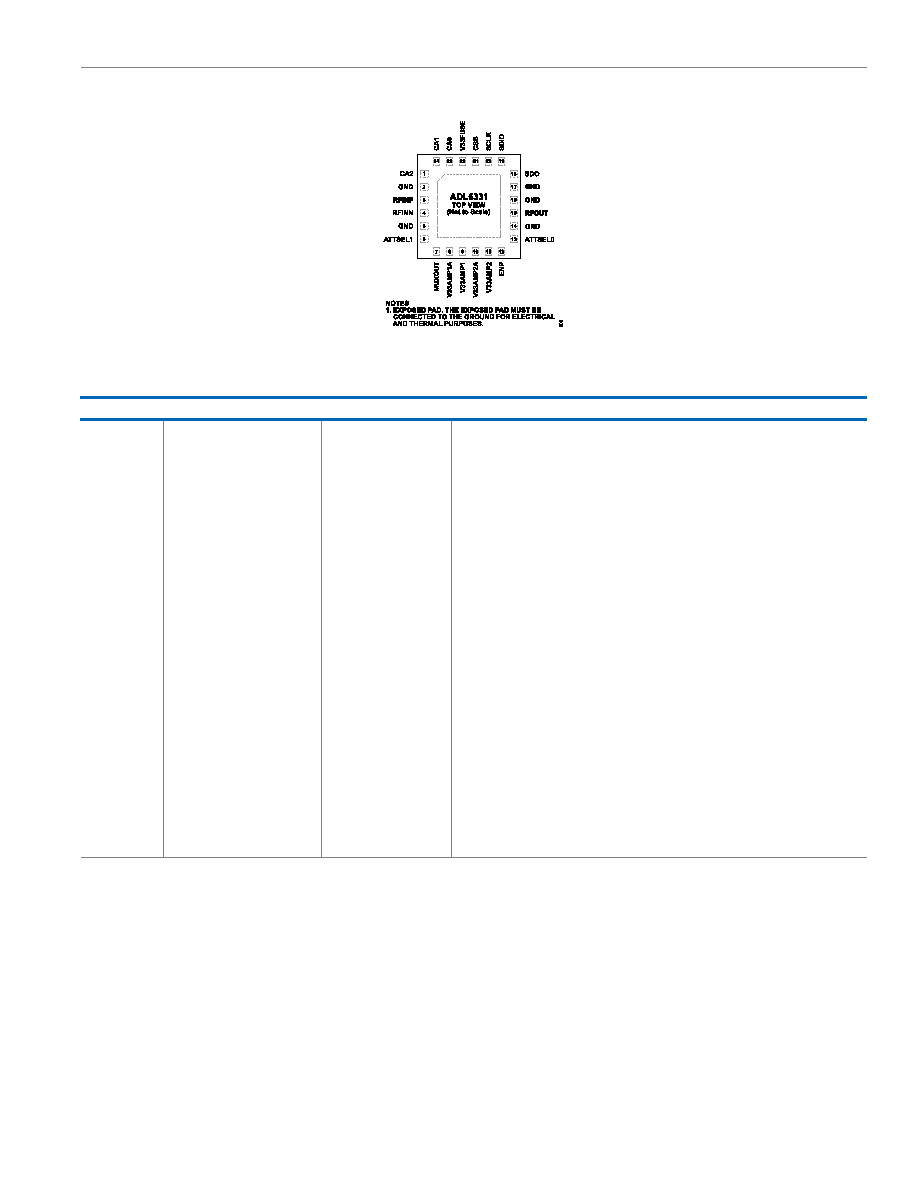

Figure 6. Pin Configuration

Table 6. Pin Function Descriptions

Pin No.

Mnemonic

Type

Description

CA2

Input

SPI Chip Address (MSB).

2, 5, 14, 16, 17

GND

Input and Output

Ground Reference.

RFINP

Input

Negative Side of Balanced Differential Inputs.

RFINN

Input

Positive Side of Balanced Differential Inputs.

ATTSEL1

Input

Preprogrammed Mode Selection (A, B, C, and D States).

MUXOUT

Output

Voltage Measurement Pin for Reading Chip Temperature. Leave as no connect when not in

use.

V33AMP1A

Input

Analog 3.3 V Power-Supply Input for AMP1.

V33AMP1

Input

Analog 3.3 V Power-Supply Input for AMP1.

V33AMP2A

Input

Analog 3.3 V Power-Supply Input for AMP2.

V33AMP2

Input

Analog 3.3 V Power-Supply Input for AMP2.

ENP

Input

Power Up and Enable Input. Active High.

ATTSEL0

Input

Preprogrammed Mode Selection (A, B, C, and D States).

RFOUT

Output

Single-Ended RF Output.

SDO

Output

Serial-Port Data Output.

SDIO

Input and Output

Serial-Port Bidirectional Data Input and Output.

SCLK

Input

Serial-Port Clock Input.

CSB

Input

Serial-Port Enable Input. Active low.

V33FUSE

Input

Digital 3.3 V Power-Supply Input.

CA0

Input

SPI Chip Address (LSB).

CA1

Input

SPI Chip Address.

EPAD

Input and Output

Exposed Pad. The exposed pad must be connected to ground for electrical and thermal

purposes.
