Data Sheet
ADL6331
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 21 of 54

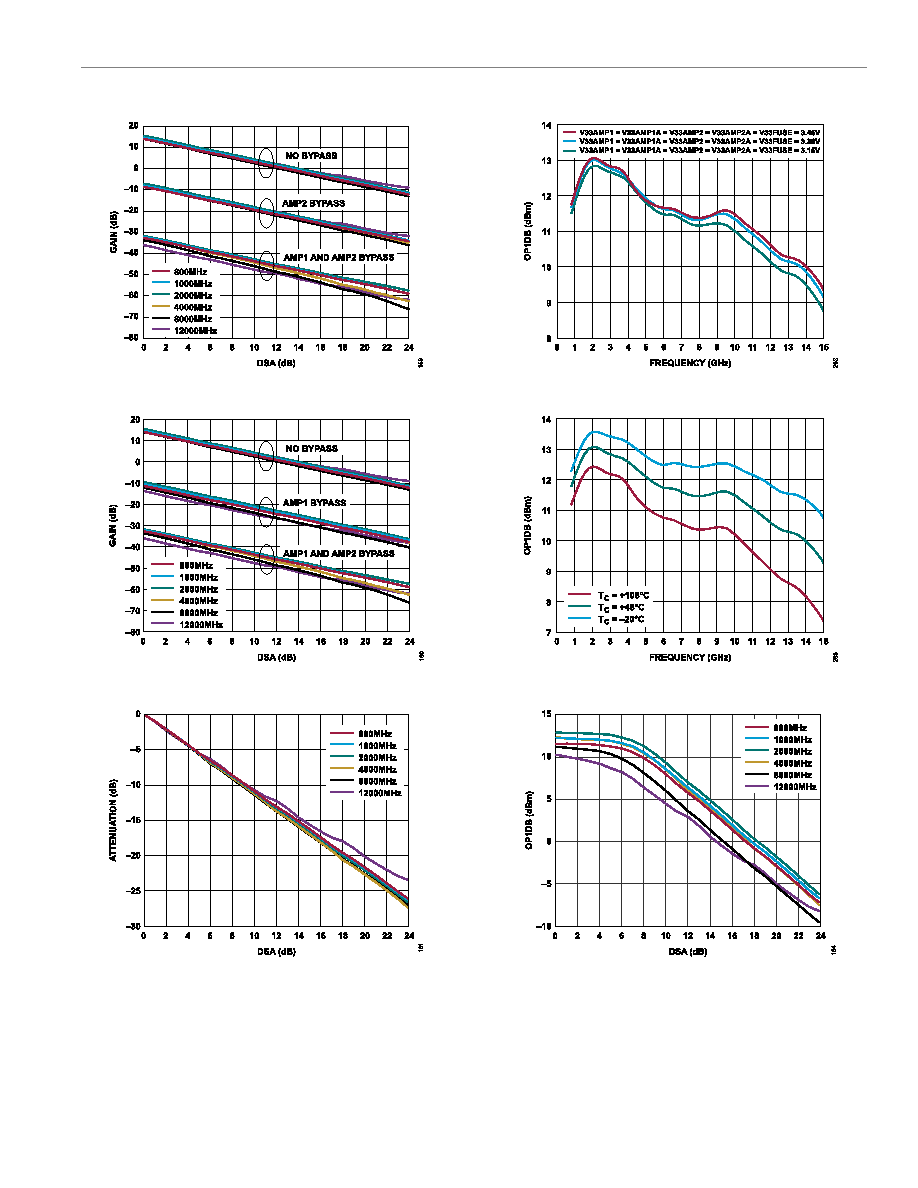

Figure 59. Gain vs. 1.0 dB DSA Steps for Various Frequencies, AMP2 Bypass
Figure 60. Gain vs. 1.0 dB DSA Steps for Various Frequencies, AMP1 Bypass
Figure 61. Attenuation vs. DSA for Various Frequencies
Figure 62. OP1dB vs. Frequency for Various Supplies
Figure 63. OP1dB vs. Frequency for Various Temperatures
Figure 64. OP1dB vs. 1.0 dB DSA Steps for Various Frequencies
