Data Sheet
ADL6331
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 13 of 54
ADL6331-A
V33AMP1 = V33AMP1A = V33AMP2 = V33AMP2A = V33FUSE = 3.3 V, TA = 25°C, fixed gain mode, DSA attenuation = 0 dB, RS = 50 Ω differential, and
RL = 50 Ω single-ended, unless otherwise noted.

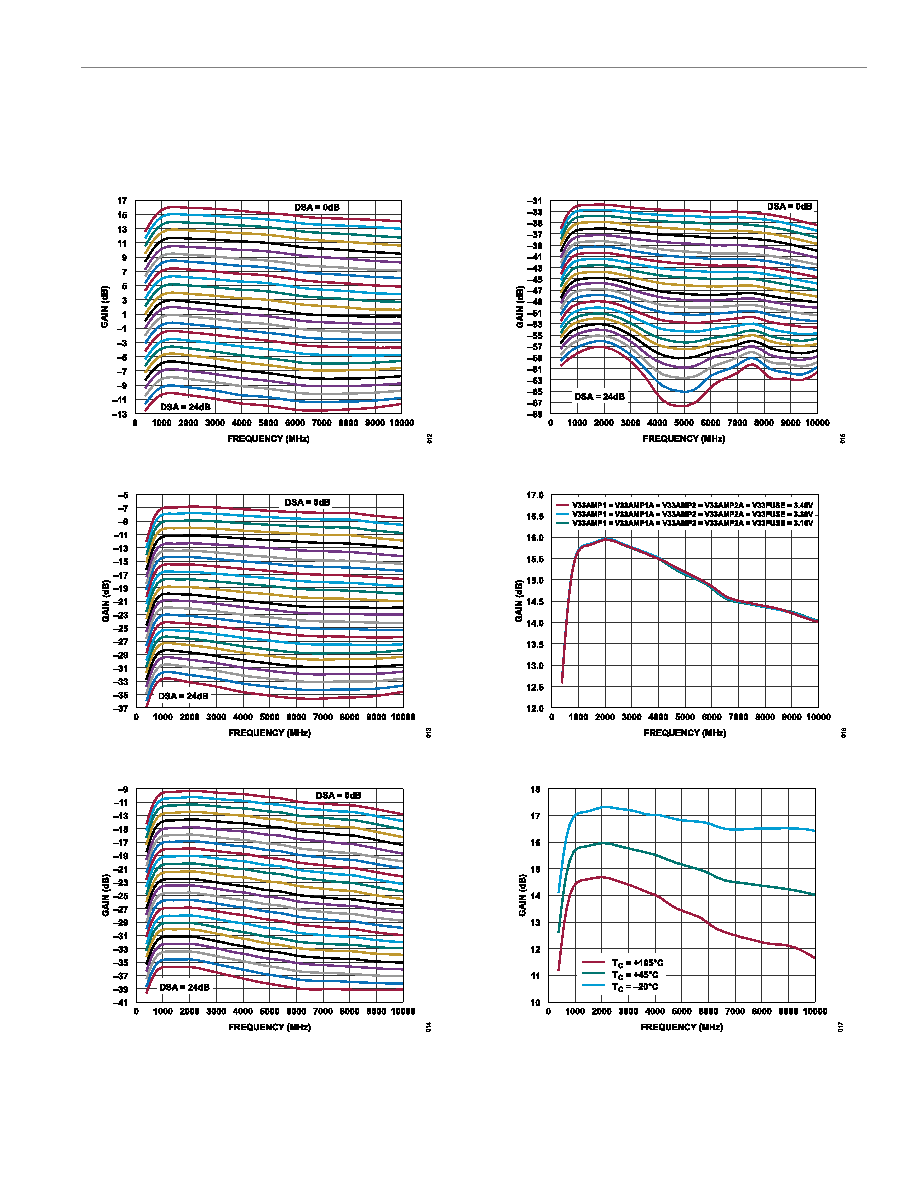

Figure 12. Gain vs. Frequency, 1.0 dB DSA Steps
Figure 13. Gain vs. Frequency, 1.0 dB DSA Steps, AMP2 Bypass
Figure 14. Gain vs. Frequency, 1.0 dB DSA Steps, AMP1 Bypass
Figure 15. Gain vs. Frequency, 1.0 dB DSA Steps, AMP1 and AMP2 Bypass
Figure 16. Gain vs. Frequency for Various Supplies
Figure 17. Gain vs. Frequency for Various Temperatures
