ODHKGL4115HW-R-02

Electronic Components

KGL4115HW-R

Operating Condition

VB1 = -3.80 V

(@Xp = 51.3%)

VC1 = -4.62 V

VC2 = -5.0 V

(@Output Offset : Off)

VS= -5.0 V

(Iss = 194.8 mA)

Output Amplitude

: 2.800Vpp

Rise Time (20-80%) : 23.1 ps

Fall Time (20-80%) : 21.8 ps

Jitter (p-p)

: 12.2 ps

Operating Condition

VB1 = -3.81 V

(@Xp = 52.2%)

VC1 = -4.62 V

VC2 = -2.8 V

(@Output Offset : Max)

VS= -5.0 V

(Iss = 249.4 mA)

Voltage Offset

: -1.312 Vpp

Rise Time (20-80%) : 21.3 ps

Fall Time (20-80%) : 25.8 ps

Jitter (p-p)

: 11.7 ps

Operating Condition

VB1= -3.67 V

(@Xp = 19.6%)

VC1= -4.62 V

VC2= -5.0 V

(@Output Offset : Off)

VS= -5.0 V

(Iss = 194.7 mA)

Output Amplitude

: 2.787 Vpp

Rise Time (20-80%) : 24.4 ps

Fall Time (20-80%) : 22.7 ps

Jitter (p-p)

: 13.2 ps

Operating Condition

VB1= -3.91 V

(@Xp = 80.0%)

VC1= -4.62 V

VC2= -5.0 V

(@Output Offset : Off)

VS= -5.0 V

(Iss = 194.4 mA)

Output Amplitude

: 2.716 Vpp

Rise Time (20-80%) : 23.1 ps

Fall Time (20-80%) : 21.8 ps

Jitter (p-p)

: 11.6 ps

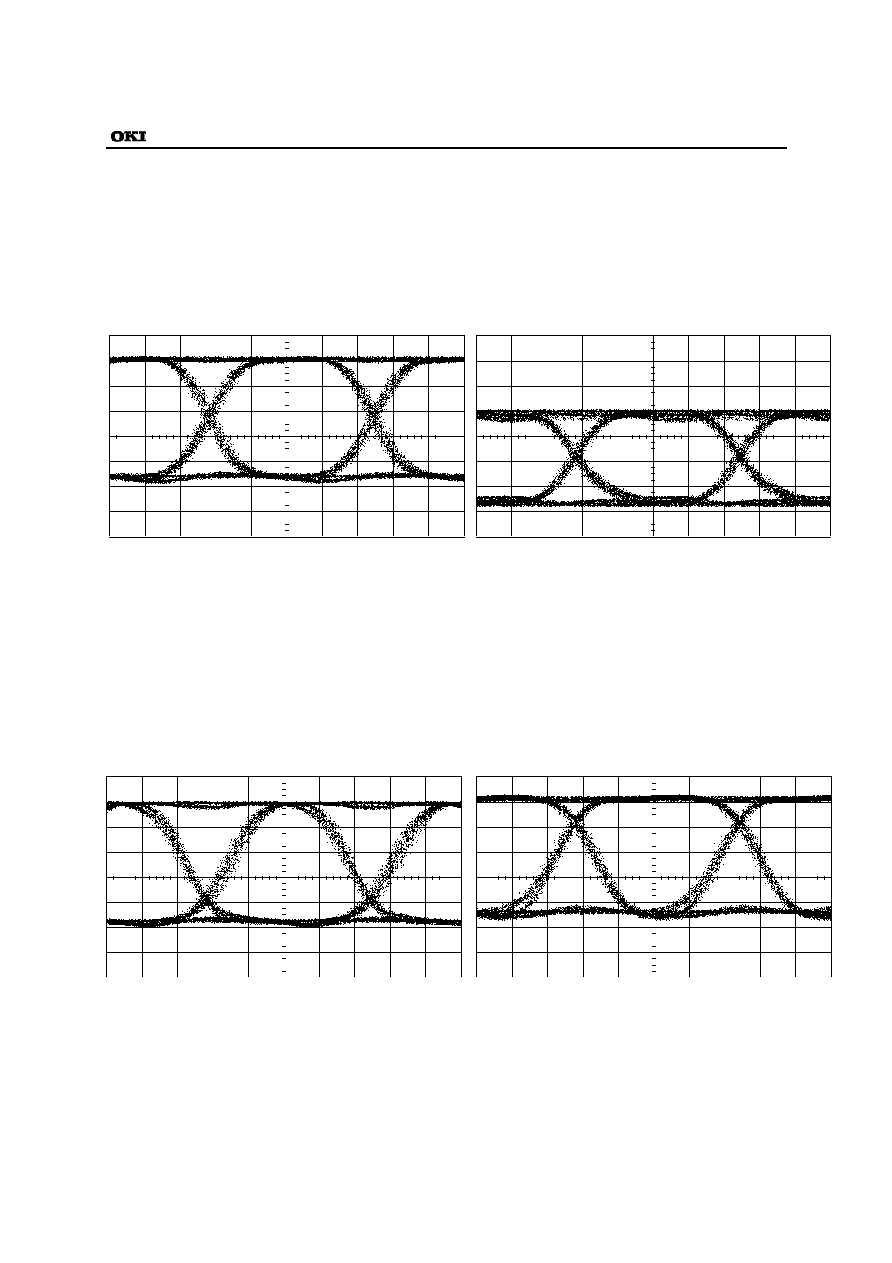

TYPICAL CHARACTERISTICS ( 10.7Gbps WAVEFORM )

Measured Condition

Display Factor

V : 600 mV/div,

H : 20 ps/div,

Offset : -2.2V

Input Signal

10.7 Gbps,

NRZ,

PN31,

Differential 0.25 Vpp

Waveform @ Maximum Amplitude

Waveform @ Maximum Offset

Waveform @ Cross Point

≅ 20%

Waveform @ Cross Point

≅ 80%
