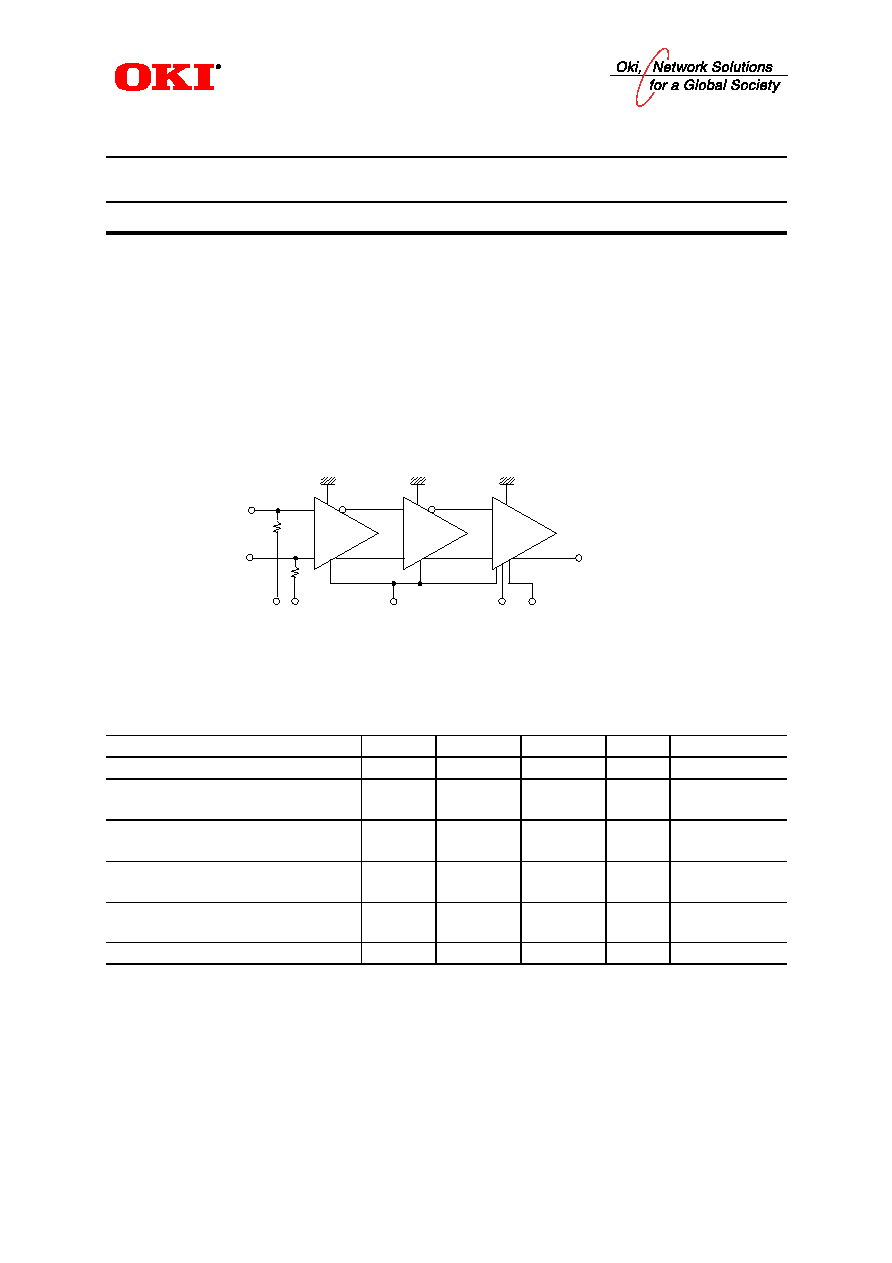

1 / 7 page

Electronic Components

ODHKGL4115HW-R-02

Issue Date:Jun 27, 2003

KGL4115HW-R

11.1 Gbps Modulator Driver IC

1

FEATURES

• 11.1Gbps Operation

• Differential Input

• High Output Voltage: Maximum Amplitude > 2.7 Vpp

• X-Point Control Function

• Output Amplitude Control Function

• Output Bias Control Function

FUNCTION DIAGRAM

ABSOLUTE

MAXIMUM RATINGS

Parameter

Symbol

Min

Max

Unit

Note

Supply Voltage

VS

-6.5

0.3

V

X-Point Control Voltage

VB1

VS-4.5

(Min. -6.5)

VS+2.4

(Max. 0.3)

V

Output Amplitude Control Voltage

VC1

-6.5

VS+1.2

(Max. 0.3)

V

Output Bias Control Voltage

VC2

-6.5

VS+2.4

(Max. 0.3)

V

Operating Temperature at Package

Base

Ts

-10

100

°C

Storage Temperature

Tst

-40

125

°C

OUT

IN

VB1 VB2

VS

VC1 VC2

INB
