ODHKGL4115HW-R-02

Electronic Components

KGL4115HW-R

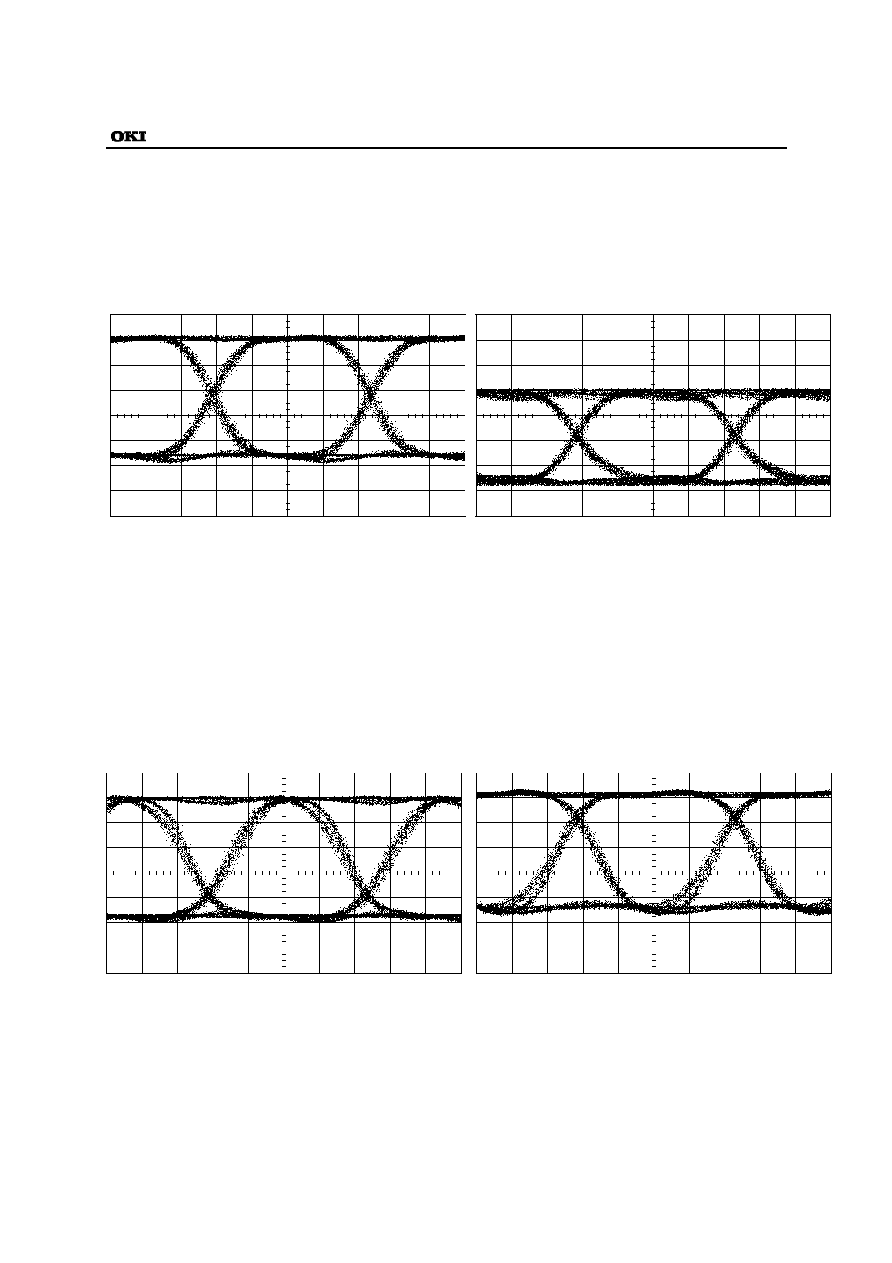

TYPICAL CHARACTERISTICS ( 11.1Gbps WAVEFORM )

Measured Condition

Display Factor

V : 600 mV/div,

H : 20 ps/div,

Offset : -2.2V

Input Signal

11.1 Gbps,

NRZ,

PN31,

Differential 0.25 Vpp

Waveform @ Maximum Amplitude

Waveform @ Maximum Offset

Waveform @ Cross Point

≅ 20%

Waveform @ Cross Point

≅ 80%

Operating Condition

VB1 = -3.80 V

(@Xp = 51.9%)

VC1 = -4.62 V

VC2 = -5.0 V

(@Output Offset : Off)

VS= -5.0 V

(Iss = 194.9 mA)

Output Amplitude

: 2.799Vpp

Rise Time (20-80%) : 22.7 ps

Fall Time (20-80%) : 21.8 ps

Jitter (p-p)

: 10.2 ps

Operating Condition

VB1 = -3.81 V

(@Xp = 52.5%)

VC1 = -4.62 V

VC2 = -2.8 V

(@Output Offset : Max)

VS= -5.0 V

(Iss = 249.5 mA)

Voltage Offset

: -1.311 Vpp

Rise Time (20-80%) : 21.3 ps

Fall Time (20-80%) : 25.3 ps

Jitter (p-p)

: 10.6 ps

Operating Condition

VB1= -3.67 V

(@Xp = 19.6%)

VC1= -4.62 V

VC2= -5.0 V

(@Output Offset : Off)

VS= -5.0 V

(Iss = 194.7 mA)

Output Amplitude

: 2.786 Vpp

Rise Time (20-80%) : 24.4 ps

Fall Time (20-80%) : 22.7 ps

Jitter (p-p)

: 11.5 ps

Operating Condition

VB1= -3.91 V

(@Xp = 80.0%)

VC1= -4.62 V

VC2= -5.0 V

(@Output Offset : Off)

VS= -5.0 V

(Iss = 194.5 mA)

Output Amplitude

: 2.716 Vpp

Rise Time (20-80%) : 22.2 ps

Fall Time (20-80%) : 21.3 ps

Jitter (p-p)

: 11.0 ps
