• Sealing options :

K : IP68 to front panel components of switch only according to IEC 60529

Z : IP69K panel sealing according to DIN 40050-9

• Salt spray resistance : 96 hours according to IEC 512-6, test 11f

• Operating temperature : -40 °C to +85 °C (-40 °F to +185 °F)

ENVIRONMENTAL SPECIFICATIONS

• Mechanical life : 150,000 cycles min.

• Panel thickness : 0.8 mm to 4.6 mm

• Recommended panel thickness : between 2 mm and 3.5 mm

GENERAL SPECIFICATIONS

• Currrent/voltage rating with resistive load :

- Silver plated contacts :

A : 5 A 24 VDC, 100,000 cycles

10 A 24 VDC, 10,000 cycles (terminals 6.35 x 0.8 only)

S : 20 A 12 V, 10,000 cycles (see “Build your part number“)

- Gold plated contacts (D) : 20 mA 12 V, 150,000 cycles

• Initial contact resistance : 10 mΩ max.

• Insulation resistance : 1,000 MΩ min. at 500 VDC

• Dielectric strength : 2,000 Vrms 50 Hz min. between terminals

• Mechanical life : 150,000 cycles min.

ELECTRICAL SPECIFICATIONS

One protected position

Patented intuitive ergonomics

Laser etched symbols

Illuminated or non-illuminated

Optionally sealed to IP69K

DISTINCTIVE FEATURES

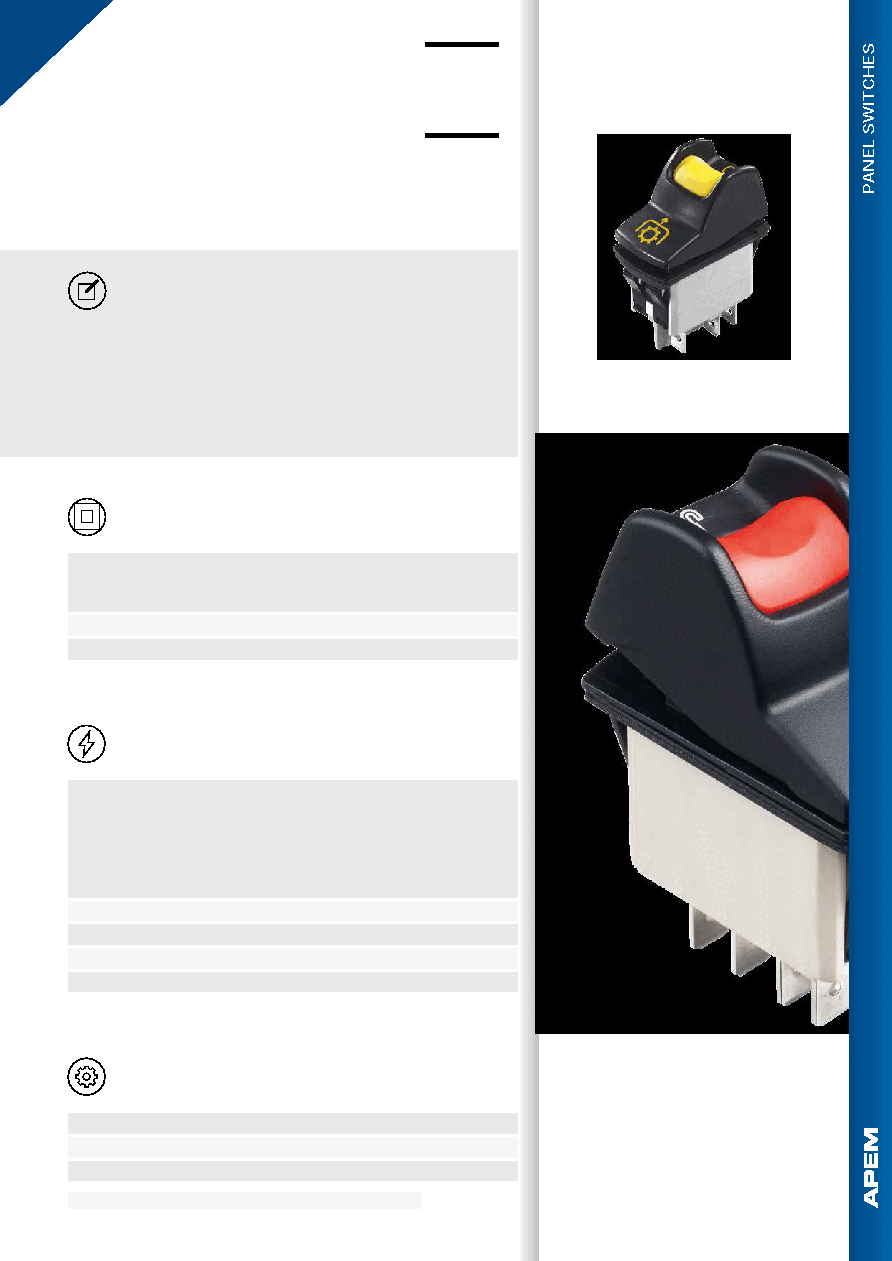

KL series

Locking power rocker switches

The company reserves the right to change specifications without notice.

1

SW-KL-1801(R1)
