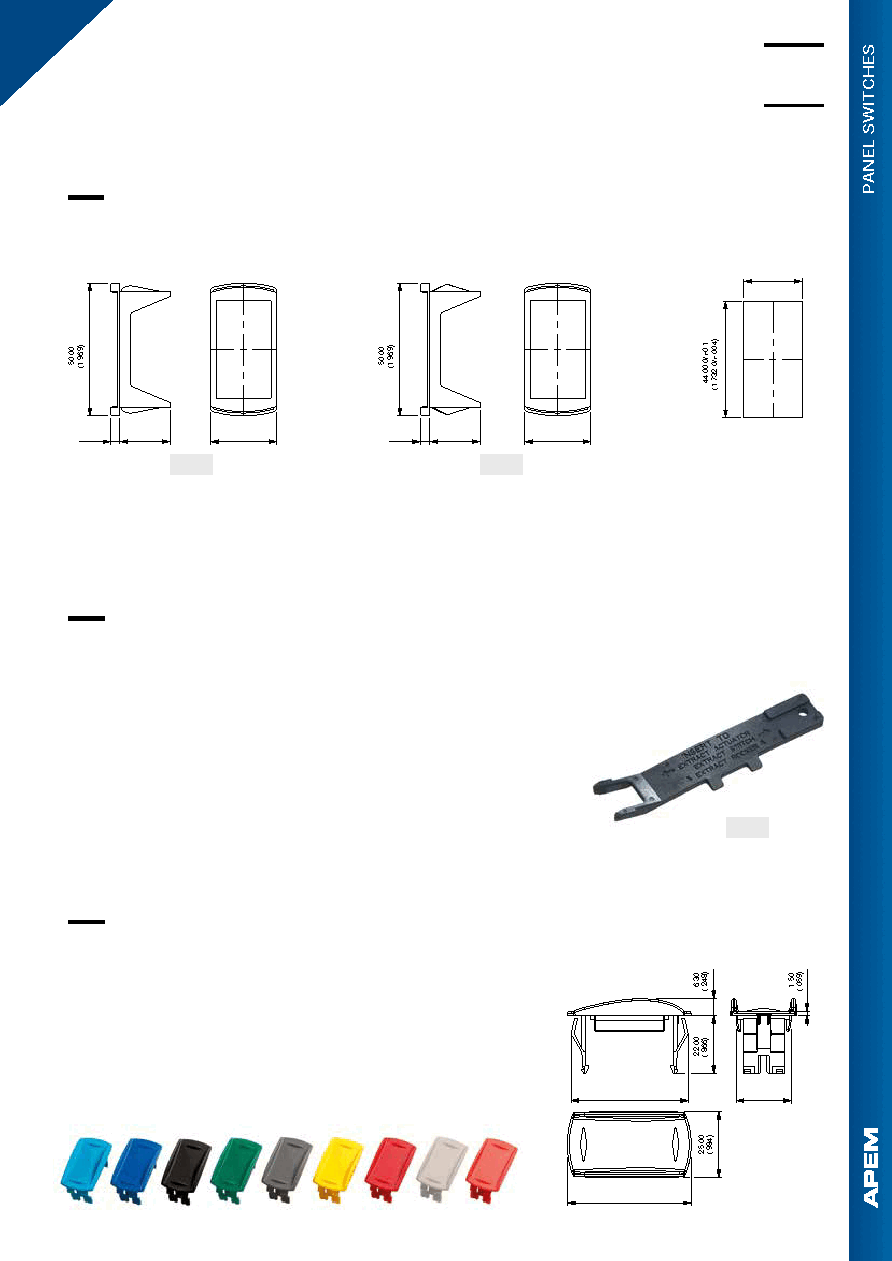

Power rocker switches and indicators •

symbols and accessories

K range

22 X 44 ADAPTERS

FRONT PANEL DISMOUNTING

REAR PANEL DISMOUNTING

FICHIER: CKRAD

le 02/02/10

ECHELLE: 0.625

CKRAD-3

(.866 0/+.004)

22.00 0/+0.1

CKRAD-1

(.748)

19.00

3.50

(.138)

(.984)

25.00

CKRAD-2

25.00

(.984)

(.138)

3.50

19.00

(.748)

PANEL CUT-OUT

FICHIER: CKRAD

le 02/02/10

ECHELLE: 0.625

CKRAD-3

(.866 0/+.004)

22.00 0/+0.1

CKRAD-1

(.748)

19.00

3.50

(.138)

(.984)

25.00

CKRAD-2

25.00

(.984)

(.138)

3.50

19.00

(.748)

FICHIER: CKRAD

le 02/02/10

ECHELLE: 0.625

CKRAD-3

(.866 0/+.004)

22.00 0/+0.1

CKRAD-1

(.748)

19.00

3.50

(.138)

(.984)

25.00

CKRAD-2

25.00

(.984)

(.138)

3.50

19.00

(.748)

Recommended panel thickness

U3060 0.60 mm to 1.50 mm

U3070 1.60 mm -0.1/0 to 5.60 mm -0.1/0 in stages of 0.40 mm

Adapter colors (replace 0 with code)

1/4

Dark blue

2

Black

4

Grey

5

Yellow

6

Red

7/1

White

U3060

U3070

ACTUATOR REMOVING TOOL

U3052

Extract actuator (KR only)

Allows the extraction of the rocker / rocker support assembly. Place

the 2 claws under the support and push as indicated by the arrow.

Extract rocker (KR only)

Allows to separate the rocker from its support. Insert the tool between

rocker and support as indicated by the arrrow. Pull out the tool in the

opposite direction.

Extract switch (KR, KL and KI)

Allows to extract switch from panel mounting units. 2 Tools are neces-

sary. Insert the tools between switch and panel mounting units from

the rear to compress the snap-in device. Pull off switch manually.

2 tools are supplied

BLANKING CAPS

Usefull for future extensions.

Connectors can be hanged on specific hole plugs. Contact APEM.

U2271

Blue

U2271/4 Dark blue

U2272

Black

U2273

Green

U2274

Grey

44.10

(1.736)

(.819)

20.80

46.80

(1.843)

Recommended

panel thickness :

1.50 mm to 6 mm

U2275

Yellow

U2276

Red

U2277

Ivory

U2279

Orange

(NOT SUITABLE FOR USE WITH KH1 MODELS - 4-SIDE PROTECTION GUARDS)

5
