E3S-C

6

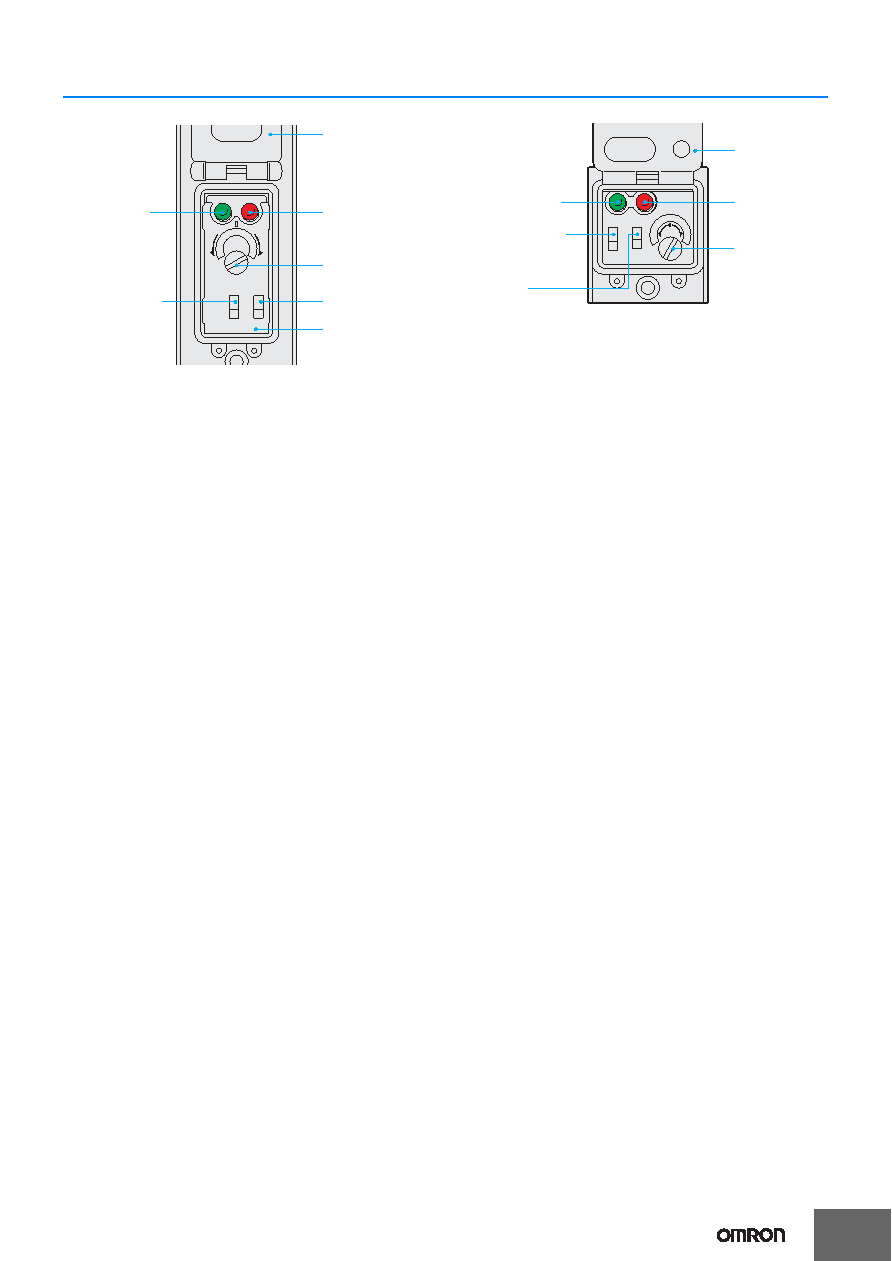

Nomenclature

Horizontal Model

Vertical Model

Note: The sensitivity adjuster on Through-beam and Retro-reflective Models is

different.

*1. Use the output selector to select the type of output transistor, NPN or PNP.

*2. Use the operation selector to select the operation mode.

Min

Max

SL

PNP

SENS

D·ON

NPN

L·ON

E3S-CD12

Stability

indicator

(green)

Light

indicator

(red)

Operation panel

cover

Sensitivity

adjuster

Operation

selector *2

Model number

Output selector *1

PNP

NPN

D

ON

L

ON

SENS

SL

Max

Min

Operation panel

cover

Stability indicator

(green)

Light indicator

(red)

Sensitivity

adjuster

Operation

selector *2

Output selector *1
