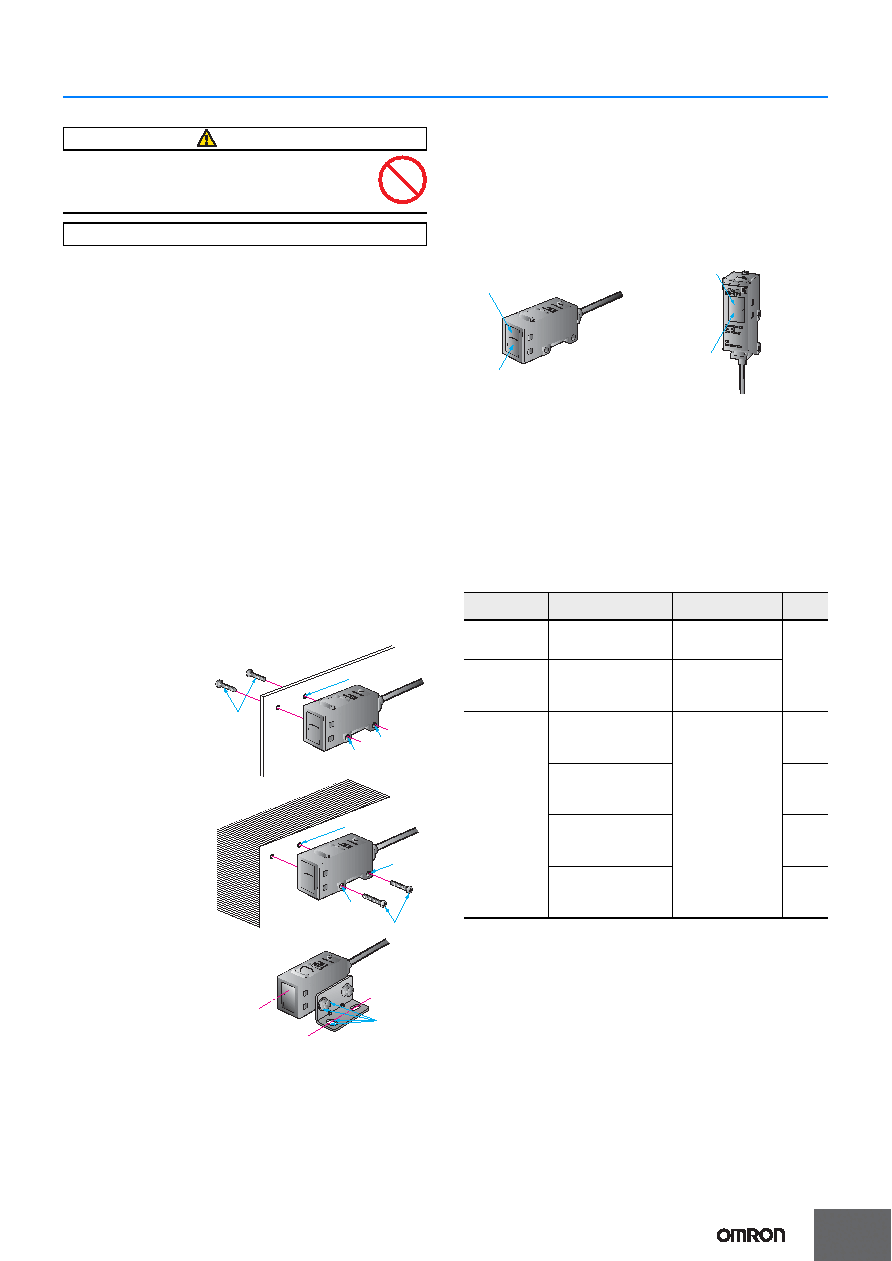

Safety Precautions

Refer to Warranty and Limitations of Liability.

This product is not designed or rated for ensuring

safety of persons either directly or indirectly.

Do not use it for such purposes.

Do not use the product in atmospheres or environments that exceed

product ratings.

● Wiring

Cable

• The E3S-C uses an oil-resistive cable to ensure oil resistivity.

• Do not allow the cable to be bent to a radius of less than 25 mm.

● Mounting

Mounting

• When mounting the E3S-C, do not hit the E3S-C with a hammer, or

the E3S-C will loose watertightness.

• Use M4 screws to mount the E3S-C. The tightening torque of each

screw must be 1.18 N·m maximum.

Mounting Bracket

• When mounting the E3S-C with the mounting bracket so that

sensing objects will be in the direction of the mechanical axis, use

the optical axis lock holes.

• If it is not possible to mount the E3S-C so that the sensing objects

will be in the direction the mechanical axis, move the E3S-C

upwards, downwards, to the left, or to the right and secure the E3S-

C in the center of the range where the light indicator will be lit, at

which time make sure that the stability indicator is lit.

Direct Mounting

Mount the E3S-C as shown in the following illustration.

Mounting with M4 Screws

Mounting with M3 Screws

Optical Axis Adjustment

Optical Lock Holes

By inserting screws into the

optical axis lock holes, the

Mounting Bracket will be in the

direction of the optical axis of the

E3S-C.

● Adjusting

Optical Axis of Through-beam Sensor

The E3S-C Through-beam Models incorporates two lenses, one of

which will be used as shown in the following illustration. When using

a Slit, the Slit must be on the side where the lens to be used is located.

Horizontal Model

Vertical Model

Water Resistance

To ensure the water resistance of the E3S-C, tighten the screws of the

operation panel cover to a torque of 0.34 N·m to 0.54 N·m.

● Others

Oil and Chemical Resistance

• Although the E3S-C is oil-resistance, refer to the following table

before using the E3S-C in places where oil may be sprayed on the

E3S-C.

• Tests were carried out with the following oils and it was certified that

the E3S-C resists these oils.

Note: 1. The E3S-C maintained a minimum insulation resistance of 100 M

Ω

after the E3S-C was dipped in all the above oils at a temperature of

50

°C for 240 hours.

2. When using the E3S-C in a place where an oil other than the ones

listed above is sprayed on the E3S-C, refer to the above kinematic

viscosity and ph values. The location may be suitable for the E3S-C if

the kinematic viscosity and pH values of the oil are close to the above

kinematic viscosity and pH values, but make sure that the oil does not

contain any additive that may have a negative influence on the E3S-C.

WARNING

Precautions for Correct Use

Two, 4.5 dia.

through holes

M4

M4 hole

M4 hole

Two, M3

M4 hole

M4 hole

M3

Optical

axis

Mounting axis

Four optical

axis lock

holes (M4)

Oil

Product name

Kinematic viscosity

(mm2/s (cst)) at 40

°C

PH

Lubricating oil

Velocite No.3

(manufactured by Exxon

Mobil)

2.02

---

Water insoluble

machining oil

Yushiron Oil No. 2 ac

(manufactured by Yushi-

ro Chemical Industry

Co., Ltd.)

Less than 10

Water soluble

machining oil

Yushiroken EC50T-3

(manufactured by Yushi-

ro Chemical Industry

Co., Ltd.)

---

7 to 9.5

Yushiron Lubic HWC68

(manufactured by Yushi-

ro Chemical Industry

Co., Ltd.)

7 to 9.9

Griton 1700D

(manufactured by Toho

Chemical Industry Co.,

Ltd.)

7 to 9.2

Yushiroken S50N

(manufactured by Yushi-

ro Chemical Industry

Co., Ltd.)

7 to 9.8

Lens in use. The Slit

must be on this side.

Unused lens

Lens in use.

Unused lens
