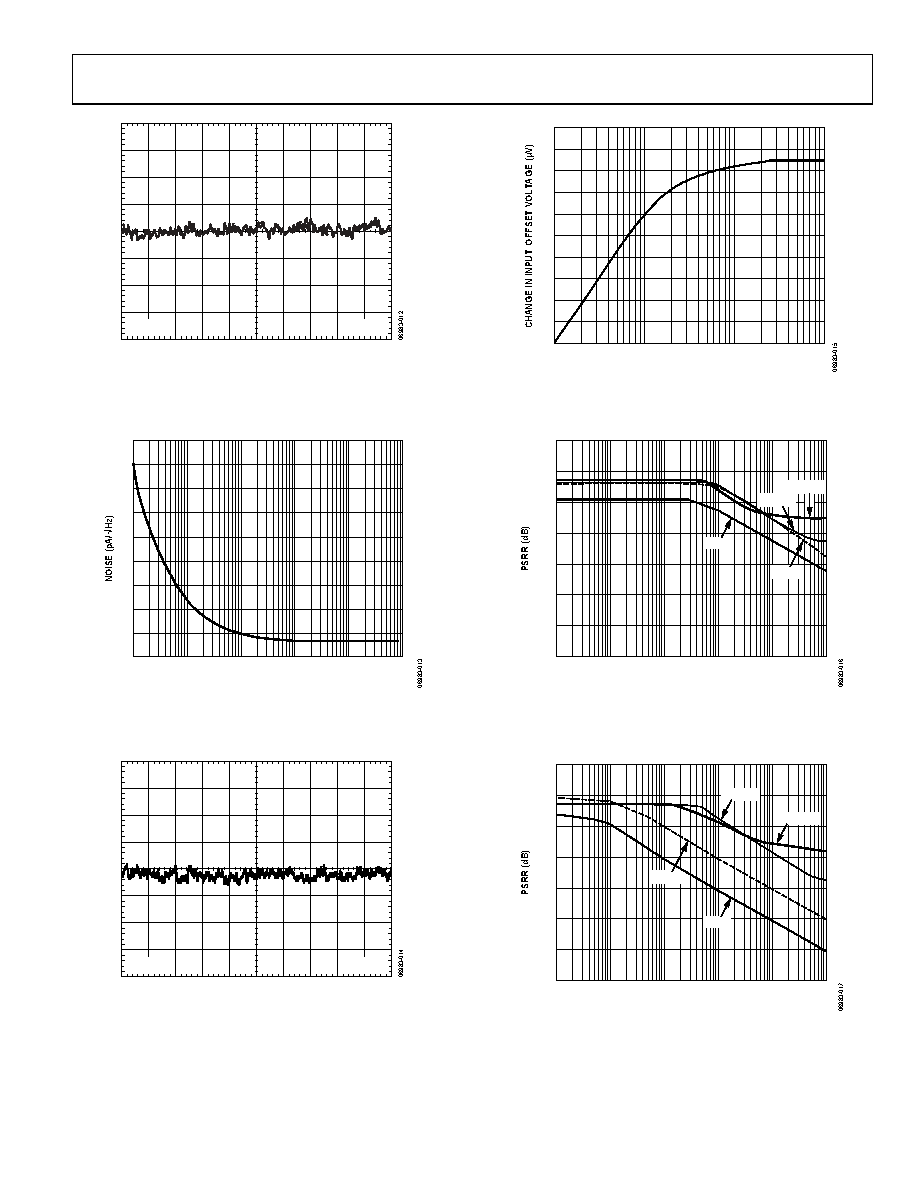

AD8253
Rev. 0 | Page 9 of 24
1s/DIV
500nV/DIV
Figure 12. 0.1 Hz to 10 Hz RTI Voltage Noise, G = 1000
18
0
11
FREQUENCY (Hz)
00k
10
100
1k
10k
16
14
12
10
8
6
4
2
Figure 13. Current Noise Spectral Density vs. Frequency
1s/DIV
140pA/DIV
Figure 14. 0.1 Hz to 10 Hz Current Noise
20
18
16
14
12
10
8
6
4
2
0
0.01
0.1
1
10
WARM-UP TIME (Minutes)
Figure 15. Change in Input Offset Voltage vs. Warm-Up Time, G = 1000
