AD8253

Rev. 0 | Page 13 of 24

2µs/DIV

20mV/DIV

LOAD

100pF

47pF

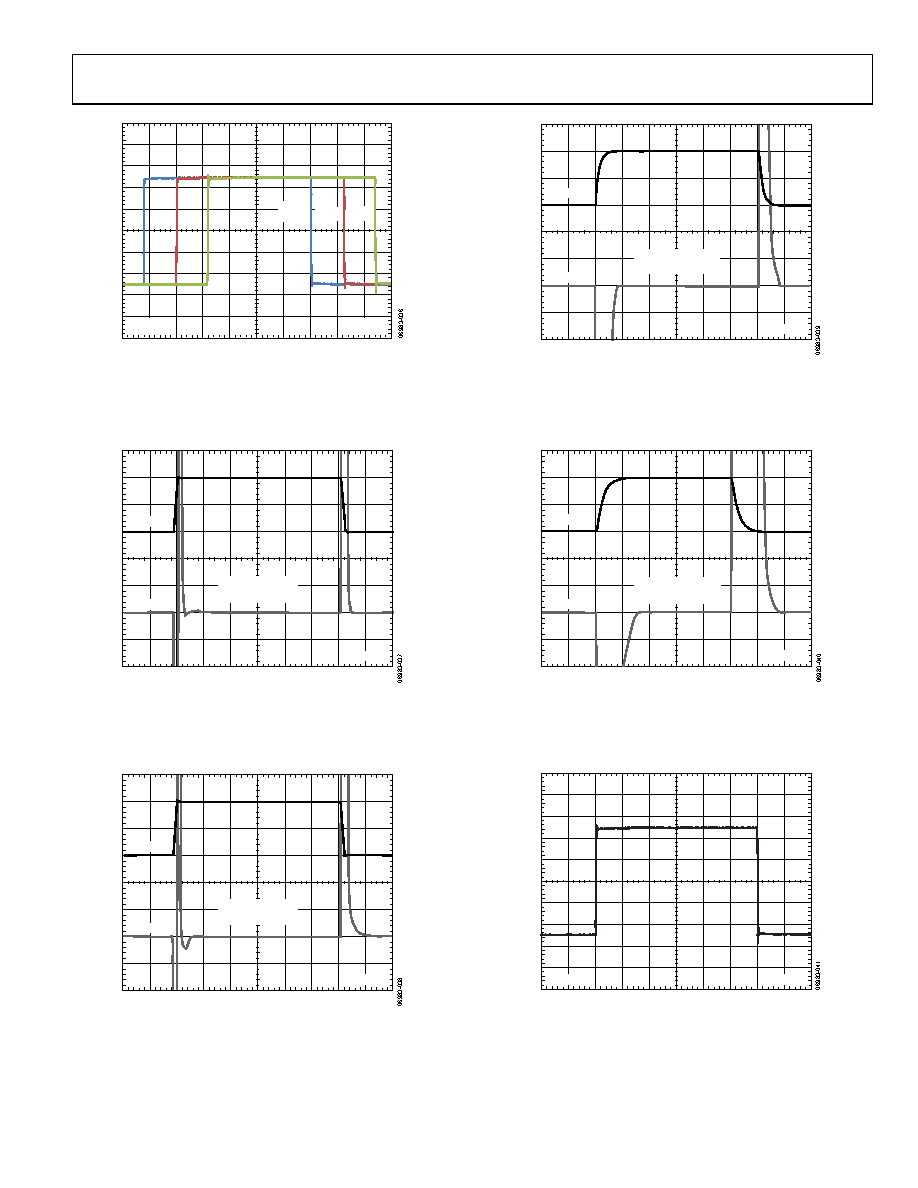

Figure 36. Small-Signal Pulse Response for Various Capacitive Loads, G = 1

5V/DIV

2µs/DIV

0.002%/DIV

664ns TO 0.01%

744ns TO 0.001%

TIME (µs)

Figure 37. Large-Signal Pulse Response and Settling Time, G = 1, RL = 10 kΩ

5V/DIV

2µs/DIV

0.002%/DIV

656ns TO 0.01%

840ns TO 0.001%

TIME (µs)

Figure 38. Large-Signal Pulse Response and Settling Time,

G = 10, RL = 10 kΩ

5V/DIV

2µs/DIV

0.002%/DIV

1392ns TO 0.01%

1712ns TO 0.001%

TIME (µs)

Figure 39. Large-Signal Pulse Response and Settling Time,

G = 100, RL = 10 kΩ

5V/DIV

10µs/DIV

0.002%/DIV

12.88µs TO 0.01%

16.64µs TO 0.001%

TIME (µs)

Figure 40. Large-Signal Pulse Response and Settling Time,

G = 1000, RL = 10 kΩ

20mV/DIV

2µs/DIV

Figure 41. Small-Signal Response,

G = 1, RL = 2 kΩ, CL = 100
