Section 7 DMA Controller (DMAC)

Rev.1.00 Jun. 07, 2006 Page 379 of 1102

REJ09B0294-0100

(6) Activation Timing by

DREQ Low Level with NRD = 1

When the NRD bit in DMDR is set to 1, the timing of receiving the next transfer request is

delayed for one cycle.

Figure 7.33 shows an example of normal transfer mode activated by the

DREQ signal low level

with NRD = 1.

The

DREQ signal is sampled every cycle from the next rising edge of the Bφ signal immediately

after the DTE bit write cycle.

When a low level of the

DREQ signal is detected while a transfer request by the DREQ signal is

enabled, a transfer request is held in the DMAC. When the DMAC is activated, the transfer

request is cleared. Receiving the next transfer request resumes after completion of the write cycle

and then a low level of the

DREQ signal is detected. This operation is repeated until the transfer is

completed.

Duration of transfer

request disabled

Transfer

source

Transfer

destination

Transfer

destination

Transfer

source

Bus released

DMA read

cycle

DMA read

cycle

DMA read

cycle

DMA read

cycle

DREQ

Address bus

Channel

[1]

[2]

[3]

[4]

[5]

[6]

[7]

Transfer request enable resumed

[1]

After DMA transfer request is enabled, a low level of the

DREQ signal is detected at the rising edge of the Bφ signal and a transfer

request is held.

[2][5] The DMAC is activated and the transfer request is cleared.

[3][6] A DMA cycle is started.

[4][7] Transfer request enable is resumed one cycle after completion of the write cycle.

(A low level of the

DREQ signal is detected at the rising edge of the Bφ signal and a transfer request is held. This is the same as [1].)

Request

Min. of 3 cycles

Duration of transfer request

disabled which is extended

by NRD

Duration of transfer request

disabled which is extended

by NRD

Duration of transfer

request disabled

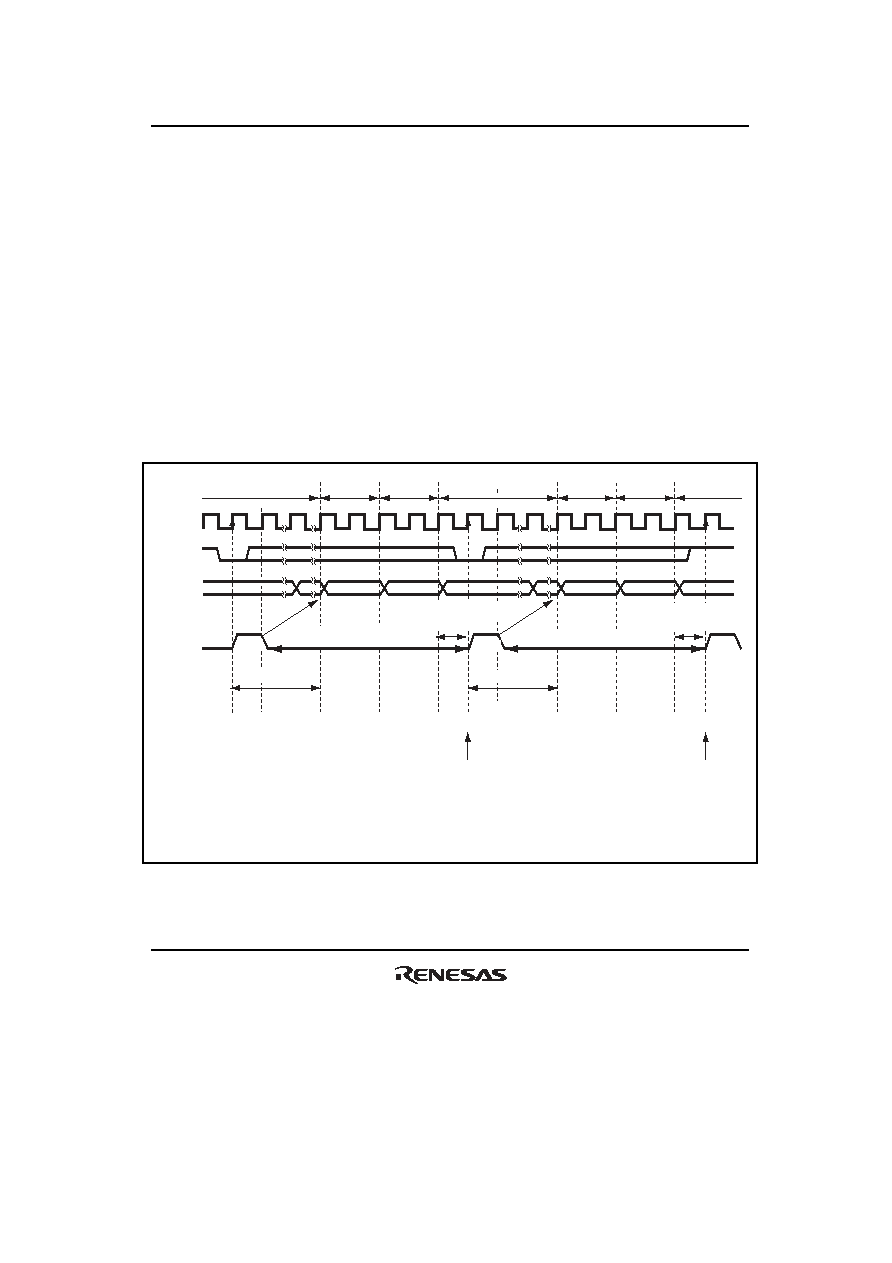

Figure 7.33 Example of Transfer in Normal Transfer Mode Activated

DREQ Low Level with NRD = 1
