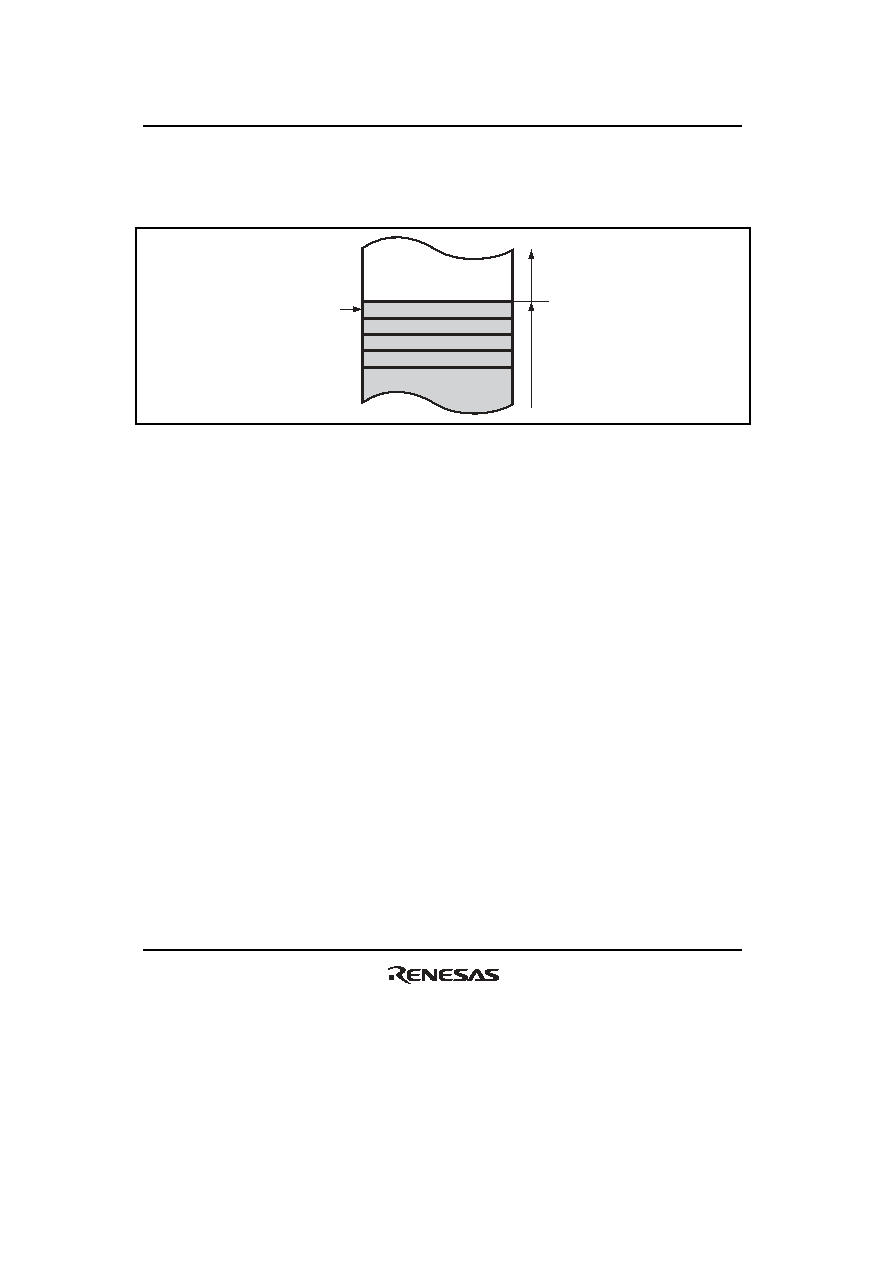

Section 2 CPU
Rev.1.00 Jun. 07, 2006 Page 32 of 1102
REJ09B0294-0100
General register ER7 has the function of stack pointer (SP) in addition to its general-register
function, and is used implicitly in exception handling and subroutine branches. Figure 2.11 shows
the stack.
Free area
Stack area
SP (ER7)
Figure 2.11 Stack
2.5.2
Program Counter (PC)
PC is a 32-bit counter that indicates the address of the next instruction the CPU will execute. The
length of all CPU instructions is 16 bits (one word) or a multiple of 16 bits, so the least significant
bit is ignored. (When the instruction code is fetched, the least significant bit is regarded as 0.
