Section 8 Data Transfer Controller (DTC)
Rev.1.00 Jun. 07, 2006 Page 412 of 1102
REJ09B0294-0100
Clock
Address
DTC activation
request
DTC request
BB
W
R
W
Clock
Address
DTC activation
request
DTC request
WW
L
R
W
Clock
Address
DTC activation
request
DTC request
BB
L
W
R
W
[Example 1: When an odd address and even address are specified in SAR and DAR, respectively, and when the data size of transfer is specified as word]
[Example 2: When an odd address and address 4n are specified in SAR and DAR, respectively, and when the data size of transfer is specified as longword]
[Example 3: When address 4n + 2 and address 4n are specified in SAR and DAR, respectively, and when the data size of transfer is specified as longword]
Vector read
Transfer information
read
Data transfer Transfer information
write
Vector read
Transfer information
read
Data transfer Transfer information
write
Vector read
Transfer information
read
Data transfer
Transfer information
write

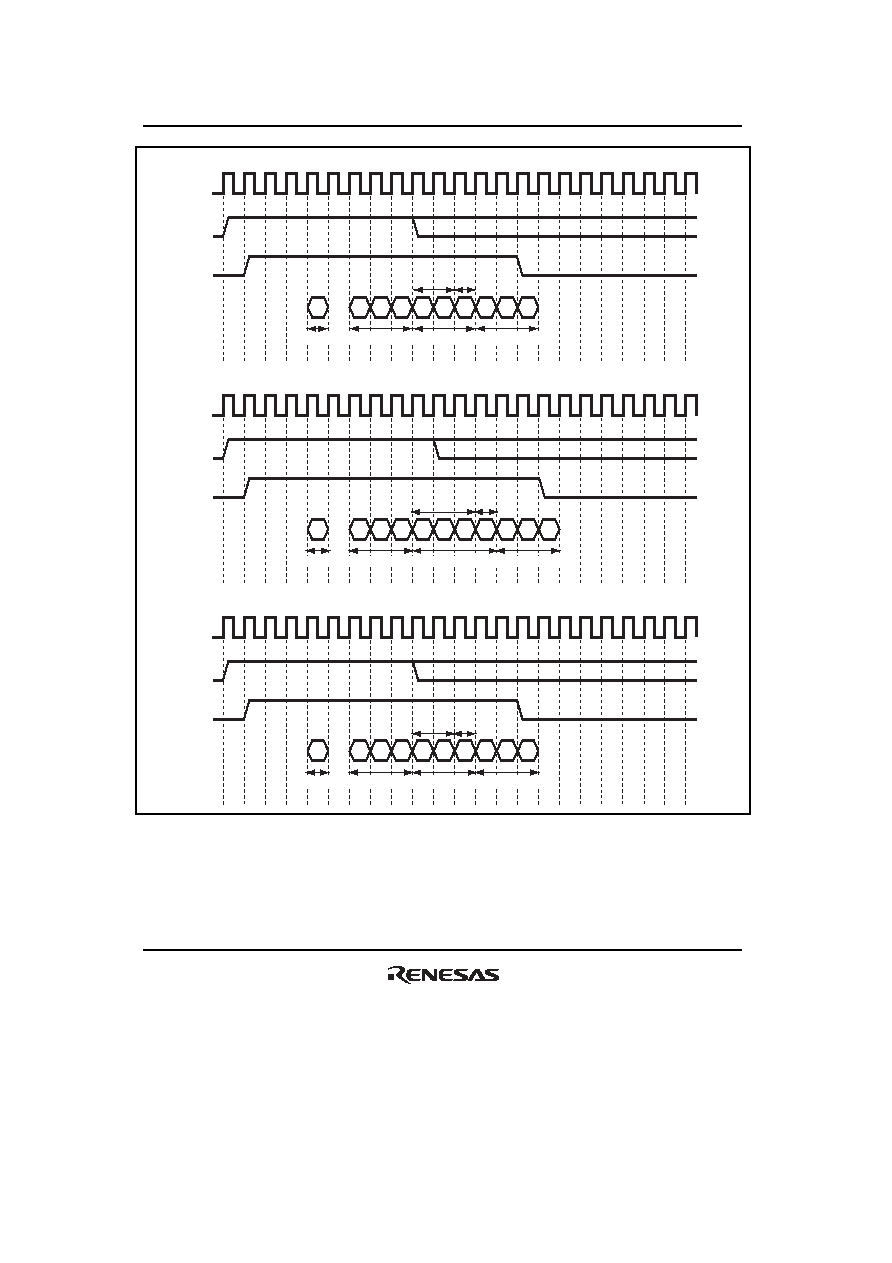

Figure 8.5 Bus Cycle Division Example
