Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 571 of 1102
REJ09B0294-0100
(3) TCFV Flag/TCFU Flag Setting Timing

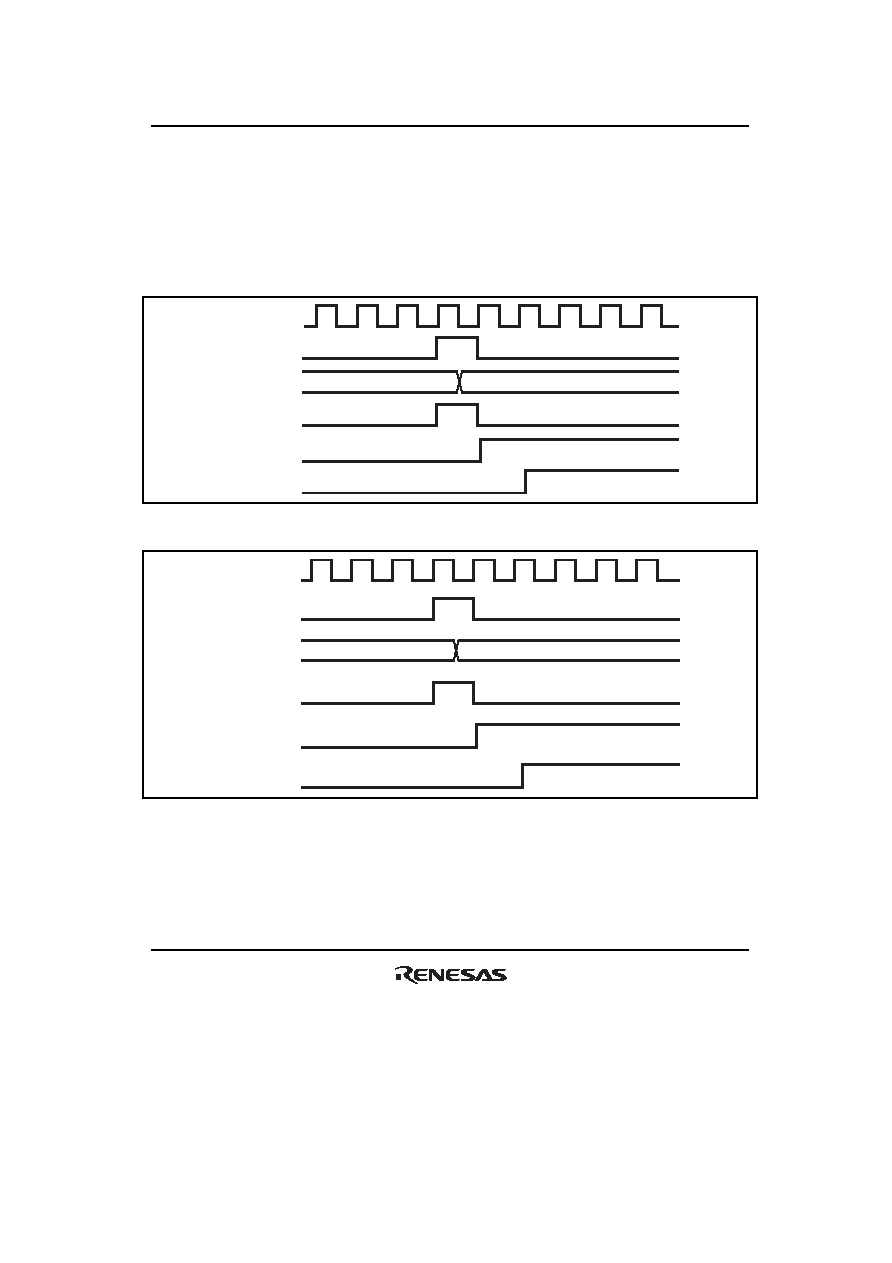

Figure 10.40 shows the timing for setting of the TCFV flag in TSR by overflow occurrence, and
the TCIV interrupt request signal timing.
Figure 10.41 shows the timing for setting of the TCFU flag in TSR by underflow occurrence, and
the TCIU interrupt request signal timing.
H'FFFF
P
φ
TCNT input
clock
TCNT
(overflow)
Overflow signal
TCFV flag
TCIV interrupt
H'0000
Figure 10.40 TCIV Interrupt Setting Timing
H'0000
P
φ
TCNT input
clock
TCNT
(underflow)
Underflow signal
TCFU flag
TCIU interrupt
H'FFFF
Figure 10.41 TCIU Interrupt Setting Timing
