Section 6 Bus Controller (BSC)

Rev.1.00 Jun. 07, 2006 Page 133 of 1102

REJ09B0294-0100

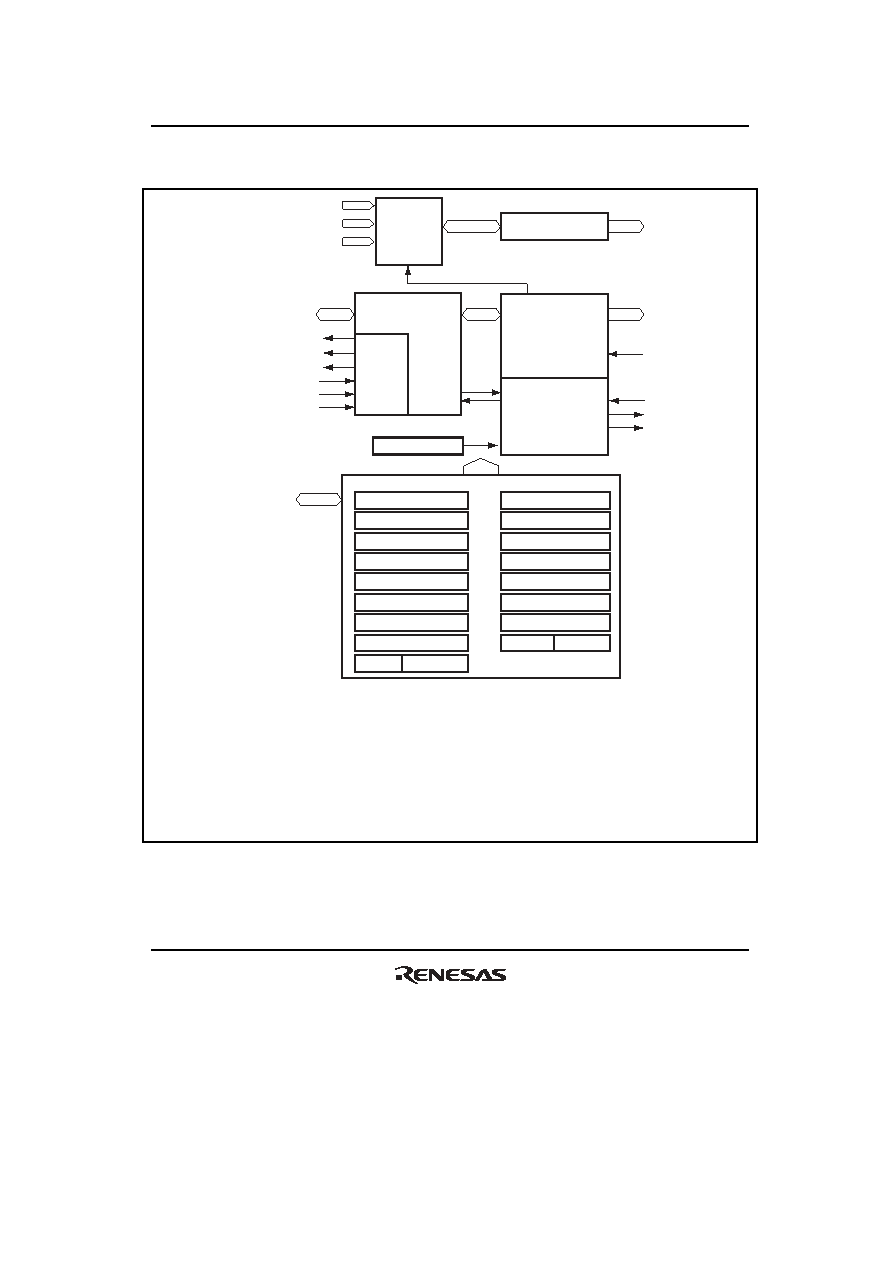

A block diagram of the bus controller is shown in figure 6.1.

Address

selector

Area decoder

Internal bus

control unit

Internal data bus

Internal bus

control signals

External bus

control unit

External bus

arbiter

Internal

bus

arbiter

CPU address bus

CS7 to CS0

WAIT

BREQ

BACK

BREQO

DTC address bus

CPU bus acknowledge signal

DTC bus acknowledge signal

CPU bus request signal

DTC bus request signal

External bus

control signals

Control registers

ABWCR

ASTCR

WTCRA

WTCRB

RDNCR

CSACR

IDLCR

BCR1

BCR2

RTCNT

RTCOR

ENDIANCR

SRAMCR

BROMCR

MPXCR

[Legend]

ABWCR:

ASTCR:

WTCRA:

WTCRB:

RDNCR:

CSACR:

IDLCR:

BCR1:

BCR2:

ENDIANCR:

Bus width control register

Access state control register

Wait control register A

Wait control register B

Read strobe timing control register

CS assertion period control register

Idle control register

Bus control register 1

Bus control register 2

Endian control register

SRAMCR:

BROMCR:

MPXCR:

DRAMCR:

DRACCR:

SDCR:

REFCR:

RTCNT:

RTCOR:

SRAM mode control register

Burst ROM interface control register

Address/data multiplexed I/O control register

DRAM control register

DRAM access control register

Synchronous DRAM control register

Refresh control register

Refresh timer counter

Refresh time constant register

DMAC address bus

DMAC bus acknowledge signal

DMAC bus request signal

DRAMCR

DRACCR

SDCR

REFCR

Refresh timer

Figure 6.1 Block Diagram of Bus Controller
