Section 6 Bus Controller (BSC)
Rev.1.00 Jun. 07, 2006 Page 201 of 1102
REJ09B0294-0100
6.6.5
Read Strobe (
RD) Timing
The read strobe timing can be modified in area units by setting bits RDN7 to RDN0 in RDNCR to
1.
Note that the
RD timing with respect to the DACK rising edge will change if the read strobe
timing is modified by setting RDNn to 1 when the DMAC is used in the single address mode.
Figure 6.22 shows an example of timing when the read strobe timing is changed in the basic bus 3-
state access space.
Bus cycle
T
1
T
2
Address bus
B
φ
CSn
AS
RD
T
3
Data bus
RD
Data bus
RDNn = 0
RDNn = 1
BS
RD/
WR
DACK
1. n = 0 to 7
2. When DKC = 0
Notes:

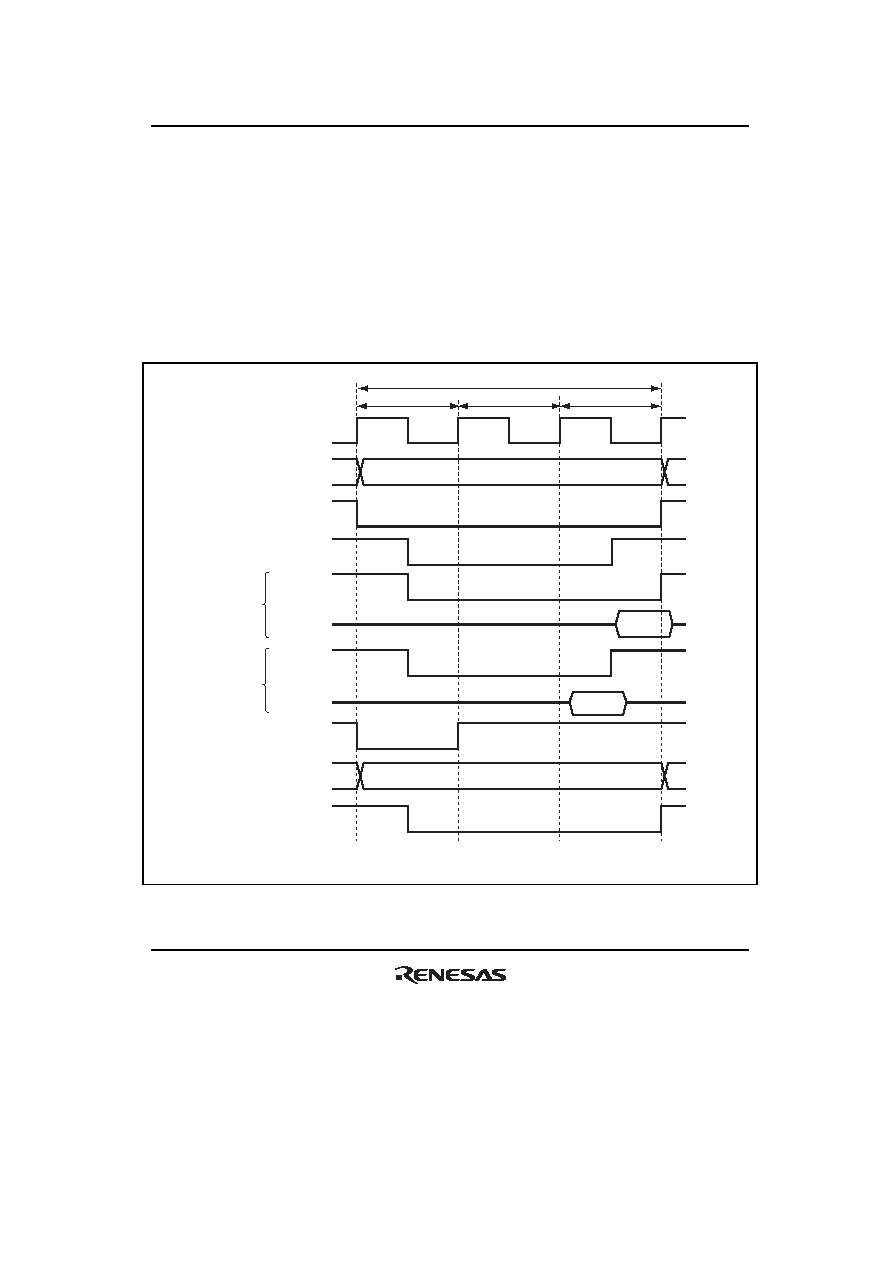

Figure 6.22 Example of Read Strobe Timing
