Section 6 Bus Controller (BSC)
Rev.1.00 Jun. 07, 2006 Page 227 of 1102
REJ09B0294-0100
6.9.10
DACK Signal Output Timing
For DMAC single address transfers, the
DACK signal assert timing can be modified by using the
DKC bit in BCR1.

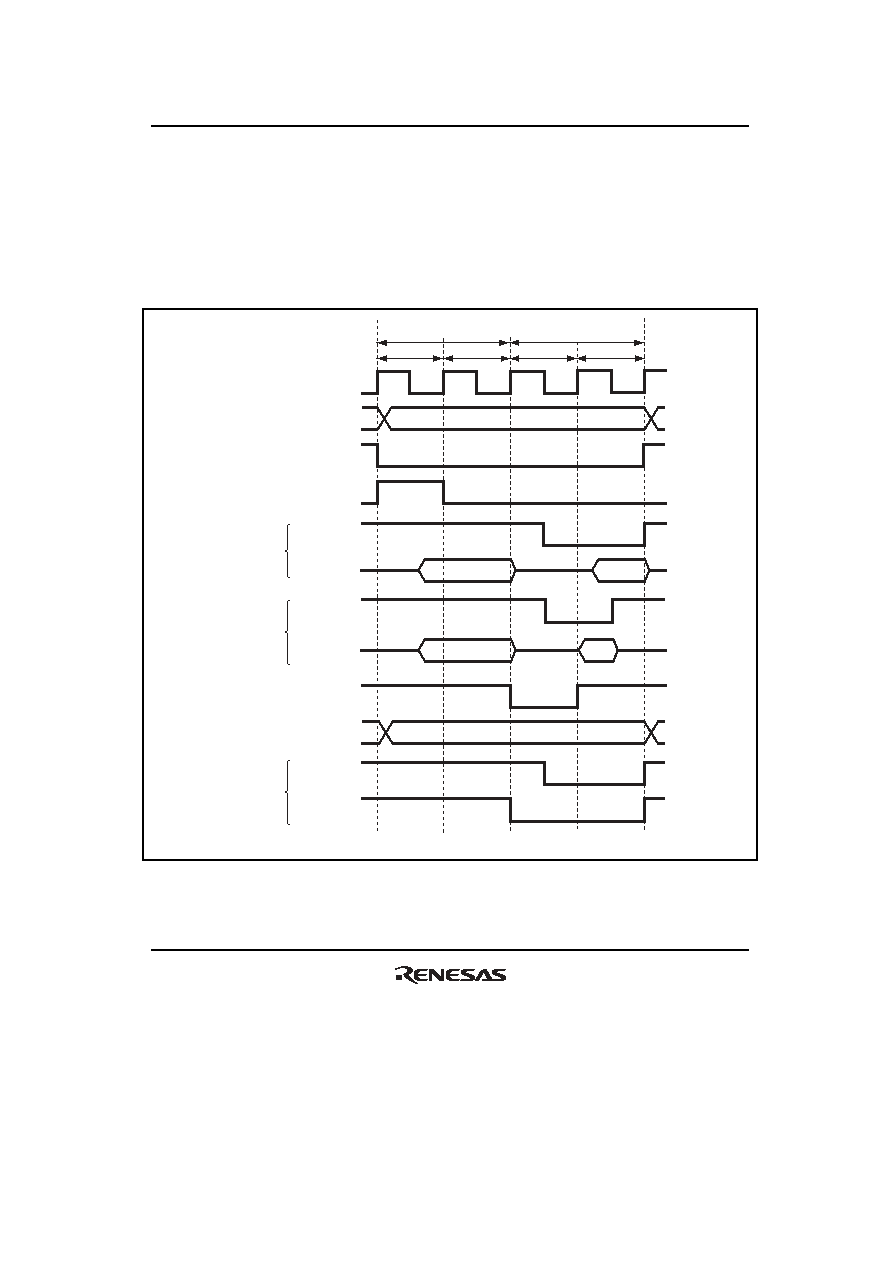

Figure 6.37 shows the
DACK signal output timing. Setting the DKC bit to 1 asserts the DACK
signal a half cycle earlier.
T
ma1
T
ma2
T
2
T
1
B
φ
DKC = 0
DKC = 1
Address bus
D15 to D0
D15 to D0
Address cycle
Data cycle
CSn
RD
AH
RD
DACK
BS
RD/
WR
Note: n = 3 to 7
Address
Read data
RDNn = 0
RDNn = 1
Address
Read
data
Figure 6.37
DACK Signal Output Timing
