3-100

TELCOM SEMICONDUCTOR, INC.

TC7109

TC7109A

12-BIT

µP-COMPATIBLE

ANALOG-TO-DIGITAL CONVERTERS

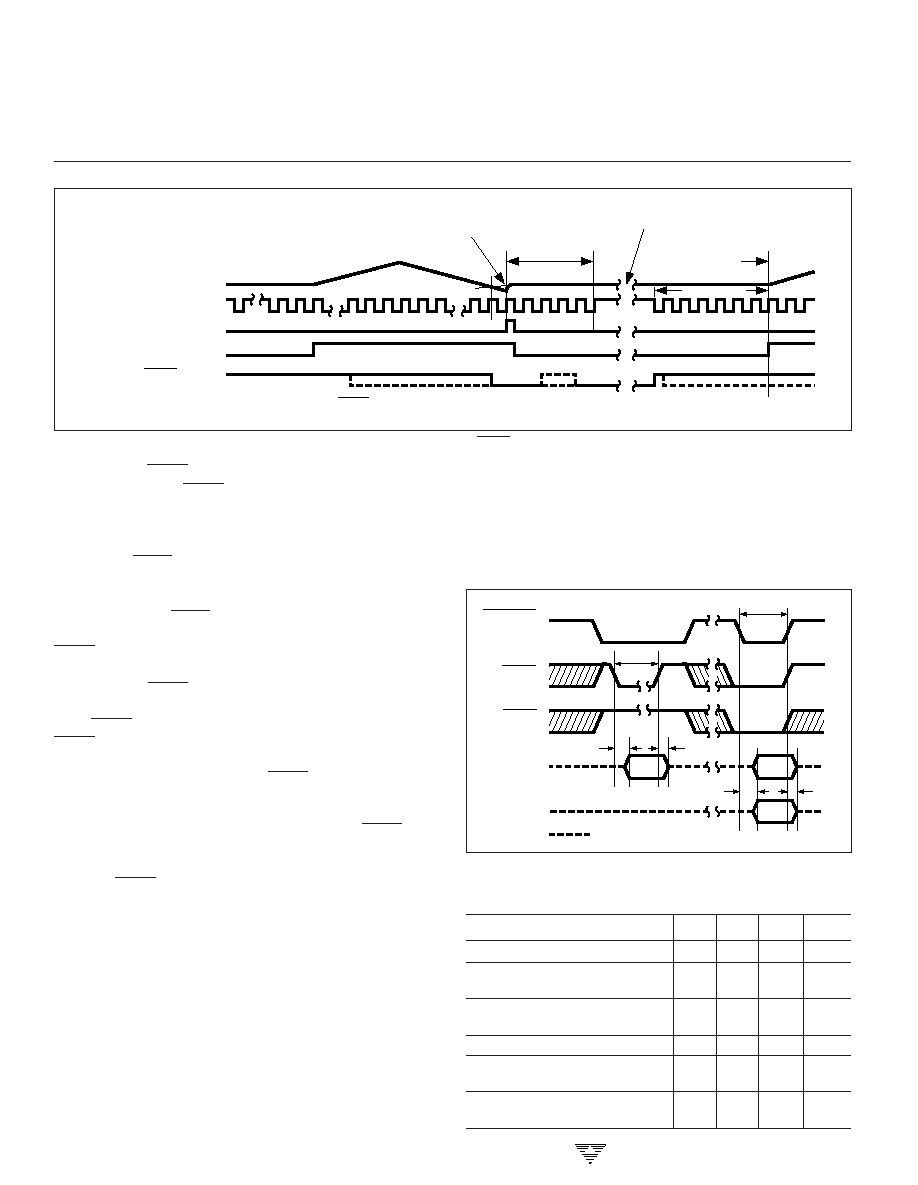

Figure 5.

TC7109A RUN/HOLD Operation

The RUN/HOLD input may be used to shorten conver-

sion time. If RUN/HOLD goes LOW any time after zero

crossing in the deintegrate mode, the circuit will jump to

auto-zero and eliminate that portion of time normally spent

in deintegrate.

If RUN/HOLD stays or goes LOW, the conversion will

complete with minimum time in deintegrate. It will stay in

auto-zero for the minimum time and wait in auto-zero for a

HIGH at the RUN/HOLD input. As shown in Figure 5, the

STATUS output will go HIGH 7 clock periods after RUN/

HOLD is changed to HIGH, and the converter will begin the

integrate phase of the next conversion.

The RUN/HOLD input allows controlled conversion in-

terface. The converter may be held at idle in auto-zero with

RUN/HOLD LOW. The conversion is started when RUN/

HOLD goes HIGH, and the new data is valid when the

STATUS output goes LOW (or is transferred to the UART;

see "Handshake Mode"). RUN/HOLD may now go LOW,

terminating deintegrate and ensuring a minimum auto-zero

time before stopping to wait for the next conversion. Conver-

sion time can be minimized by ensuring RUN/HOLD goes

LOW during deintegrate, after zero crossing, and goes

HIGH after the hold point is reached. The required activity on

the RUN/HOLD input can be provided by connecting it to the

buffered oscillator output. In this mode, the input value

measured determines the conversion time.

Direct Mode

The data outputs (bits 1 through 8, low-order bytes; bits

9 through 12, polarity and overrange high-order bytes) are

accessible under control of the byte and chip enable termi-

nals as inputs with the MODE pin at a LOW level. These

three inputs are all active LOW. Internal pull-up resistors are

provided for an inactive HIGH level when left open. When

chip enable is LOW, a byte-enable input LOW will allow the

outputs of the byte to become active. A variety of parallel

data accessing techniques may be used, as shown in the

"Interfacing" section. (See Figure 6 and Table 1.)

The access of data should be synchronized with the

conversion cycle by monitoring the STATUS output. This

prevents accessing data while it is being updated and

eliminates the acquisition of erroneous data.

Symbol

Description

Min

Typ

Max

Units

tBEA

Byte Enable Width

200

500

nsec

tDAB

Data Access Time

150

300

nsec

From Byte Enable

tDHB

Data Hold Time

150

300

nsec

From Byte Enable

tCEA

Chip Enable Width

300

500

nsec

tDAC

Data Access Time

200

400

nsec

From Chip Enable

tDHC

Data Hold Time

200

400

nsec

From Chip Enable

Table 1. TC7109A Direct Mode Timing Requirements

Figure 6.

TC7109A Direct Mode Output Timing

INTEGRATOR OUTPUT

INTERNAL CLOCK

DETERMINATED

AT ZERO CROSSING

DETECTION

AUTO-ZERO

PHASE I

MIN 1790 COUNTS

MAX 2041 COUNTS

STATIC IN

HOLD STATE

INT

PHASE II

RUN/HOLD input is ignored until end of auto-zero phase.

*NOTE:

INTERNAL LATCH

STATUS OUTPUT

RUN/HOLD INPUT

7 COUNTS

= HIGH IMPEDANCE

CE/LOAD

AS INPUT

tCEA

tBEA

HBEN

AS INPUT

tDAB

LBEN

AS INPUT

HIGH-BYTE

DATA

LOW-BYTE

DATA

VALID

tDAC

tDHC

DATA

VALID

DATA

VALID
