TC7109CLW datasheet(13/21 Pages) TELCOM

13 / 21 page

3-103

TELCOM SEMICONDUCTOR, INC.

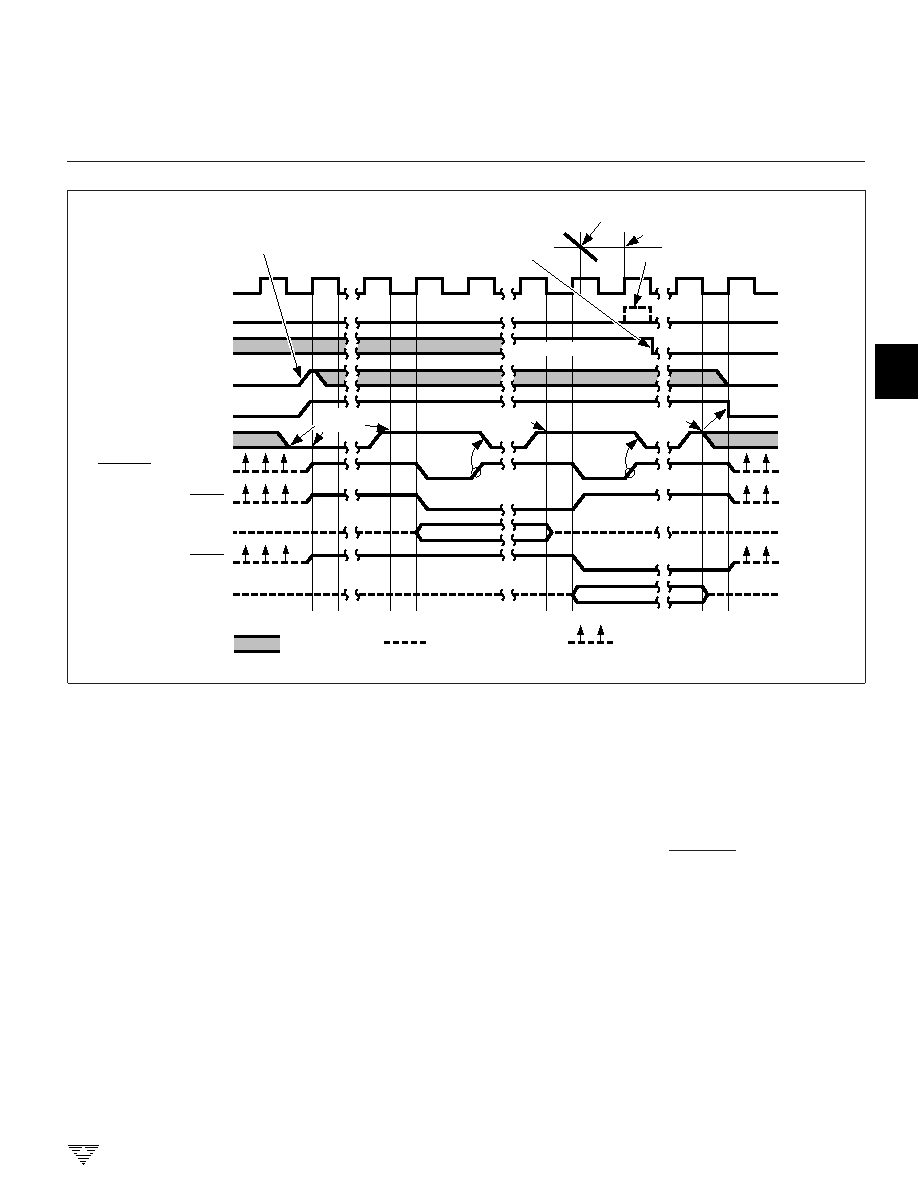

Figure 9. TC7109A Handshake Triggered by MODE Input

DATA VALID

TERMINATES

UART MODE

= THREE-STATE

HIGH IMPEDANCE

INTERNAL CLOCK

INTERNAL LATCH

STATUS OUTPUT

MODE INPUT

INTERNAL MODE

SEND INPUT

CE/LOAD AS OUTPUT

HBEN

HIGH-BYTE DATA

LBEN

LOW-BYTE DATA

= DON'T CARE

= THREE-STATE

WITH PULL-UP

UART

NORM

SEND

SENSED

SEND

SENSED

ZERO CROSSING DETECTED

ZERO CROSSING OCCURS

STATUS OUTPUT UNCHANGED

IN UART MODE

LATCH PULSE INHIBITED

IN UART MODE

POSITIVE TRANSITION

CAUSES ENTRY INTO

UART MODE

DE PHASE III

SEND

SENSED

Oscillator

The oscillator may be overdriven, or may be operated as

an RC or crystal oscillator. The OSCILLATOR SELECT

input optimizes the internal configuration of the oscillator for

RC or crystal operation. The OSCILLATOR SELECT input

is provided with a pull-up resistor. When the OSCILLATOR

SELECT input is HIGH or left open, the oscillator is config-

ured for RC operation. The internal clock will be the same

frequency and phase as the signal at the BUFFERED

OSCILLATOR OUTPUT. Connect the resistor and capaci-

tor as in Figure 10. The circuit will oscillate at a frequency

given by f = 0.45/RC. A 100 k

Ω resistor is recommended for

useful ranges of frequency. The capacitor value should be

chosen such that 2048 clock periods are close to an integral

multiple of the 60 Hz period for optimum 60 Hz line rejection.

With OSCILLATOR SELECT input LOW, two on-chip

capacitors and a feedback device are added to the oscillator.

In this configuration, the oscillator will operate with most

crystals in the 1 to 5 MHz range with no external components

(Figure 11). The OSCILLATOR SELECT input LOW inserts

a fixed

58 divider circuit between the BUFFERED OSCIL-

LATOR OUTPUT and the internal clock. A 3.58 MHz TV

crystal gives a division ratio providing an integration time

given by:

t = (2048 clock periods)

= 33.18 ms

The error is less than 1% from two 60 Hz periods, or

33.33 ms, which will give better than 40 dB, 60 Hz rejection.

The converter will operate reliably at conversion rates up

to 30 per second, corresponding to a clock frequency of

245.8 kHz.

When the oscillator is to be overdriven, the OSCILLA-

TOR OUTPUT should be left open, and the overdriving

signal should be applied at the OSCILLATOR INPUT. The

internal clock will be of the same duty cycle, frequency and

phase as the input signal. When the OSCILLATOR SELECT

is at GND, the clock will be 1/58 of the input frequency.

3.58 MHz

TC7109

TC7109A

12-BIT

µP-COMPATIBLE

ANALOG-TO-DIGITAL CONVERTERS
