SSM2804
Rev. 0 | Page 6 of 36
I2C TIMING CHARACTERISTICS
Table 3.
Parameter
Limit
Unit
Description
tMIN
tMAX
tSCS
600
ns
Start condition setup time
tSCH
600
ns
Start condition hold time
tPH
600
ns
SCL pulse width high
tPL
1.3
μs
SCL pulse width low
fSCL
0
526
kHz
SCL frequency
tDS
100
ns
Data setup time
tDH
900
ns
Data hold time
tRT
300
ns
SDA and SCL rise time
tFT
300
ns
SDA and SCL fall time
tHCS
600
ns
Stop condition setup time

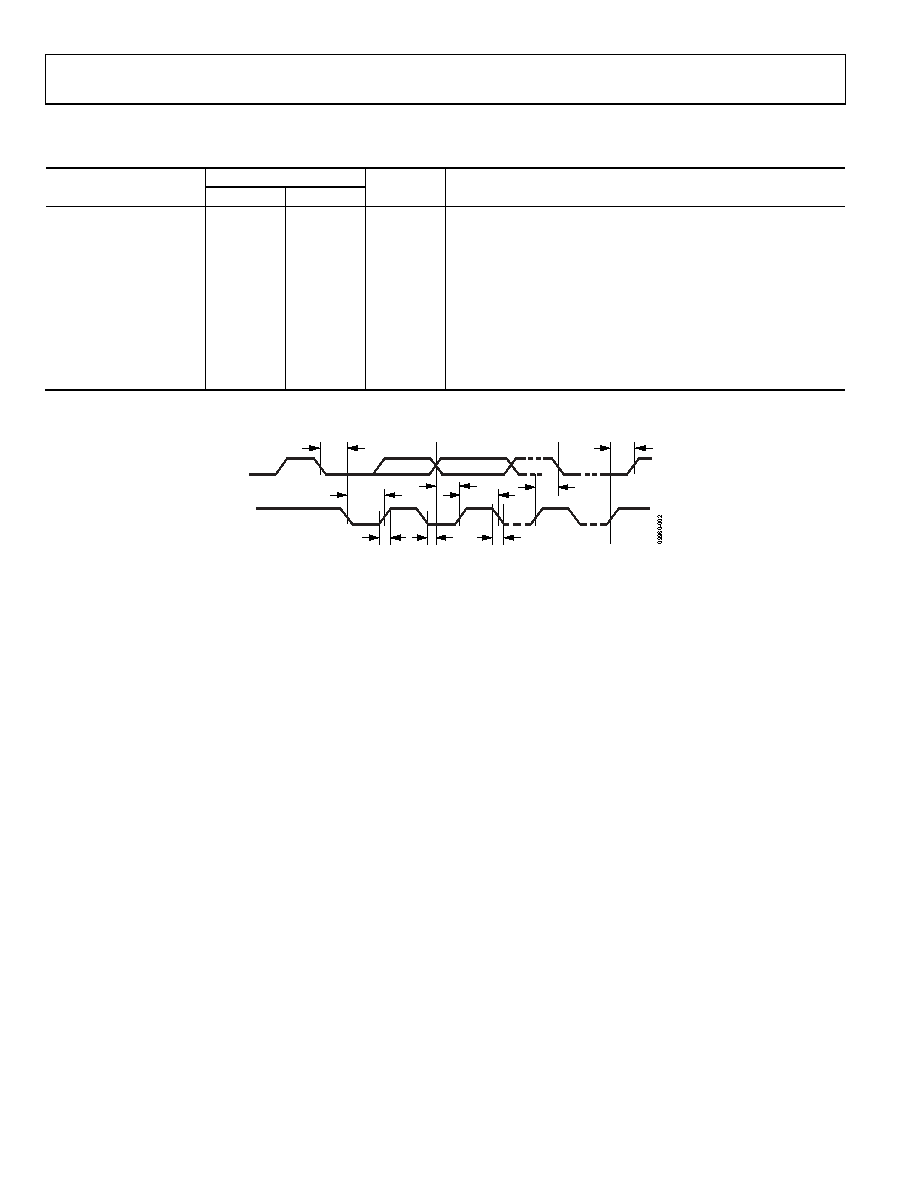

Timing Diagram
SCL
SDA
tRT
tSCH
tPL
tDS
tPH
tDH
tFT
tSCS
tHCS
Figure 2. I2C Timing
