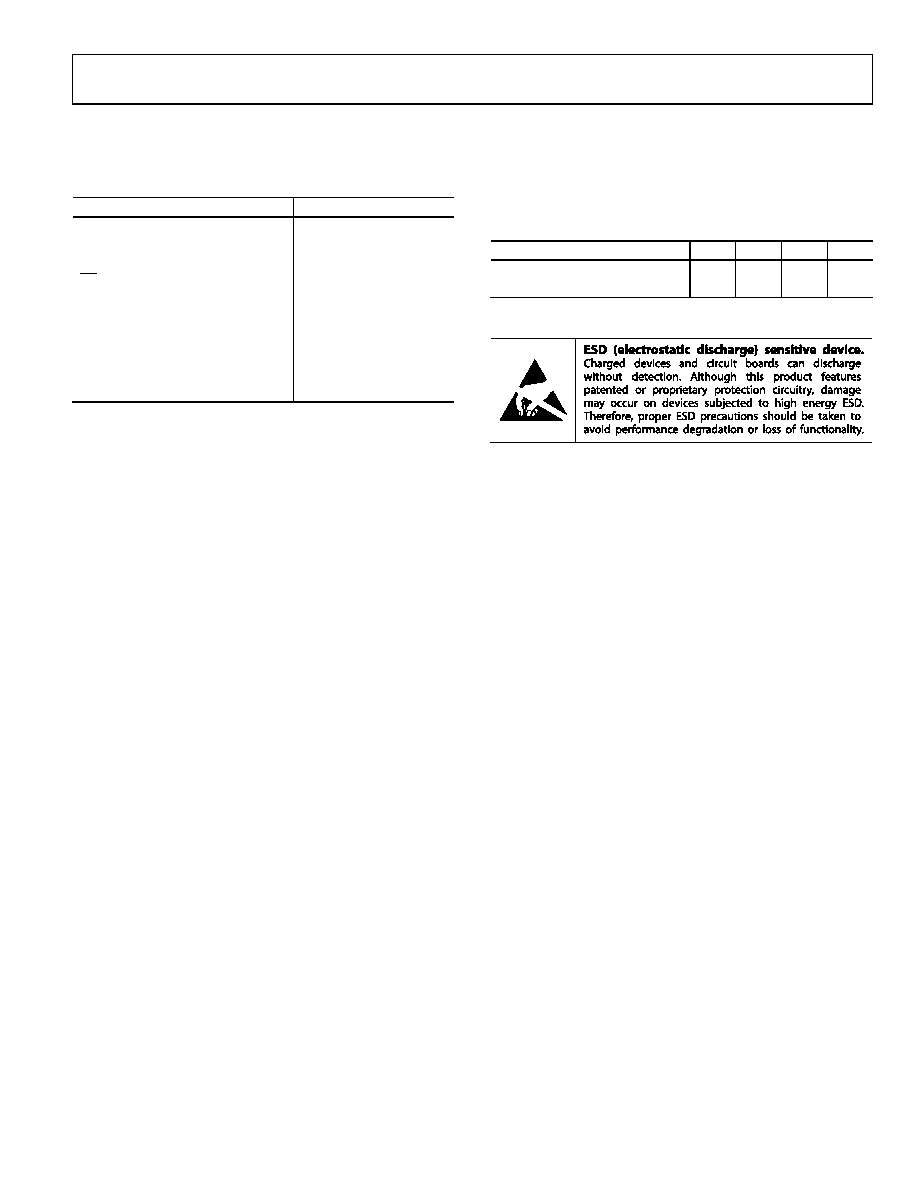

7 / 36 page

SSM2804

Rev. 0 | Page 7 of 36

ABSOLUTE MAXIMUM RATINGS

TA = 25°C, unless otherwise noted.

THERMAL RESISTANCE

θJA is specified for the worst-case conditions, that is, a device

soldered in a circuit board for surface-mount packages.

Table 4.

Parameter

Rating

Analog Supply Voltage (AVDD)

−0.3 V to +3.6 V

Speaker Supply Voltage (PVDD)

−0.3 V to +3.6 V

Input Voltage

VDD

SD, SCL, SDA, RCV+, RCV−

−0.3 V to +6.0 V

INA1, INA2, INB1, INB2, INC1, INC2

−0.3 V to AVDD + 0.3 V

ESD (HBM) on Headphone Output

8 kV

Storage Temperature Range

−65°C to +150°C

Operating Temperature Range

−40°C to +85°C

Junction Temperature Range

−65°C to +165°C

Lead Temperature (Soldering, 60 sec)

300°C

Table 5. Thermal Resistance

Package Type

PCB

θJA

θJB

Unit

30-Ball, 2.5 mm × 3.0 mm WLCSP

1S0P

162

°C/W

2S0P

°C/W

ESD CAUTION

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.
