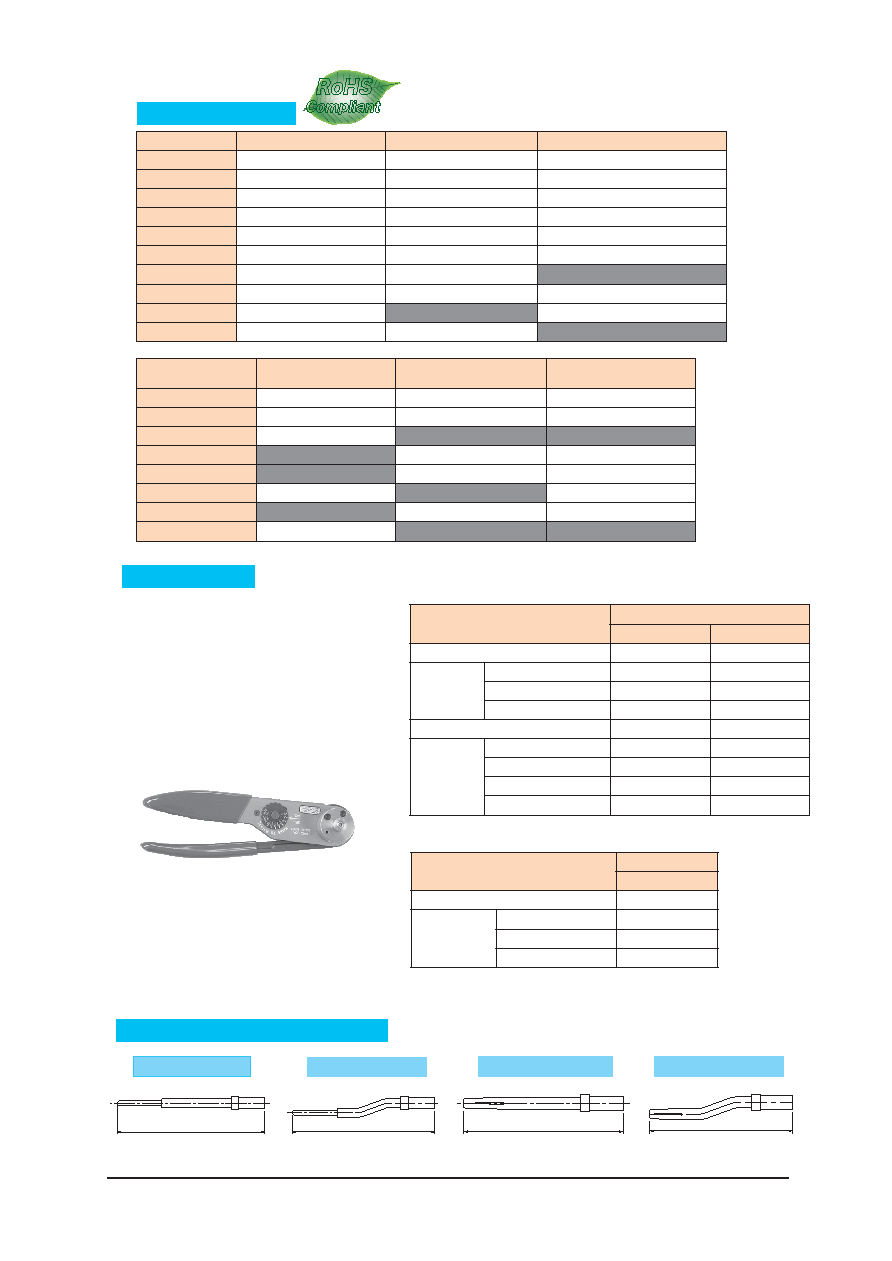

30.85

29.35

25.9

24.4

Item

Conductor Size

AWG 22 - AWG 24 AWG 18 - AWG 20

A set of crimp tool for straight contacts 357J-19811

357J-17917

Contents

Hand Tool

357J-12610

Locator

357J-18918

Inspection Gauge 2

357J-19779-2

357J-17900-2

A set of crimp tool for angle contacts

357J-19812

357J-17898

Contents

Hand Tool

357J-12610

Locator

357J-17899

Inspection Gauge 1

357J-19779-1

357J-17900-1

Inspection Gauge 2

357J-19779-2

357J-17900-2

Item

Conductor Size

AWG 18-AWG 20

A set of crimp tool for angle contacts

357J-21598

Contents

Hand Tool

357J-12610

Locator

357J-17899

Inspection Gauge 2

357J-17900-2

・For DeviceNet Plug and Jack

Highly reliable crimp termination can be made for

the straight plug and the straight jack. Two kinds

of crimp tools are needed since a connector has a

straight contact and angle contacts of which style

are different. However the locater can be removed

and you can use one hand tool for termination if

you have two locators each for the straight contact

and the angle contacts.

・For CC-Link Plug and Jack

The connectors for CC-Link network will have four

(4) angle contacts and the style of contact is only

one. It is feasible for you to terminate the cable to

the contacts by one kind of the crimp tool for angle

contacts.

Straight Pin Contact

Angle Pin Contact

Straight Socket Contact

Angle Socket Contact

RoHS

Compliant

RoHS

Compliant

Item

Plug (With Socket Contacts)

Jack (With Pin Contacts)

Resistor (With Pin or Socket Contacts)

Insulator

Plastic(UL94V-0)/Black

Contact

Copper Alloy/Gold Plating

Coupling Ring

Copper Alloy/Nickel Plating

Copper Alloy/Gold Plating

Backshell Nut

Aluminum Alloy/Black

Contact Holder

Plastic(UL94V-0)/Black

Backshell

Plastic(UL94V-0)/Black

Clamp Nut

Plastic(UL94V-0)/Black

O-Ring

Synthetic Rubber/Black

Gasket

Synthetic Rubber/Black

Synthetic Rubber/Black for Socket

Bushing

Synthetic Rubber/Black

Item

“T”Tap

Receptacle

(With Pin Contacts)

Plug Receptacle

(With Socket Contacts)

Insulator

Plastic(UL94V-0)/Black

Contact

Copper Alloy/Gold Plating Copper Alloy/Gold Plating

Copper Alloy/Gold Plating

Coupling Ring

Zinc Alloy/Nickel Plating

Shell

Copper Alloy/Nickel Plating

Zinc Alloy/Nickel Plating

Nut Washer

Copper Alloy/Nickel Plating

Gasket(Mating Side)

Synthetic Rubber/Black

Gasket(Mounting Side)

Synthetic Rubber/Black

Overmolding Resin

Plastic(UL94V-0)/Black

MATERIAL/FINISH

CRIMP TOOL

◆ CONFIGURATION OF CONTACTS
