Data Sheet

ADA4510-2

Precision, 40 V, ±70 nV/°C, Rail-to-Rail Input and Output Op Amp with DigiTrim

Rev. B

DOCUMENT FEEDBACK

TECHNICAL SUPPORT

Information furnished by Analog Devices is believed to be accurate and reliable "as is". However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to

change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

FEATURES

►

Low offset voltage drift: ±70 nV/°C typical

►

Low offset voltage: ±5 μV typical, ±20 μV maximum

►

Low voltage noise: 1 μV p-p from 0.1 Hz to 10 Hz typical

►

Low voltage noise density: 5 nV/√Hz typical at f = 1 kHz

►

High common-mode rejection: 140 dB typical

►

Low input bias current: ±10 pA maximum

►

Wide gain bandwidth product: 10.4 MHz typical

►

High slew rate: 19 V/μs typical

►

Low THD: −134 dB at f = 1 kHz

►

Low quiescent supply current: 1.45 mA per amplifier typical

►

Wide supply voltage operation: 6 V to 40 V, ±3 V to ±20 V

►

Integrated EMI filter

►

Multiplexer compatible inputs

►

Rail-to-rail high impedance: differential and common-mode

►

Fast settling time

►

Rail-to-rail and output

►

No phase reversal

►

Heavy capacitive load drive capability: 1 nF

►

Wide specified temperature range: −40°C to +125°C

►

Available in 8-lead, SOIC_N and 8-lead, MSOP packages

APPLICATIONS

►

Multiplexed data acquisition systems

►

Electronic test and measurement

►

Automated test equipment

►

Medical instruments

►

Energy monitoring

►

Precision current sensing and precision buffer

►

Transimpedance amplifiers

GENERAL DESCRIPTION

The ADA4510-21 is a dual-channel, 40 V, high precision, low input

bias current, low offset voltage, low offset voltage drift, low noise,

rail-to-rail input and output operational amplifier that can be used at

any point of the signal chain, including sensing, conditioning, and

output drive. Through the use of Analog Devices, Inc., proprietary

DigiTrim™ technique, the ADA4510-2 achieves best-in-class low

offset drift (±70 nV/°C typical, ±500 nV/°C maximum) and low offset

voltage (±5 μV typical, ±20 μV maximum), simplifying temperature

calibrations in precision designs.

The ADA4510-2 delivers excellent DC precision and outstanding

AC performance, making it a top choice for a wide variety of

signal chain applications. By integrating a robust mux-compatible

architecture, the ADA4510-2 effectively solves common system

distortion and settling problems and provides the superior accuracy

required in multiplexed multichannel precision signal chains. The

ADA4510-2 is specified from −40°C to +85°C and −40°C to +125°C

and is available in an 8-lead, SOIC_N and 8-lead, MSOP.

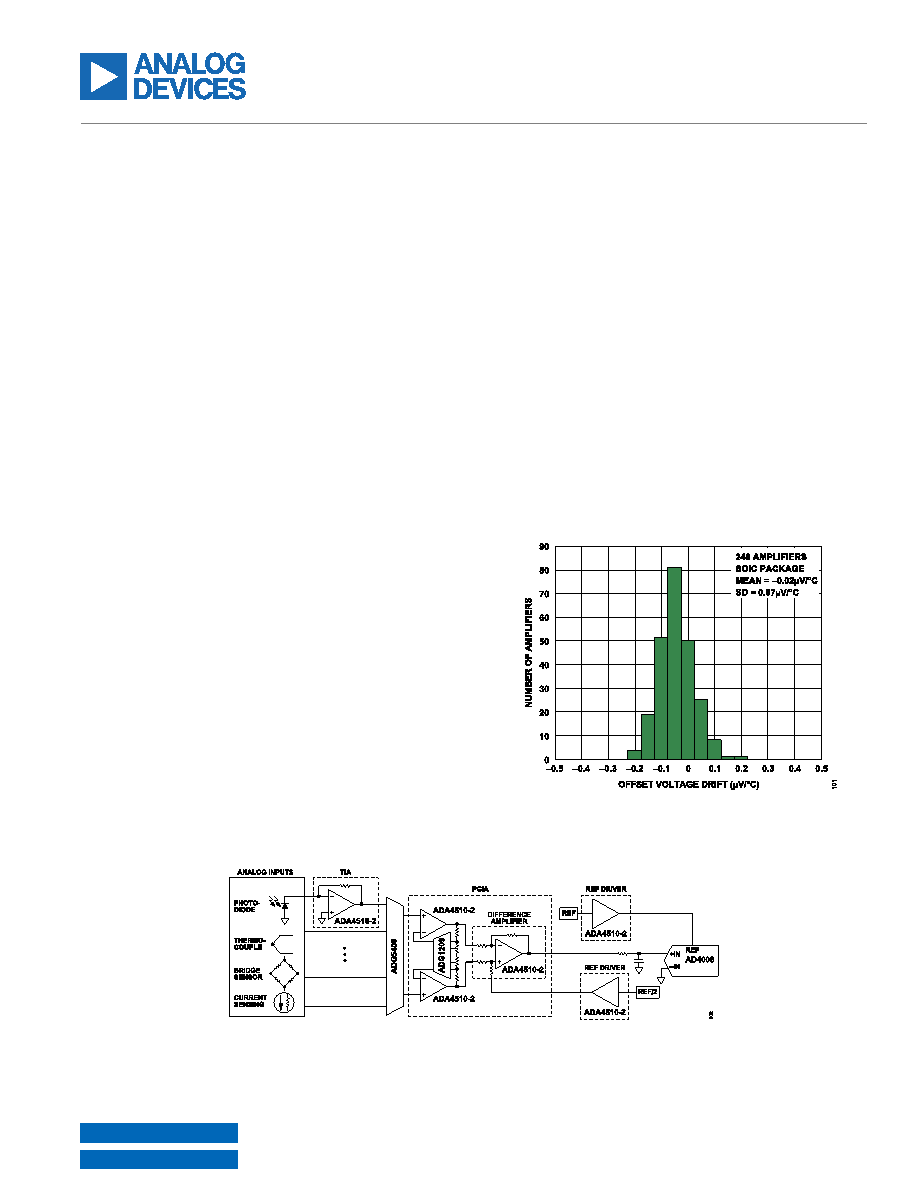

Figure 1. Ultralow Offset Voltage Drift for Precision Design

TYPICAL APPLICATION CIRCUIT

Figure 2. Multiplexed Data Acquisition Signal Chain

1 Protected by U.S. patent number 11,329,612; other patents pending.
