ADA4510-2ARMZ-R7 Scheda tecnica(PDF) 10 Page - Analog Devices

Il numero della parte	ADA4510-2ARMZ-R7

Spiegazioni elettronici	Precision, 40 V, ±70 nV/°C, Rail-to-Rail Input and Output Op Amp with DigiTrim

PDF	32 Pages

Scroll/Zoom	100%

Produttore elettronici	AD [Analog Devices]

Homepage	http://www.analog.com

Logo

10 / 32 page

Data Sheet

ADA4510-2

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

analog.com

Rev. B | 10 of 32

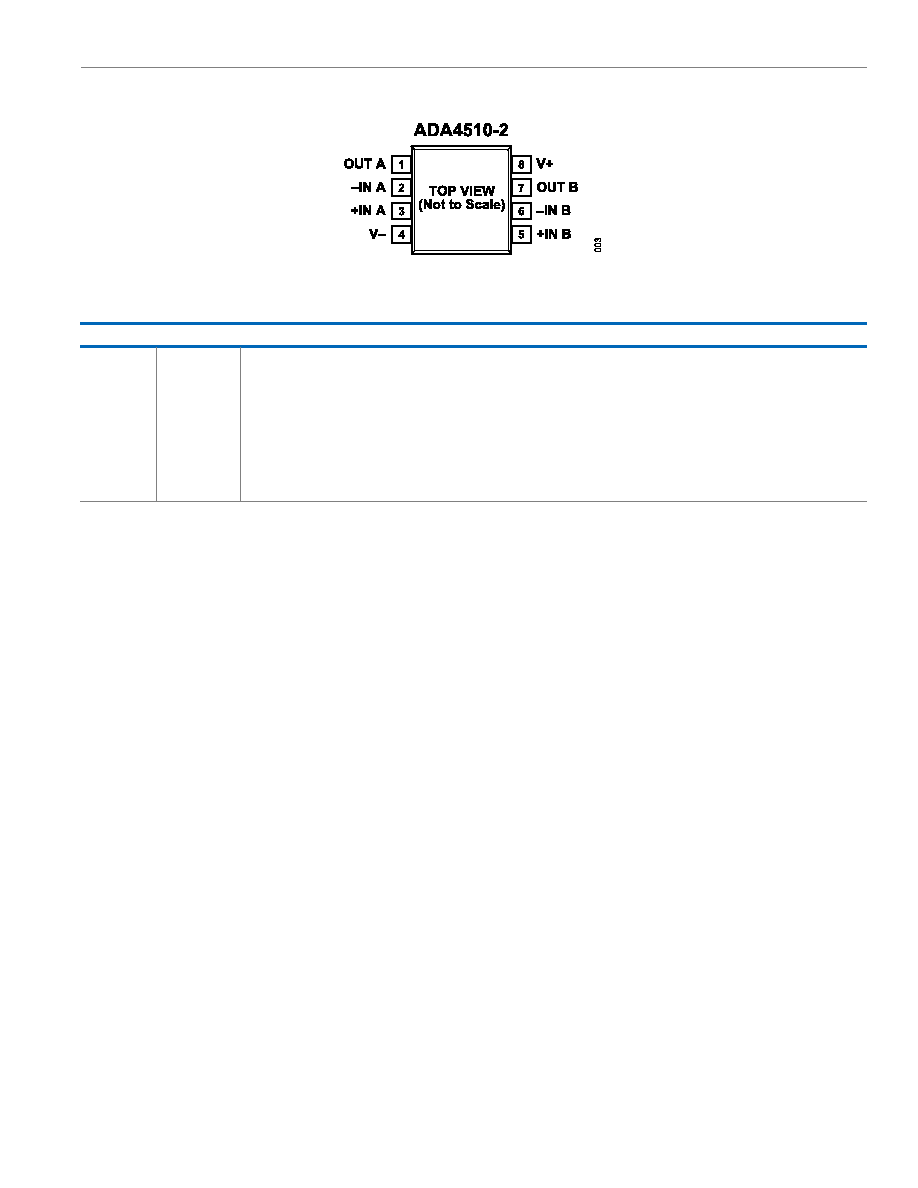

Figure 3. 8-Lead SOIC_N and 8-Lead MSOP Pin Configuration

Table 6. Pin Function Descriptions, 8-Lead SOIC_N and 8-Lead MSOP

Pin No.

Mnemonic

Description

OUT A

Output, Channel A.

−IN A

Inverting Input, Channel A.

+IN A

Noninverting Input, Channel A.

V−

Negative Supply Voltage.

+IN B

Noninverting Input, Channel B.

−IN B

Inverting Input, Channel B.

OUT B

Output, Channel B.

V+

Positive Supply Voltage.
