Data Sheet

ADA4511-2

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

analog.com

Rev. A | 7 of 28

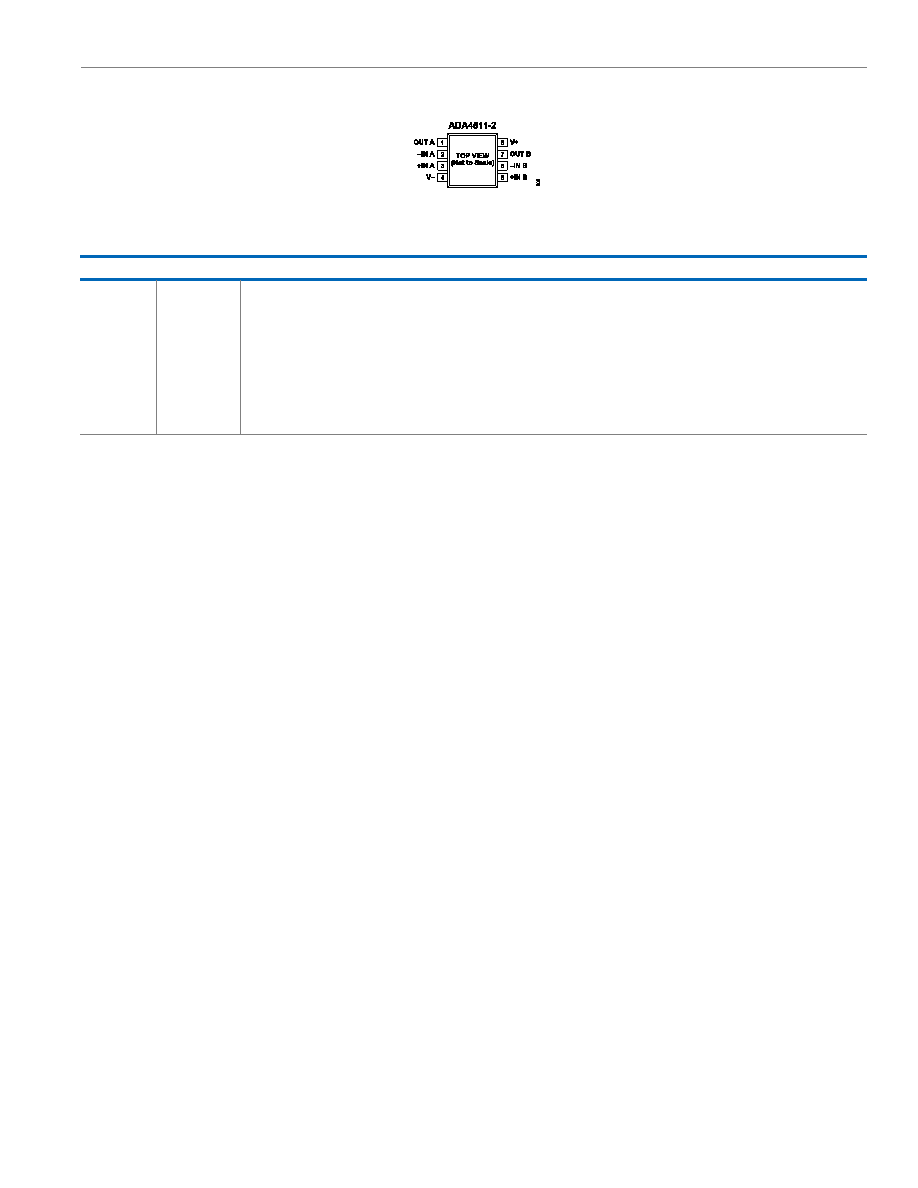

Figure 2. ADA4511-2 8-Lead SOIC_N and 8-Lead MSOP Pin Configuration

Table 5. Pin Function Descriptions, 8-Lead SOIC_N and 8-Lead MSOP

Pin Number

Mnemonic

Description

OUT A

Output, Channel A.

−IN A

Inverting Input, Channel A.

+IN A

Noninverting Input, Channel A.

V−

Negative Supply Voltage.

+IN B

Noninverting Input, Channel B.

−IN B

Inverting Input, Channel B.

OUT B

Output, Channel B.

V+

Positive Supply Voltage.
