Data Register Contents A
LATCH
CLK
1
2
3
4
5
6
7
8
A_D8
A_D7
A_D6
A_D5
A_D4
A_D3
A_D2
A_D1
1
x
x
1
2
1
2
3
3
4
DOUT 1 / DIN 2
Data Register 1
1
2
3
4
xxxxxxxxxx
DOUT 2
Data Register Contents B
Data Register 2
9
10
11
12
13
14
15
A_D8
A_D7
A_D6
A_D5
A_D4
A_D3
A_D2
xxxxxxxxxx
B_D8
B_D7
B_D6
B_D5
B_D4
B_D3
B_D2
B_D1
xxxxxxxxxxxx
16
A_D1
xxx
Data Register Contents A
LATCH
CLK
1
2
3
4
5
6
7
8
xxxxx
xxxx
A_D8
A_D7
A_D6
A_D5
A_D4
A_D3
A_D2
A_D1
1
xx
1
2
1
2
3
3
4
DOUT
Data Register
1
2
3
4
xxxxxxxxxxx
DRV8860, DRV8860A
www.ti.com
SLRS065E – SEPTEMBER 2013 – REVISED NOVEMBER 2015
8.5.1.3.3
Special command: Read Data Register
When Read-Data-Register command is issued, internal output data register content will be copied to internal shift
register and following CLK will shift this content out from DOUT pin. This provides a mechanism for system to
verify the output data is correctly programmed. It makes system more robust in noisy system.

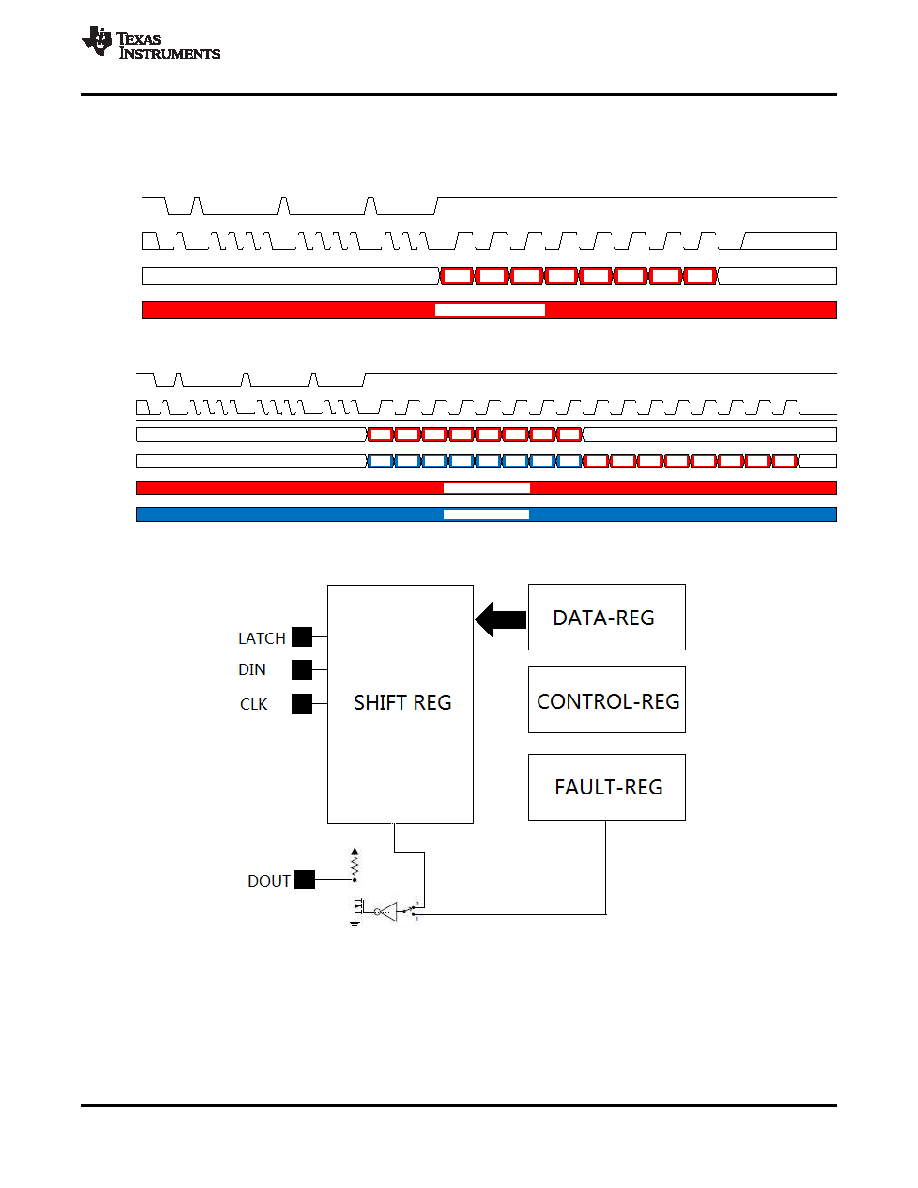

Figure 24. Reading Data Register – Single Device
Figure 25. Reading Data Register – Daisy Chain
Figure 26. Reading Data Register – Data Flow
Copyright © 2013–2015, Texas Instruments Incorporated
Submit Documentation Feedback
21
Product Folder Links: DRV8860 DRV8860A
