E3X-NH

E3X-NH

22

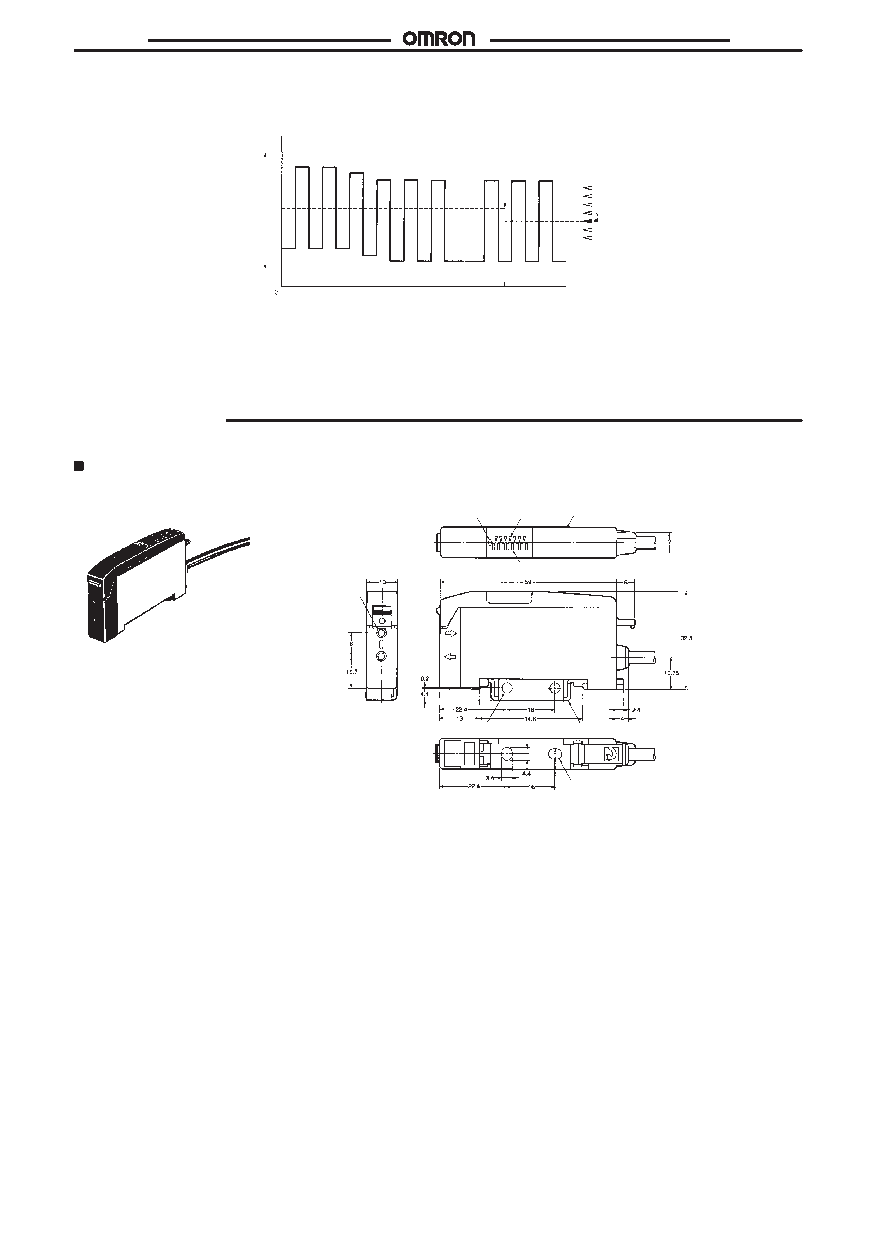

3. With sensing objects passing.

The threshold is automatically compensated within the tuning area that has been preset. When the threshold is automatically compen-

sated, the threshold indicator will be flash according to the adjusted value.

Threshold compensation

Time

*T

The threshold is compensated 1, 3, 6, 10, 15, 22, and 30 minutes after the

E3X-NH/NHB is turned on. After that, the threshold is compensated every

30-minute period.

Threshold

indicator

Large

Small

Light

*T

Note:

1. The alarm signal is output if the threshold compensation range is not within the tuning range.

2. Perform sensitivity setting again if the alarm signal is output.

Dimensions

Note:

All units are in millimeters unless otherwise indicated.

Amplifier

E3X-NH

j1

E3X-NHB11

Cord: Polyvinyl chloride-covered cord

4-mm dia. (18/0.12 dia), 4 cores

Standard length: 2 m

Weight: Approx. 100 g

Operation indicator Threshold indicators (A) (see note)

Note:

The mounting bracket can be

attached to this side.

Incident level

indicators

Two, 2.4 dia.

Two, 3.2-dia. holes

Mounting

bracket

Two, mounting holes
