29 / 38 page

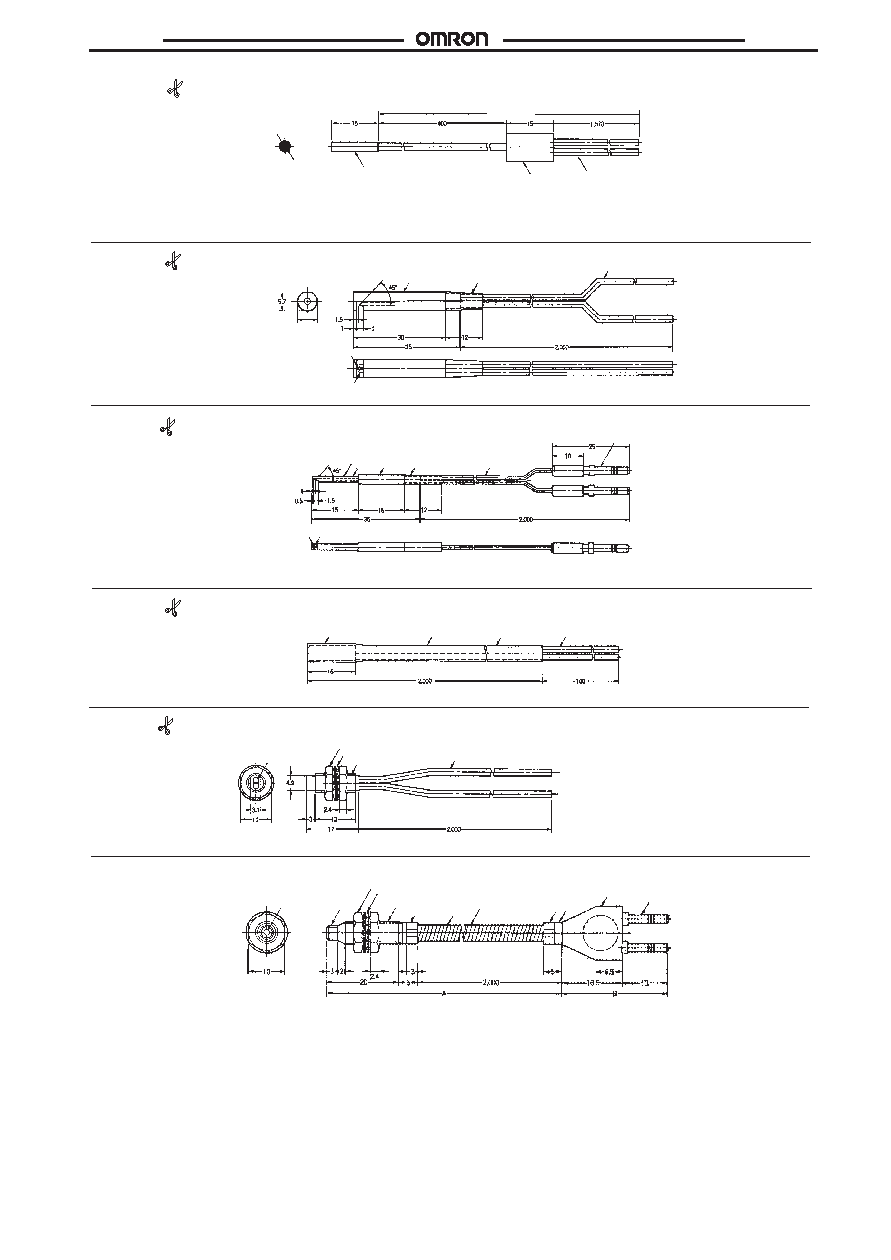

E3X-NH

E32-D32L

Sensing head, 3 dia. (stainless)

Branching box, 6 dia.

(heat-resistive ABS

black resin)

Light emission fiber

(1 dia.)

Light reception fiber

(sixteen, 0.265 dia.)

Optical fibers, two, 2.2 dia.

Note:

The fiber for the emitter is identified by a yellow dotted line.

E32-D24

Light baffle

Sensing surface

Sensing head (SUS304)

2 dia. 3 dia.

Heat-shrinking tubing Optical fibers, two, 1 dia.

Two fiber attachments (E39-F9)

E32-D14L

6 dia.

Sensing head

(stainless)

Heat-shrinking tubing

Optical fiber, two, 2.2 dia.

Sensing surface

Light baffle

E32-D12F

Sensing head, 6 dia.

Fluoride resin

5 dia.

Optical fiber, two, 2.2 dia.

E32-D51

Two, 1.5 dia.

Two toothed washers

Two hexagon clamping nuts

Sensing head,M6 x 0.75*

Optical fiber, two, 2.2 dia.

Note:

Resistant temperature is 150

°C.

Resistant temperature is 130

°C

when used continuously.

*nickel-plated brass

E32-D61

Note:

Section A resists 300

°C and section B (which is inserted to the Amplifier) resists 110°C. The operat-

ing temperature of the section to be inserted (marked with *) must be within the operating tempera-

ture range of the Amplifier.

1.4 dia.

M4 x 0.7

3.5 dia.

5 dia.

SUS303

Two hexagon clamping nuts

Two toothed washers

Sensing head

(SUS303) M6 x 0.75

SUS

flexible

tube

Hexagon

clamping

screw

Sleeve

(see note)

5 dia.
