Section 6 Bus Controller (BSC)

Rev.1.00 Jun. 07, 2006 Page 299 of 1102

REJ09B0294-0100

(7) Idle Cycle for Accessing to DRAM/SDRAM Space

In the following read cycles, when the DRAM/SDRAM space is accessed in a full access, the Tp

and Tr cycles are also counted as idle cycles.

Figures 6.96 and 6.97 show timing examples of full accesses to the DRAM/SDRAM space when

four idle cycles are inserted.

When accessing the DRAM/SDRAM space, the Ti cycles are inserted so that the sum of the

numbers of Tp (precharge), Tr (row address output), and Ti cycles satisfies the specified number

of idle cycles. The Ti cycles are inserted before the column address output cycle.

While the SDRAM space is accessed in a full access, the

CS2 signal is driven low even in an idle

cycle.

The idle cycle insertion is enabled even in a fast-page access in RAS down mode. The specified

number of idle cycles is inserted. Figure 6.98 shows a timing example of the idle cycle insertion in

RAS down mode.

Address bus

RAS

LLCAS

External space read

DRAM space read

Data bus

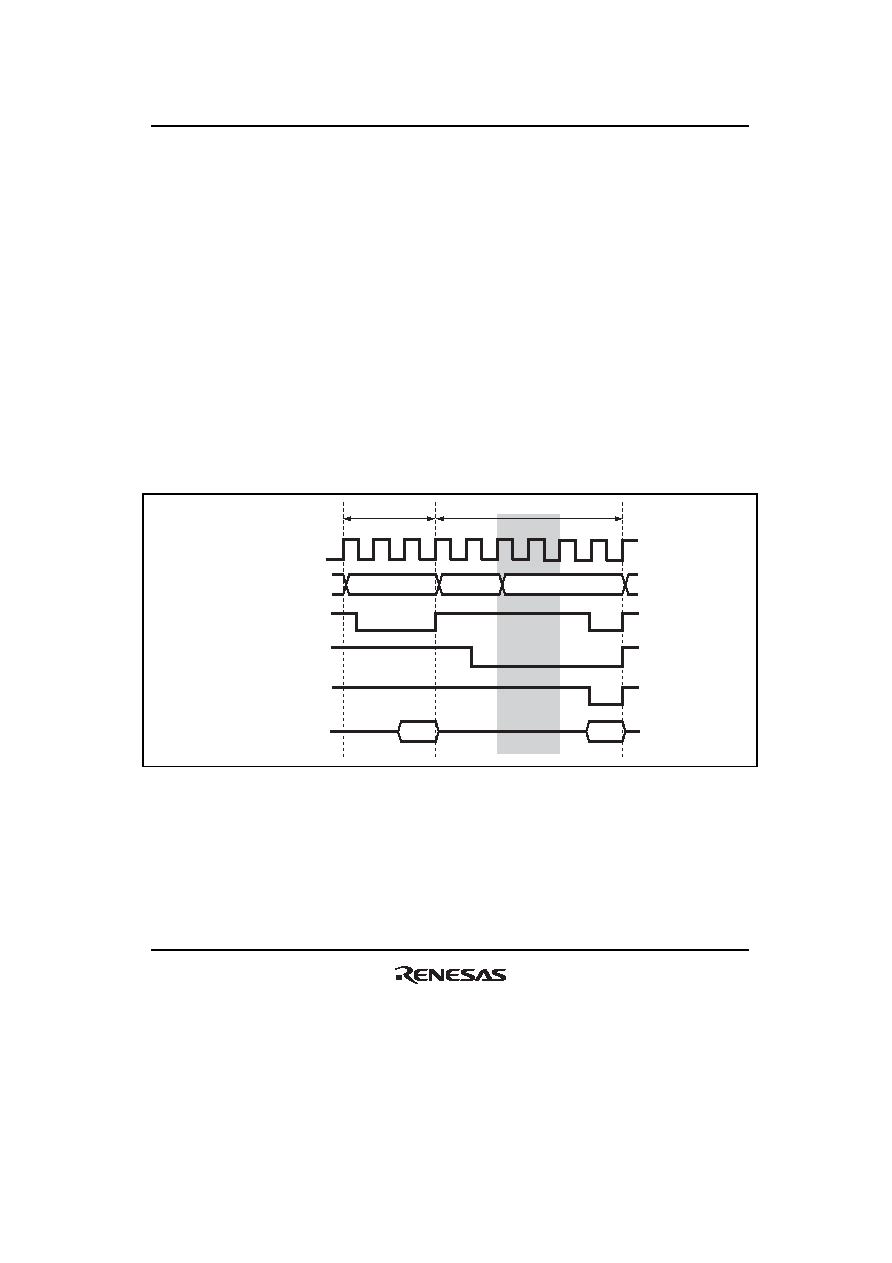

Figure 6.96 Example of DRAM Full Access after External Read (CAST = 0)
