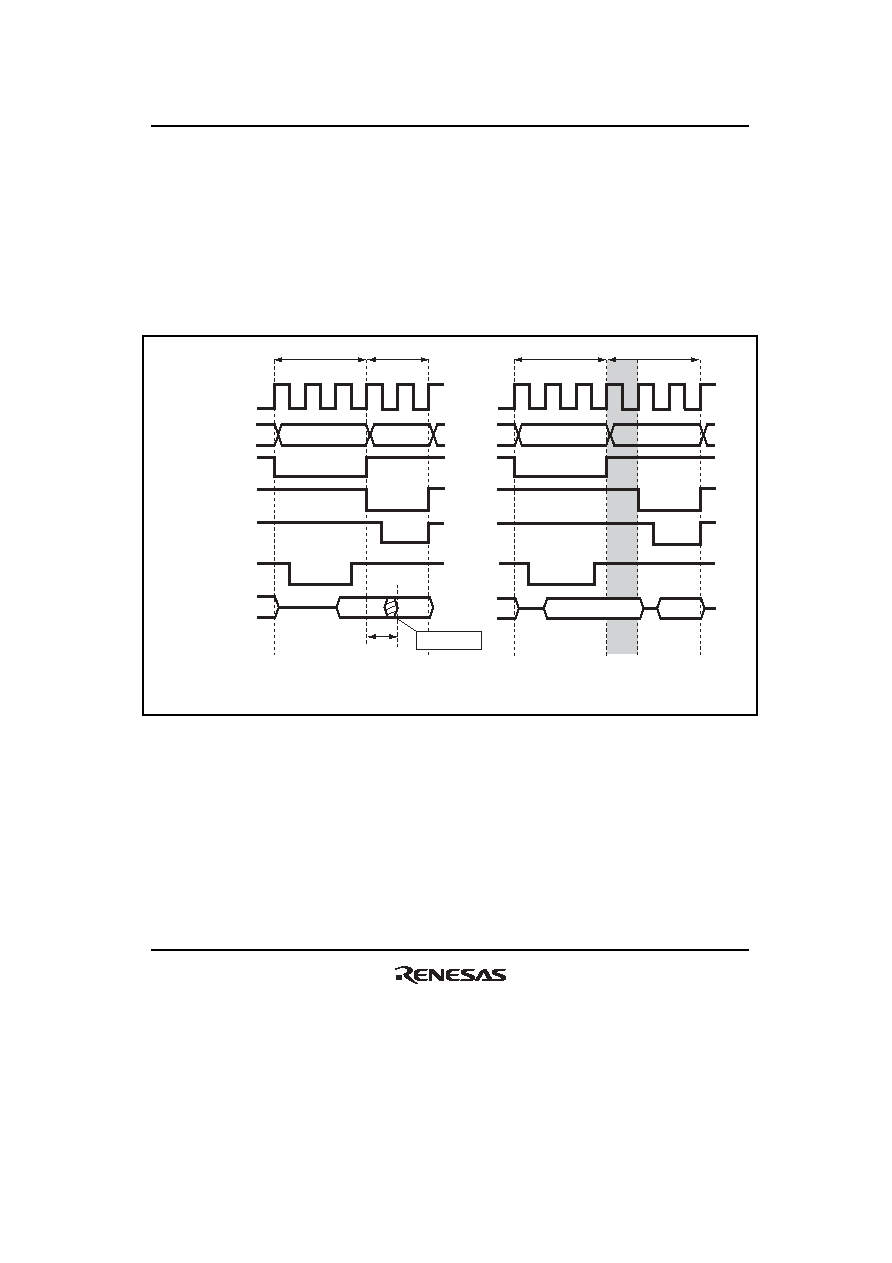

347 / 1158 page ![]() Section 6 Bus Controller (BSC) Rev.1.00 Jun. 07, 2006 Page 295 of 1102 REJ09B0294-0100 (3) Read after Write If an external read occurs after an external write while bit IDLS2 in IDLCR is set to 1, idle cycles specified by bits IDLCA1 and IDLCA0 are inserted at the start of the read cycle (n = 0 to 7). Figure 6.92 shows an example of the operation in this case. In this example, bus cycle A is a CPU write cycle and bus cycle B is a read cycle from the SRAM. In (a), an idle cycle is not inserted, and a conflict occurs in bus cycle B between the CPU write data and read data from an SRAM device. In (b), an idle cycle is inserted, and a data conflict is prevented. Output floating time is long. Data conflict Bus cycle A Bus cycle B B φ Address bus CS (area A) CS (area B) RD LLWR Data bus T 1 T 2 T 3 T 1 T 2 Bus cycle A Bus cycle B T 1 T 2 T 3 T 1 T i T 2 (a) No idle cycle inserted (IDLS2 = 0) (b) Idle cycle inserted (IDLS2 = 1, IDLCA1 = 0, IDLCA0 = 0) Figure 6.92 Example of Idle Cycle Operation (Read after Write) |
|
