Section 6 Bus Controller (BSC)
Rev.1.00 Jun. 07, 2006 Page 309 of 1102
REJ09B0294-0100
6.15
Write Data Buffer Function
6.15.1
Write Data Buffer Function for External Data Bus
This LSI has a write data buffer function for the external data bus. Using the write data buffer
function enables internal accesses in parallel with external writes or DMAC single address
transfers. The write data buffer function is made available by setting the WDBE bit to 1 in BCR1.

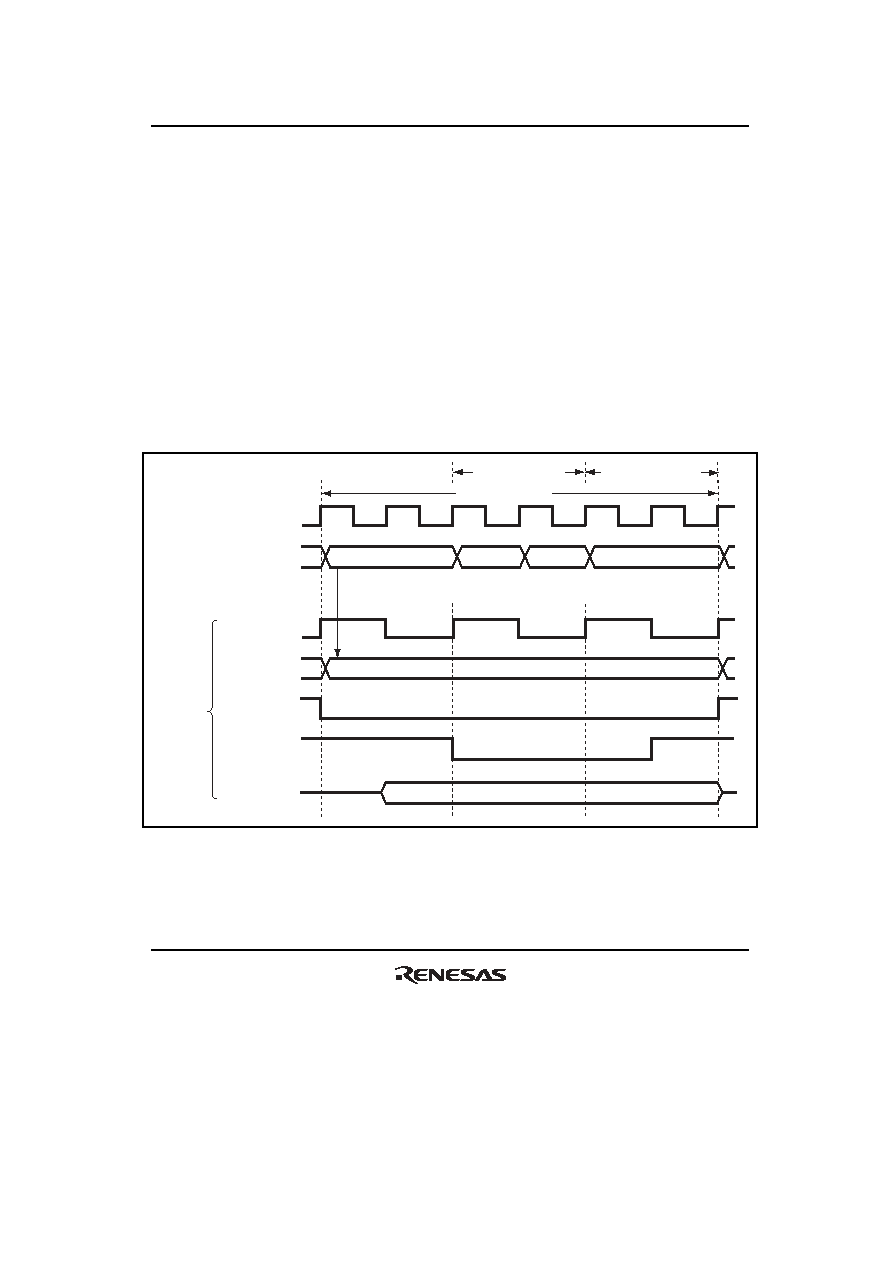

Figure 6.101 shows an example of the timing when the write data buffer function is used. When
this function is used, if an external address space write or a DMAC single address transfer
continues for two cycles or longer, and there is an internal access next, an external write only is
executed in the first two cycles. However, from the next cycle onward, internal accesses (on-chip
memory or internal I/O register read/write) and the external address space write rather than
waiting until it ends are executed in parallel.
On-chip memory read
Peripheral module read
Peripheral module address
External write cycle
On-chip
memory 2
On-chip
memory 1
External address
Internal
address bus
B
φ
Address bus
CSn
LHWR, LLWR
D15 to D0
Write to
external
space
T
1
T
2
T
3
I
φ
Figure 6.101 Example of Timing when Write Data Buffer Function is Used
