Data Sheet

ADP199

Rev. 0 | Page 9 of 16

CH2 1V

CH1 2V BW

CH3 200mA Ω

M4µs

A CH1

1.28V

T 10%

OUTPUT VOLTAGE

VEN

INPUT CURRENT

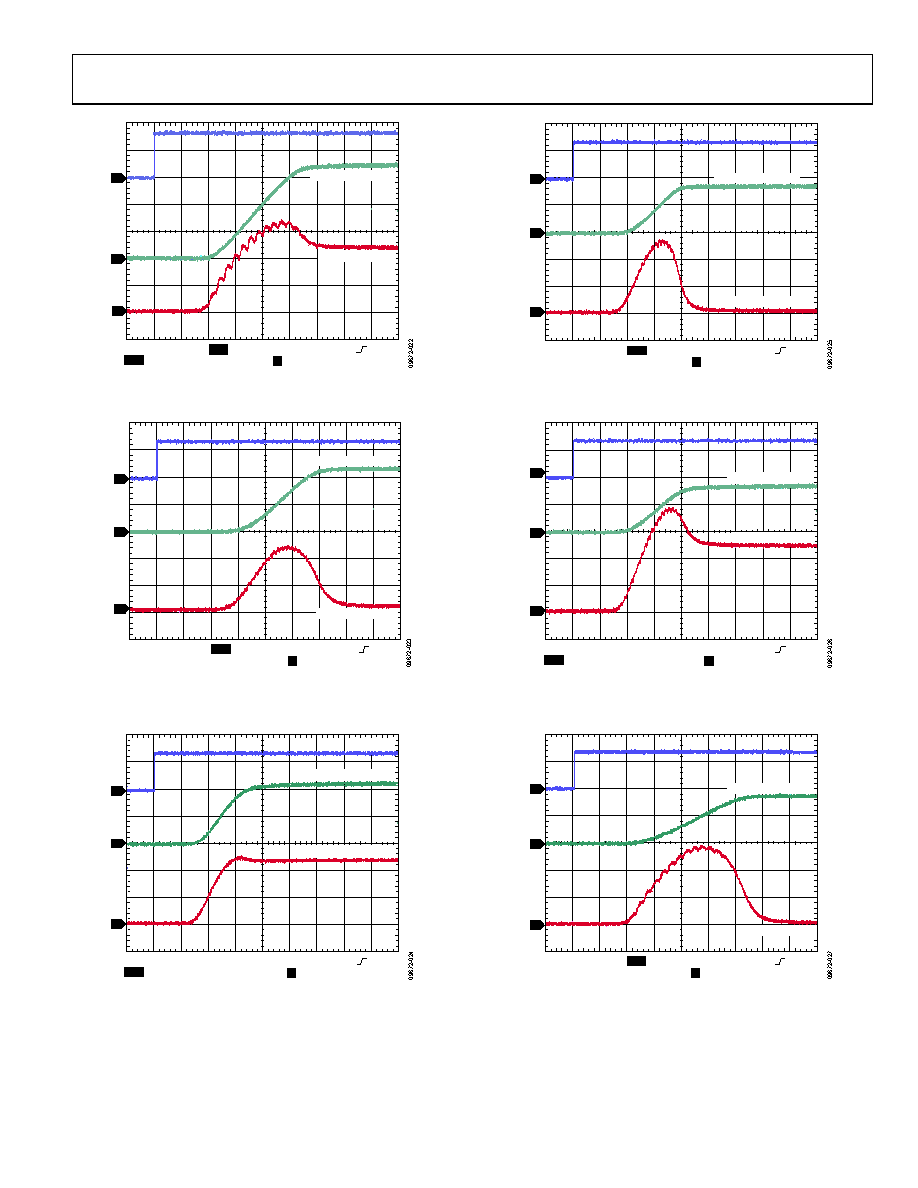

Figure 22. Typical Turn-On Time and Inrush Current,

VIN = 3.6 V, 500 mA Load, COUT = 1 μF

CH2 500mV

CH1 1V BW

CH3 100mA Ω

M10µs

A CH1

700mV

T 10.4%

OUTPUT VOLTAGE

VEN

INPUT CURRENT

Figure 23. Typical Turn-On Time and Inrush Current,

VIN = 1.2 V, 10 mA Load, COUT = 4.7 μF

CH2 500mV

CH1 1V BW

CH3 200mA Ω

M20µs

A CH1

700V

T 10.4%

OUTPUT VOLTAGE

VEN

INPUT CURRENT

Figure 24. Typical Turn-On Time and Inrush Current,

VIN = 1.2 V, 500 mA Load, COUT = 4.7 μF

CH2 1V

CH1 1V BW

CH3 200mA Ω

M10µs

A CH1

700mV

T 10.4%

VEN

OUTPUT VOLTAGE

INPUT CURRENT

Figure 25. Typical Turn-On Time and Inrush Current,

VIN = 1.8 V, 10 mA Load, COUT = 4.7 μF

CH2 1V

CH1 1V BW

CH3 200mA Ω

M10µs

A CH1

700mV

T 10.4%

OUTPUT VOLTAGE

VEN

INPUT CURRENT

Figure 26. Typical Turn-On Time and Inrush Current,

VIN = 1.8 V, 500 mA Load, COUT = 4.7 μF

CH2 2V

CH1 2V BW

CH3 500mA Ω

M4µs

A CH1

720mV

T 10.4%

OUTPUT VOLTAGE

VEN

INPUT CURRENT

Figure 27. Typical Turn-On Time and Inrush Current,

VIN = 3.6 V, 10 mA Load, COUT = 4.7 μF
