Data Sheet
ADP199
Rev. 0 | Page 13 of 16
CH2 500mV
CH1 1V
BW
BW
BW
CH3 20mA Ω
M10µs
A CH1
100mV
T 10%
1
3
2
VEN
OUTPUT VOLTAGE
INPUT CURRENT

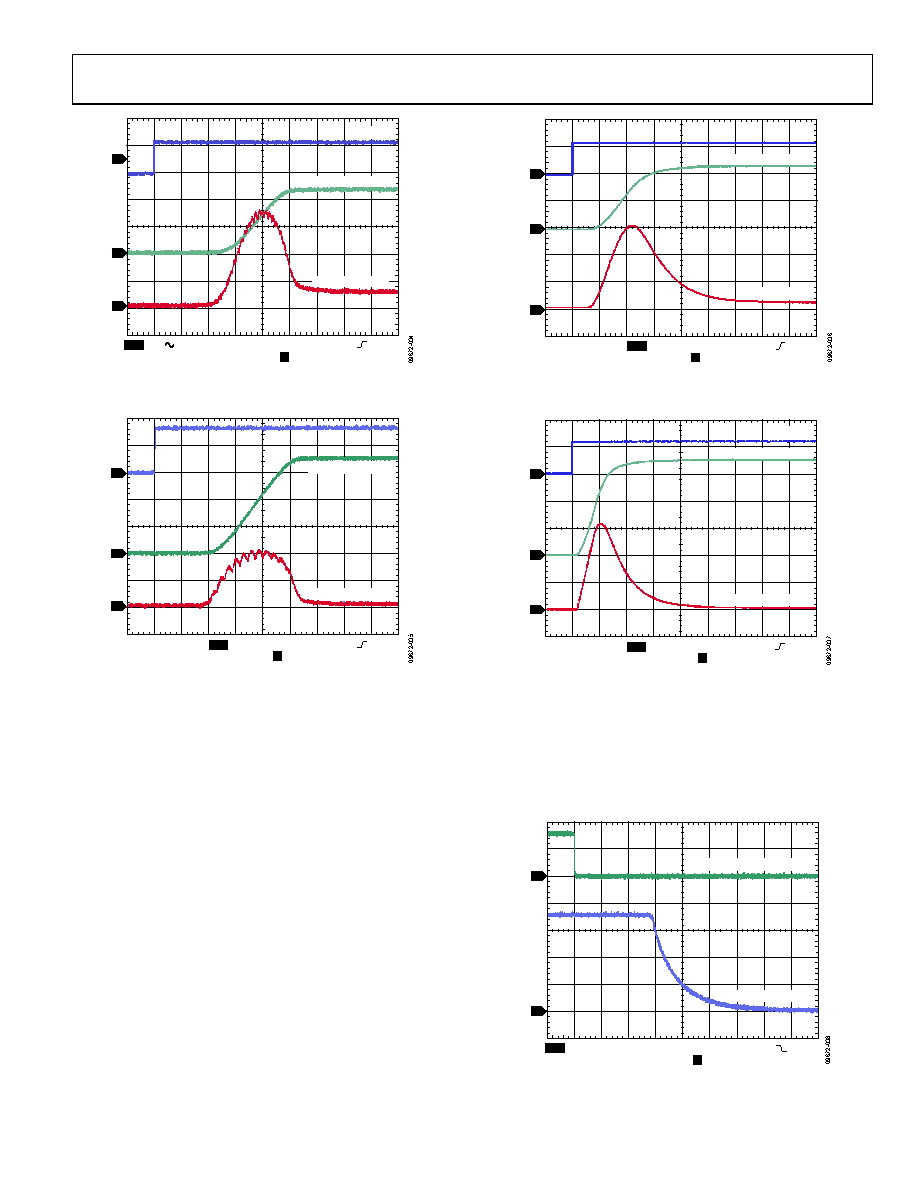

Figure 34. Typical Turn-On Delay Time with VIN = 1.2 V,
ILOAD = 10 mA, CLOAD = 1 μF
CH2 1V
CH1 2V BW
BW
BW
CH3 200mA Ω
M4µs
A CH1
1.28mV
T 10%
1
3
2
VEN
OUTPUT VOLTAGE
INPUT CURRENT
Figure 35. Typical Turn-On Delay Time with VIN = 3.6 V,
ILOAD = 10 mA, CLOAD = 1 μF
The rise time is defined as the time it takes the output voltage to
rise from 10% to 90% of VOUT reaching its final value. It is depen-
dent on the rise time of the internal charge pum
p.
For very large values of output capacitance, the RC time constant
(where C is the load capacitance (CLOAD) and R is the RDSON||RLOAD)
can become a factor in the rise time of the output voltage. Because
RDSON is much smaller than RLOAD, an adequate approximation
for RC is RDSON × CLOAD. An input or load capacitor is not required
for the ADP199 although capacitors can be used to suppress
noise on the board.
CH2 500mV
CH1 1V BW
BW
BW
CH3 500mA Ω
M40µs
A CH1
700mV
T 10.4%
1
3
2
VEN
OUTPUT VOLTAGE
INPUT CURRENT
Figure 36. Typical Rise Time and Inrush Current,
CLOAD = 100 μF, VIN = 1.2 V, ILOAD = 100 mA
CH2 1V
CH1 2V BW
BW
BW
CH3 2A Ω
M40µs
A CH1
720mV
T 10.4%
1
3
2
VEN
OUTPUT VOLTAGE
INPUT CURRENT
Figure 37. Typical Rise Time and Inrush Current,
CLOAD = 100 μF, VIN = 3.6 V, ILOAD =100 mA
The turn-off time is defined as the time it takes for the output
voltage to fall from 90% to 10% of VOUT reaching its final value.
The turn-off time is also dependent on the RC time constant of
the output capacitance and load resistance. Figure 38 shows the
typical turn-off time with VIN = 1.8 V, COUT = 1 μF, and RLOAD =
18 Ω.
CH2 1V
CH1 500mV
BW
BW
M20µs
A CH2
660mV
T 10.2%
1
2
ENABLE VOLTAGE VEN
INPUT CURRENT
Figure 38. Typical Turn-Off Time
