SSM2518
Data Sheet
Rev. A | Page 34 of 48

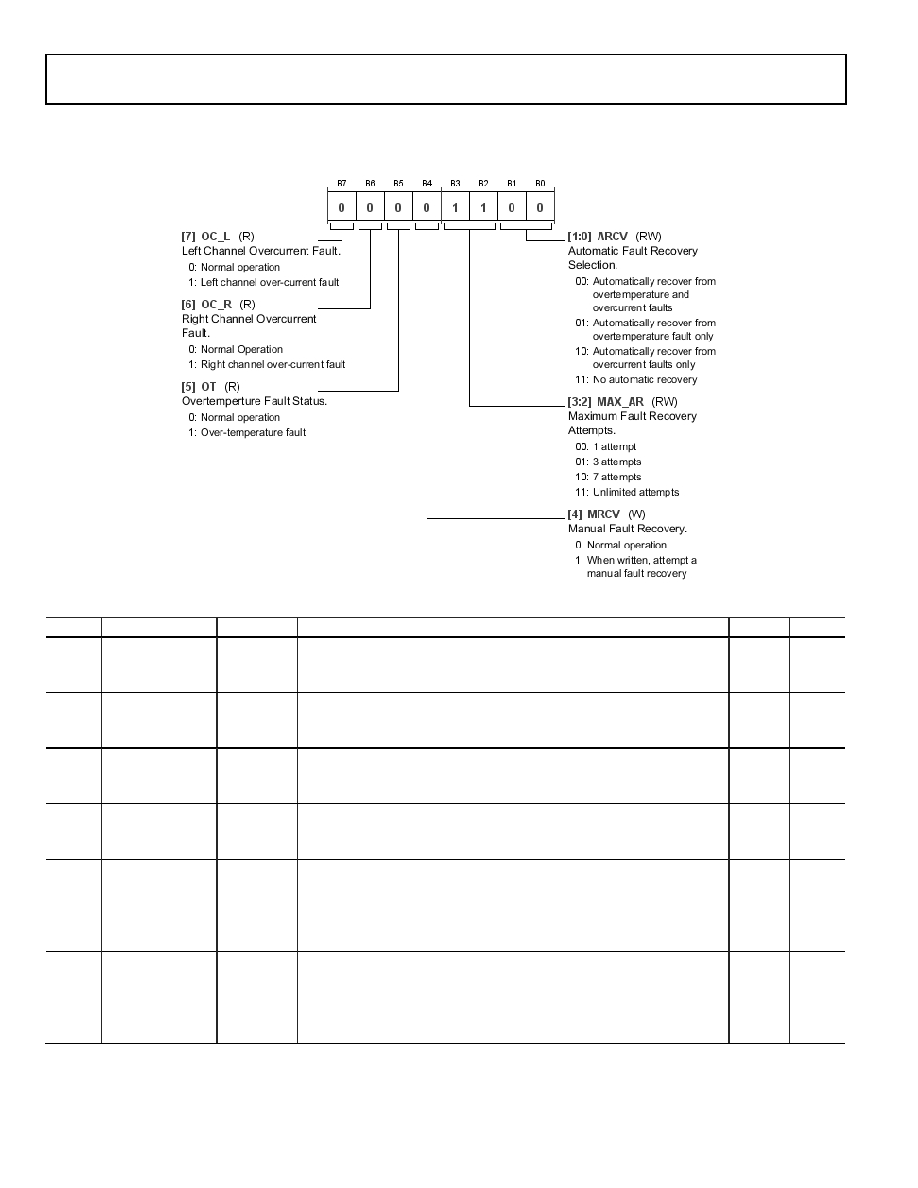

FAULT CONTROL 1 REGISTER
Address: 0x08, Reset: 0x0C, Name: Fault_Control_1
Table 21. Bit Descriptions for Fault_Control_1
Bits
Bit Name
Settings
Description
Reset
Access
7
OC_L
Left Channel Overcurrent Fault. Read only.
0x0
R
0
Normal operation
1
Left channel overcurrent fault
6
OC_R
Right Channel Overcurrent Fault. Read only.
0x0
R
0
Normal operation
1
Right channel overcurrent fault
5
OT
Overtemperature Fault Status. Read only.
0x0
R
0
Normal operation
1
Overtemperature fault
4
MRCV
Manual Fault Recovery. Available only when ARCV = 11. Write only.
0x0
W
0
Normal operation
1
When written, attempt a manual fault recovery
[3:2]
MAX_AR
Maximum Fault Recovery Attempts.
0x3
RW
00
One attempt
01
Three attempts
10
Seven attempts
11
Unlimited attempts
[1:0]
ARCV
Automatic Fault Recovery Selection.
0x0
RW
00
Automatically recover from overtemperature and overcurrent faults
01
Automatically recover from overtemperature fault only
10
Automatically recover from overcurrent faults only
11
No automatic recovery
