Phihong USA Corporation • 47800 Fremont Blvd. Fremont, CA 94538 • Tel: 1.510.445.0100 Fax: 1.510.445.1678
www.phihong.com or www.midspans.com
-40-

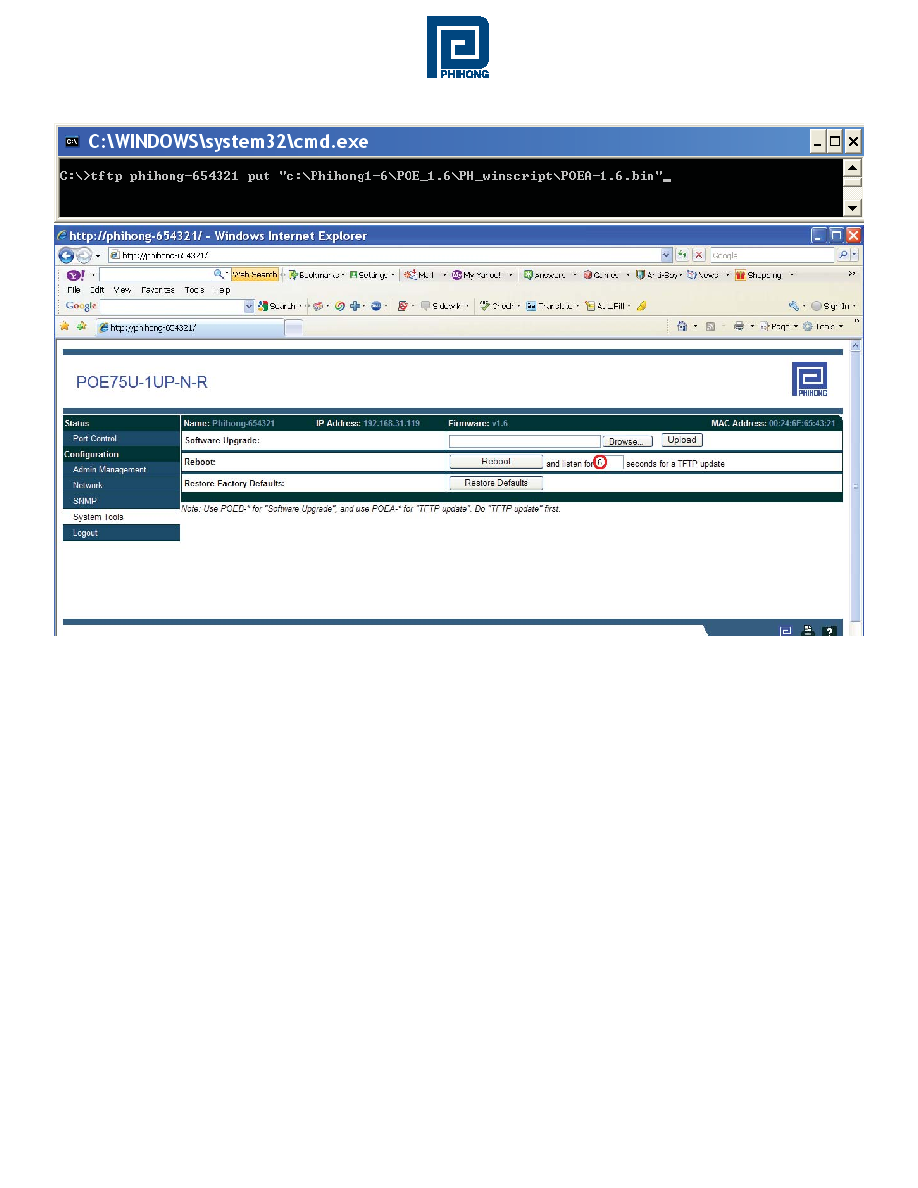

Figure 32:TFTP Uploading using Application Entry Mode
5. Reboot the midspan by clicking the Reboot button in the web controller (or clicking the first icon
on the upper left hand corner in Set – xxxxxx.0 window to validate the Set value for the SNMP
interface). Then quickly switch to the Command Prompt Console to execute TFTP.
6. If successful, the TFTP client will indicate how long the transfer took as well as the transfer rate.
7. After a successful write, the boot loader will quit after a few seconds and the POE unit will start to
execute the new application that was just loaded.
If the boot loading process is interrupted due to a network failure or user cancellation, the boot loading
may be resumed by simply retrying the TFTP command, provided the power is not cycled. However,
if the boot loading operation is interrupted due to power failure, the boot loading must be recovered
using the following TFTP Power-On Reset Entry Mode.
