Phihong USA Corporation • 47800 Fremont Blvd. Fremont, CA 94538 • Tel: 1.510.445.0100 Fax: 1.510.445.1678

www.phihong.com or www.midspans.com

-18-

Midspan Monitoring and Control - HTTP Protocol

Use Cat5e cables or better to connect both PC and Midspans to the network as follows:

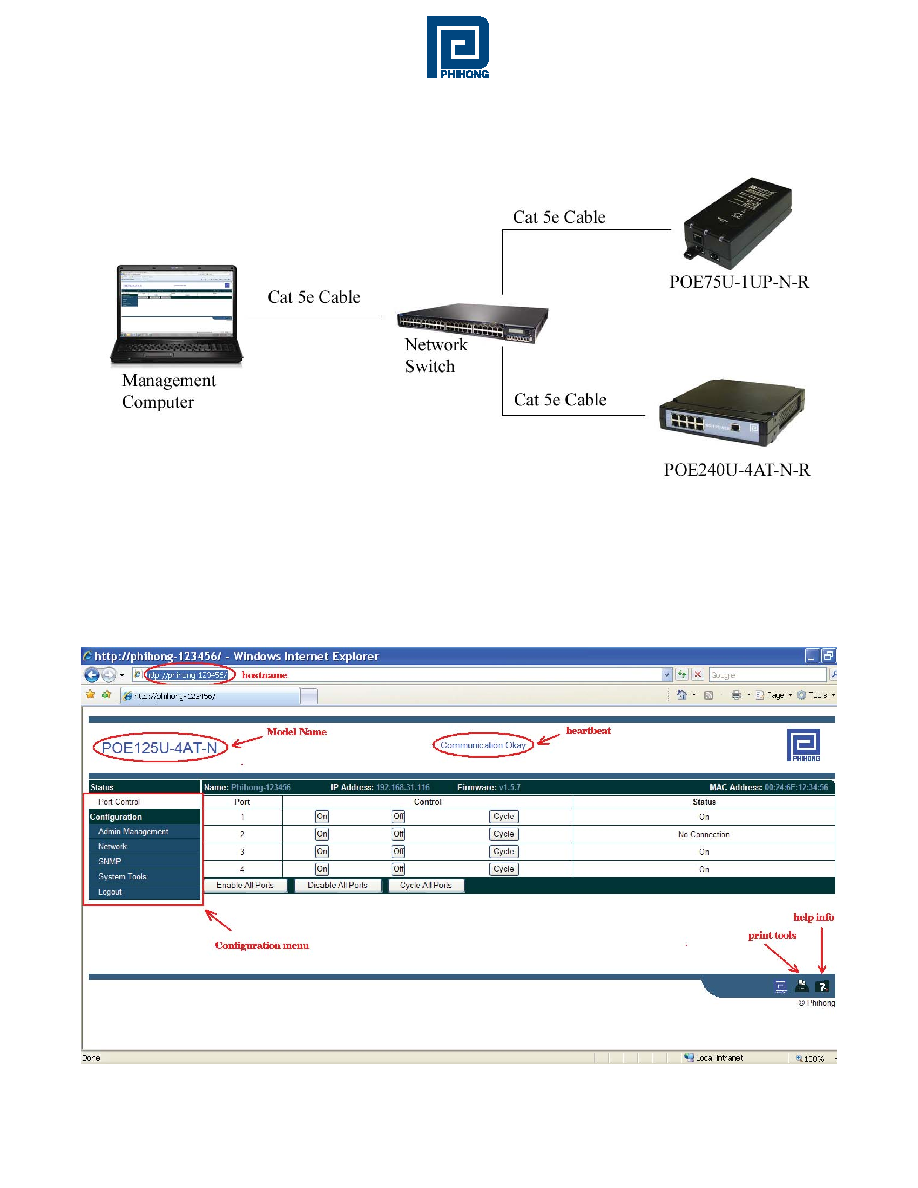

Figure 18: Management Set-up Diagram

3.1

Port Control Webpage

Enter the hostname in the address bar of your internet browser (The default value of hostname is

phihong-xxxxxx, where xxxxxx is the last 6 letters of the Midspan’s MAC address found on the

midspan’s label), then enter the username and password in the login screen. The default username

and password are both “admin”. Users should note that when creating their new username and

password both are case sensitive. The Port Control Webpage will be displayed as follows:

Figure 19: Port Control Webpage
