REV. 0
AD6623
–7–

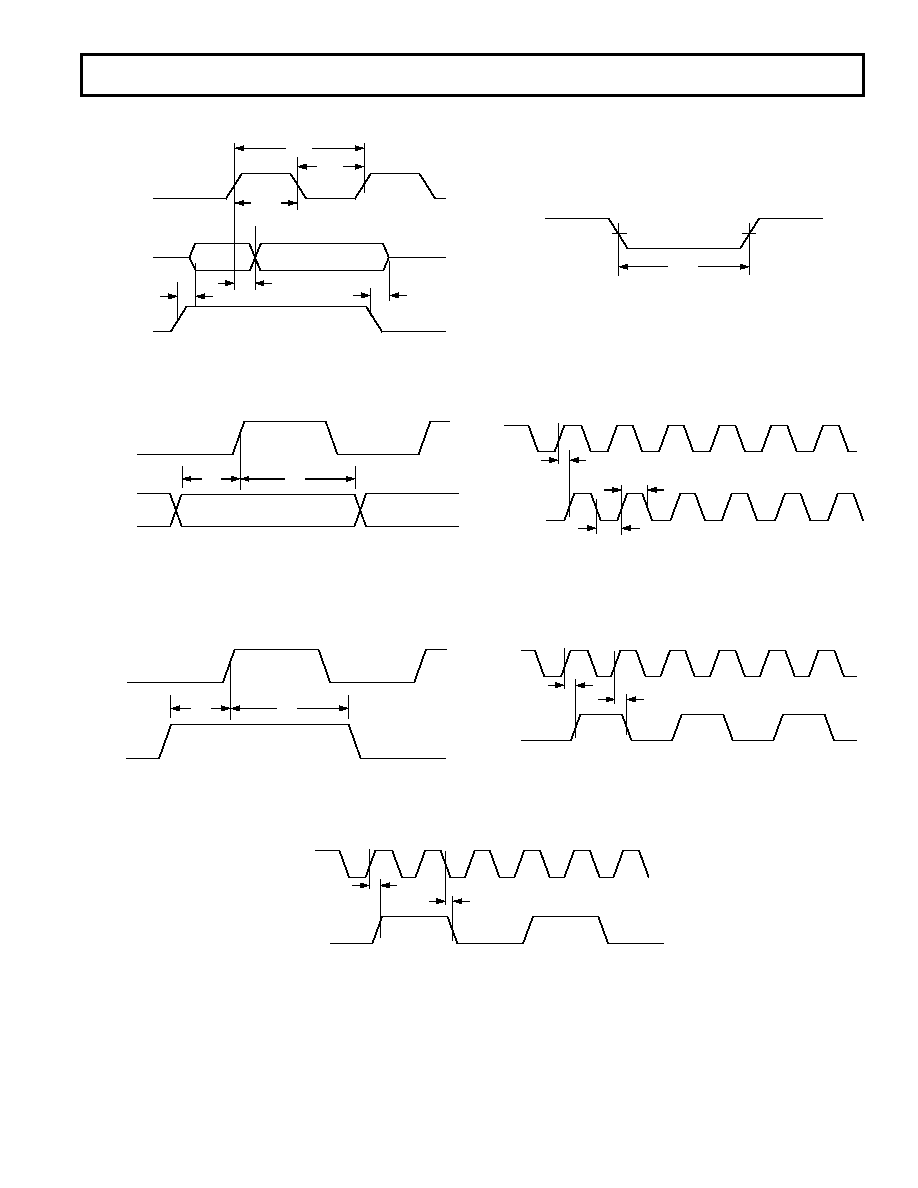

TIMING DIAGRAMS
CLK
tDO
tCLK
tCLKL
tCLKH
tZO
tZO
OEN
INOUT[17:0]
OUT[17:0]
QOUT
Figure 1. Parallel Output Switching Characteristics
CLK
tSI
tHI
INOUT[17:0]
QIN
Figure 2. Wideband Input Timing
CLK
SYNC
tSS
tHS
Figure 3. SYNC Timing Inputs
RESET
tRESL
Figure 4.
RESET Timing Requirements
CLK
SCLK
tDSCLKH
tSCLKH
tSCLKL
Figure 5. SCLK Switching Characteristics (Divide by 1)
CLK
SCLK
tDSCLKH
tDSCLKL
Figure 6. SCLK Switching Characteristic (Divide by 2 or
EVEN Integer)
CLK
SCLK
tDSCLKH
tDSCLKLL
Figure 7. SCLK Switching Characteristic (Divide by 3 or ODD Integer)
