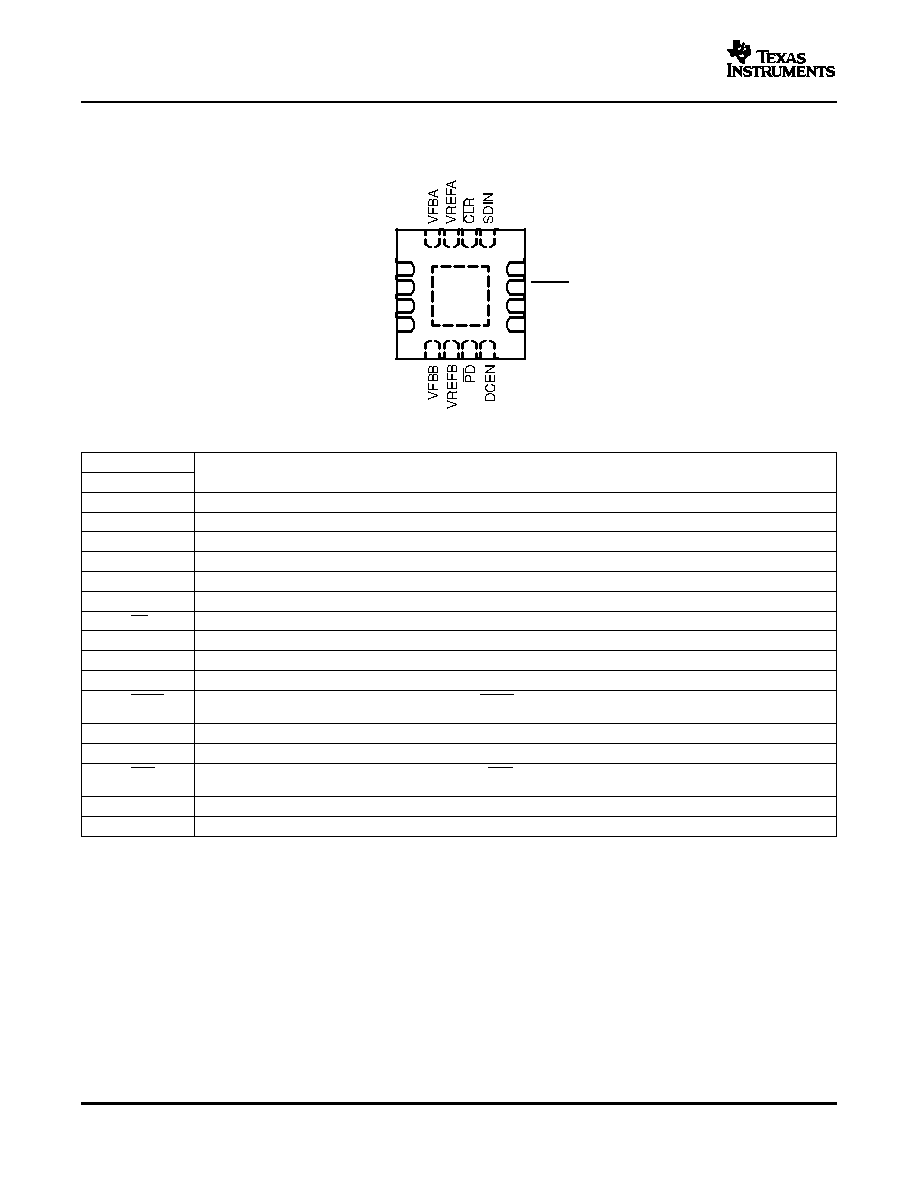

PIN DESCRIPTION

1

2

3

4

12

11

10

9

SCLK

SYNC

SDO

GND

16 15 14 13

5

6

7

8

DAC7553

SLAS477 – SEPTEMBER 2005

RGT PACKAGE

(TOP VIEW)

Terminal Functions

TERMINAL

DESCRIPTION

NO.

NAME

1

VOUTA

Analog output voltage from DAC A

2

VDD

Analog voltage supply input

3

GND

Ground

4

VOUTB

Analog output voltage from DAC B

5

VFBB

DAC B amplifier sense input.

6

VREFB

Positive reference voltage input for DAC B

7

PD

Power down

8

DCEN

Daisy-chain enable

9

SDO

Serial data output

10

IOVDD

I/O voltage supply input

11

SYNC

Frame synchronization input. The falling edge of the SYNC pulse indicates the start of a serial data frame shifted out

to the DAC7553

12

SCLK

Serial clock input

13

SDIN

Serial data input

14

CLR

Asynchronous input to clear the DAC registers. When CLR is low, the DAC registers are set to 000H and the output to

midscale voltage.

15

VREFA

Positive reference voltage input for DAC A

16

VFBA

DAC A amplifier sense input.
