Time - (400 nS/Div)
Trigger Pulse
Time - (400 nS/Div)
Trigger Pulse
−100
−90
−80
−70
−60
−50
−40
0
1
2
3
4
5
6
7
8
9
10
VDD = 5 V, VREF = 4.096 V
−1 dB FSR Digital Input, Fs = 1 Msps
Measurement Bandwidth = 20 kHz
2nd Harmonic
3rd Harmonic
Output Frequency (Tone) − kHz
THD
DAC7553
SLAS477 – SEPTEMBER 2005

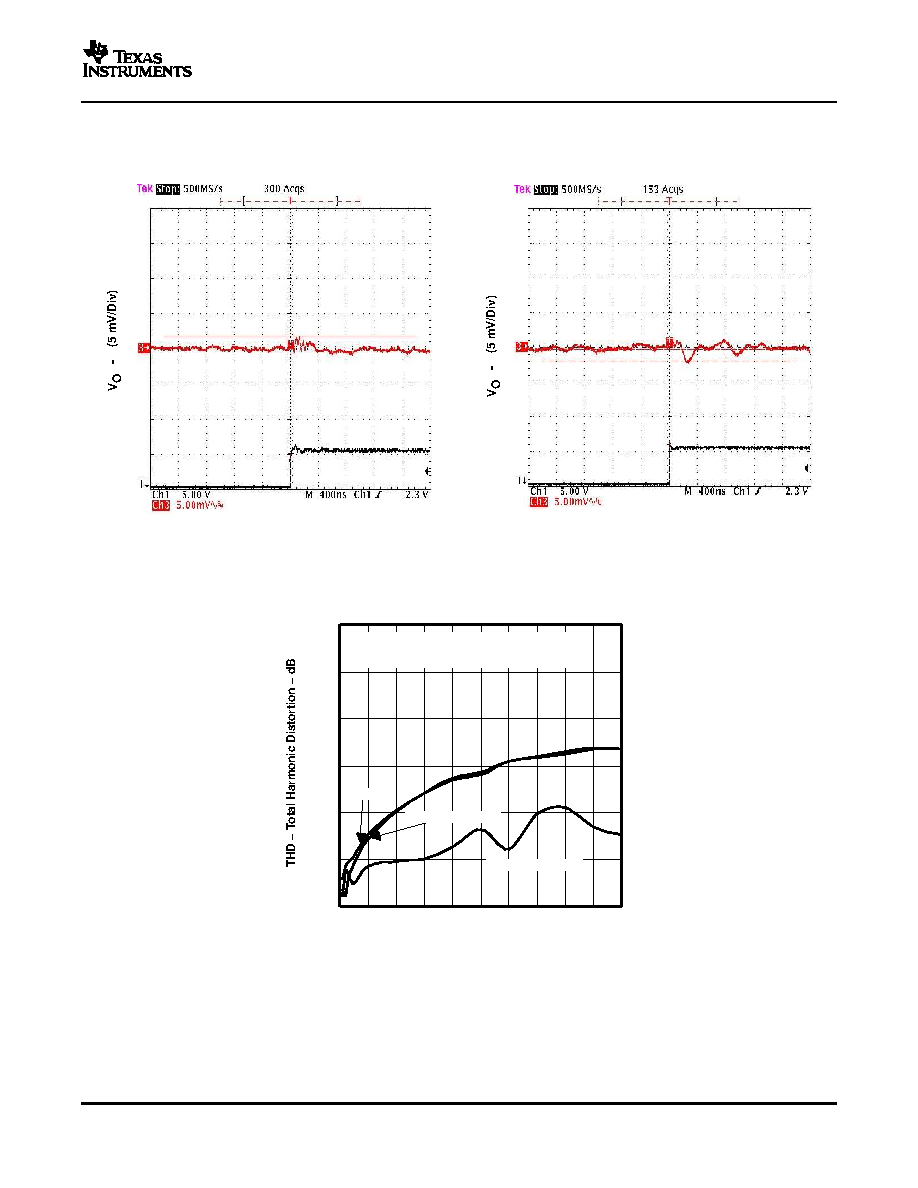

TYPICAL CHARACTERISTICS (continued)
DIGITAL FEEDTHROUGH ERROR
CHANNEL-TO-CHANNEL CROSSTALK
FOR A FULL-SCALE SWING
Figure 26.
Figure 27.
TOTAL HARMONIC DISTORTION
vs
OUTPUT FREQUENCY
Figure 28.
13
